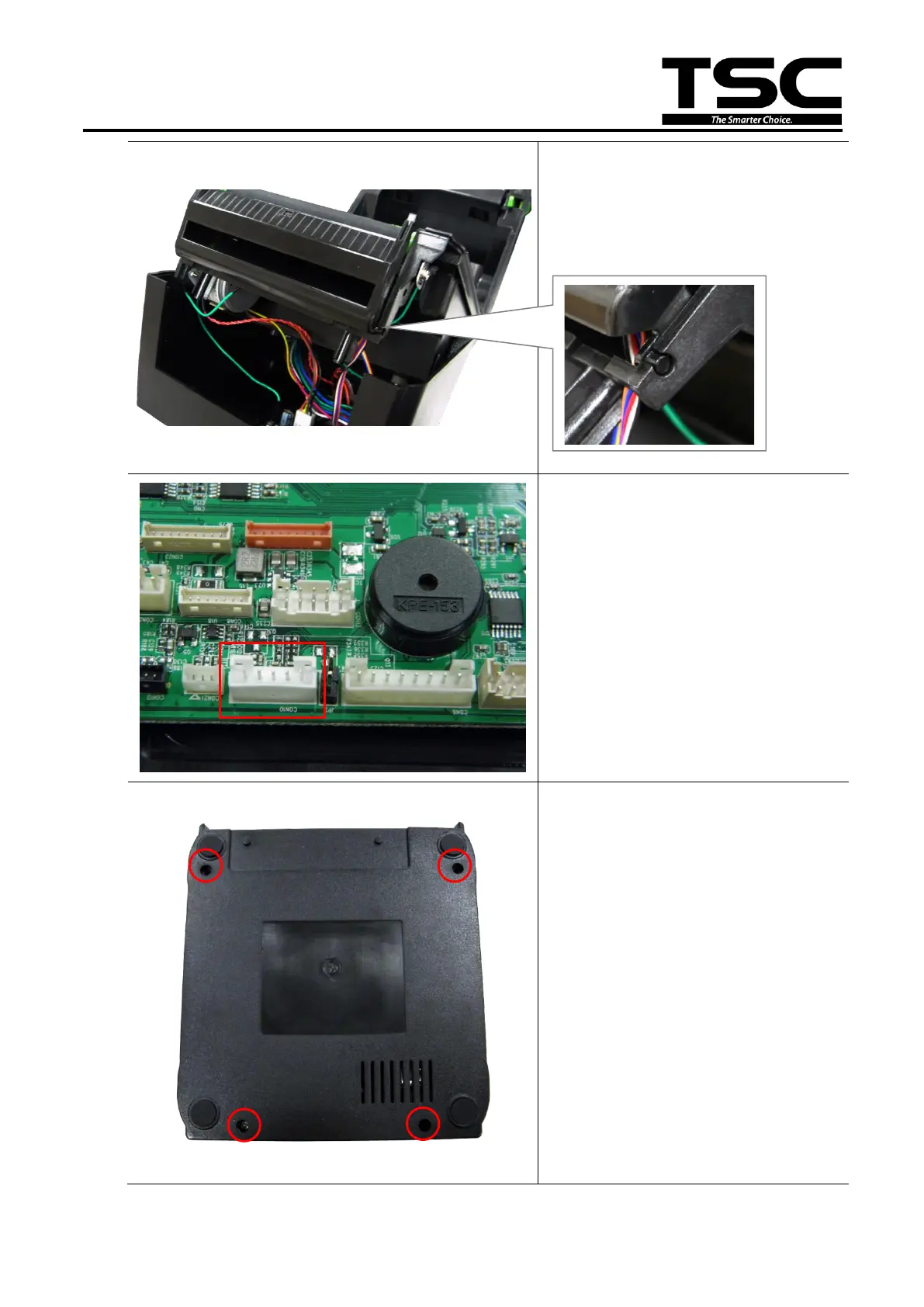

5. Embed the tenons into the
both sides mortise of lower
inner cover and close the
peel-off cover.
6. Connect the peel-off module
harness connector to the
5-pin socket on the printer
main board as shown.
7. Fasten 4 screws back on the
printer lower cover.
