3.4 Replacing the Stepping Motor Module
1. Please refer to the section 3.3 to remove the lower cover.

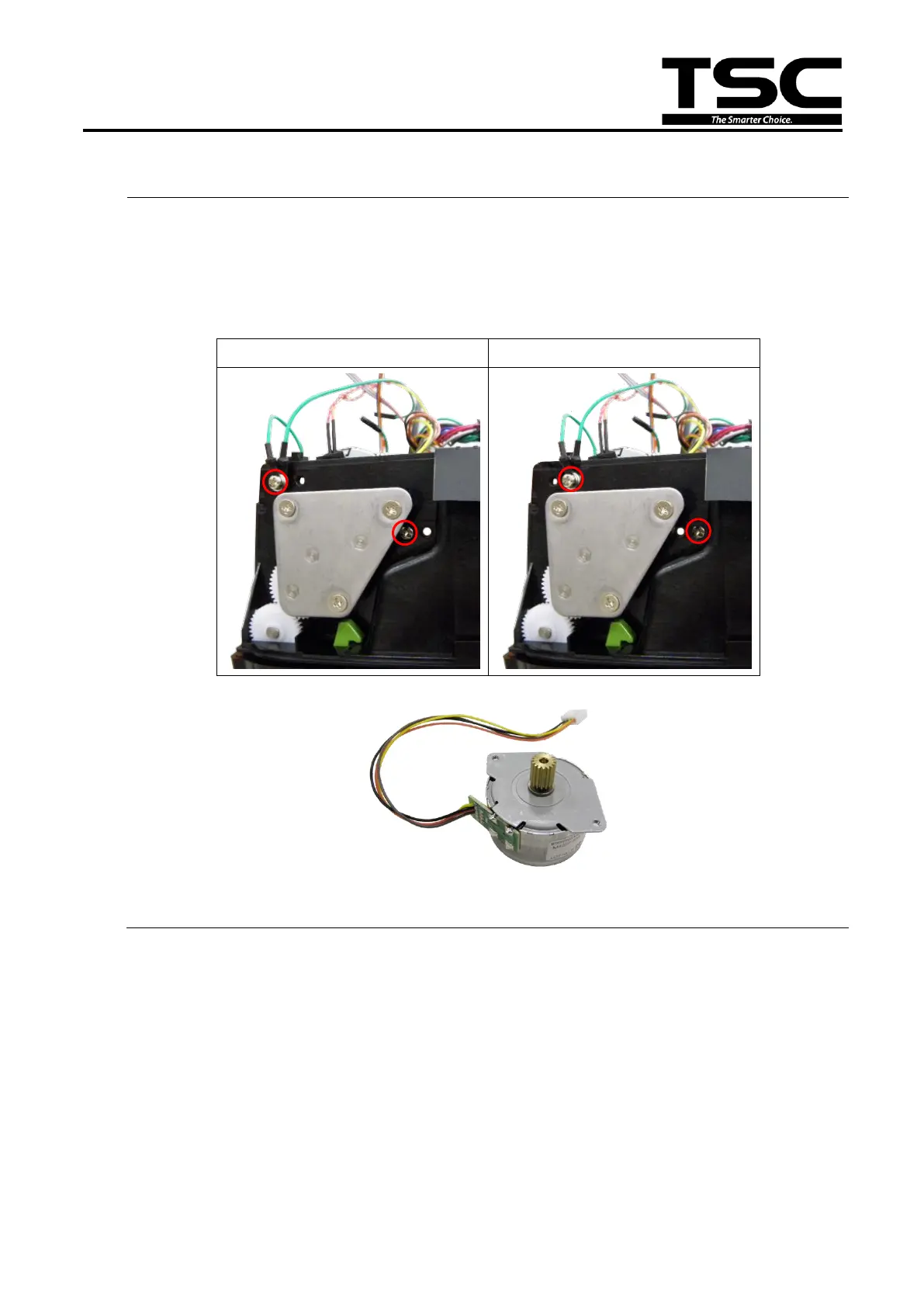

2. Remove two screws as shown to replace the stepping motor. Please note that the
screwed positions of 203 dpi and 300 dpi are different. (The gear driver system of
203 dpi and 300 dpi is different.)
DA210/ DA220 (203 dpi)
DA310/ DA320 (300 dpi)
3. Reassemble the parts in the reverse procedure.
