3.7 Replacing the Media Holder Base Assembly
1. Please refer to the section 3.6 to remove the lower cover and black mylar.

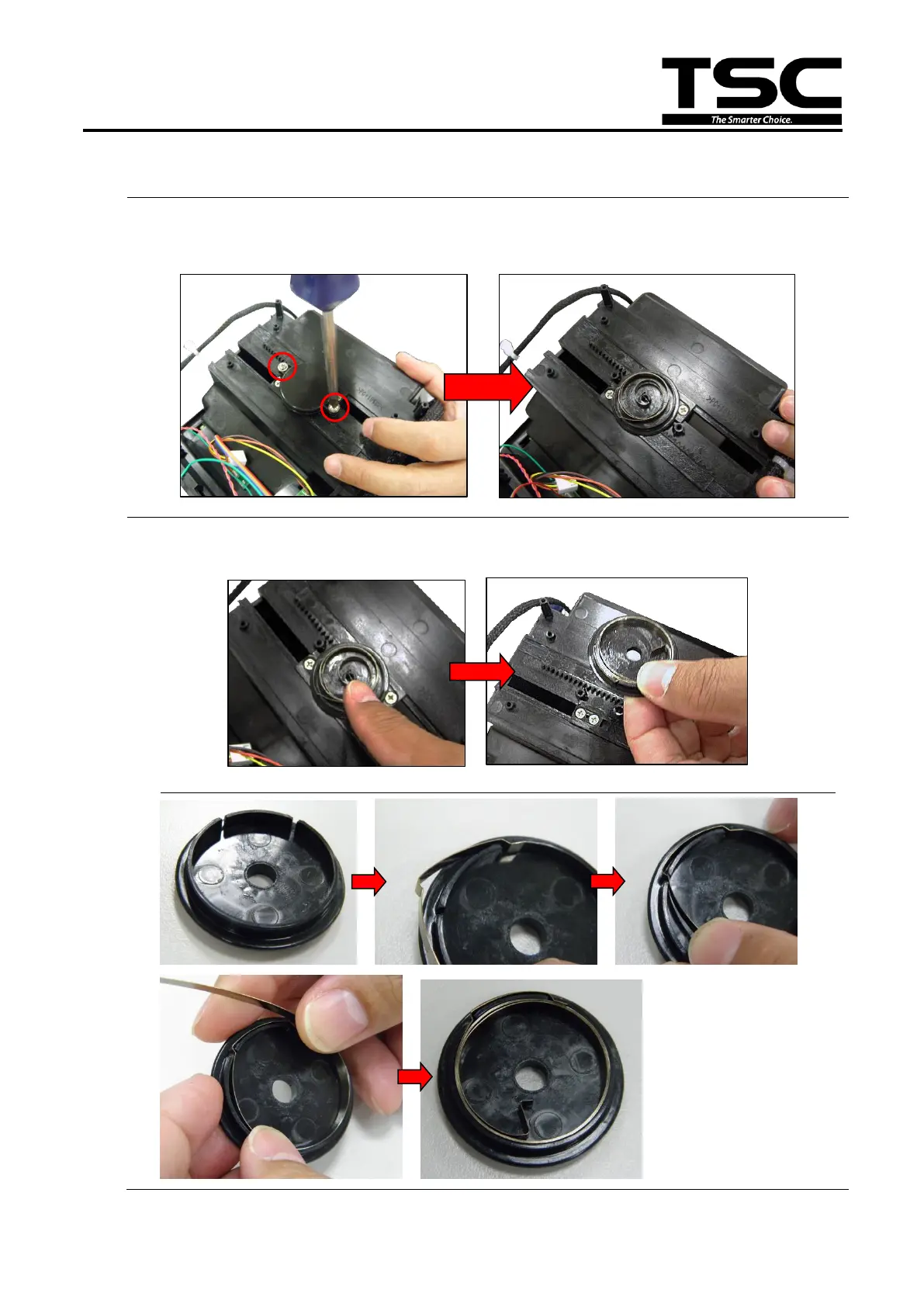

2. Remove two screws to take off the upper circle cover as shown.
3. Press the spiral sprint then take off lower circle cover. The spiral spring will be
loosed in the cover.
If the spiral spring be loosed from the cover, please install it back as shown below,
Press
