3.11 Peel-off Module Installation (Option for DA220 series)

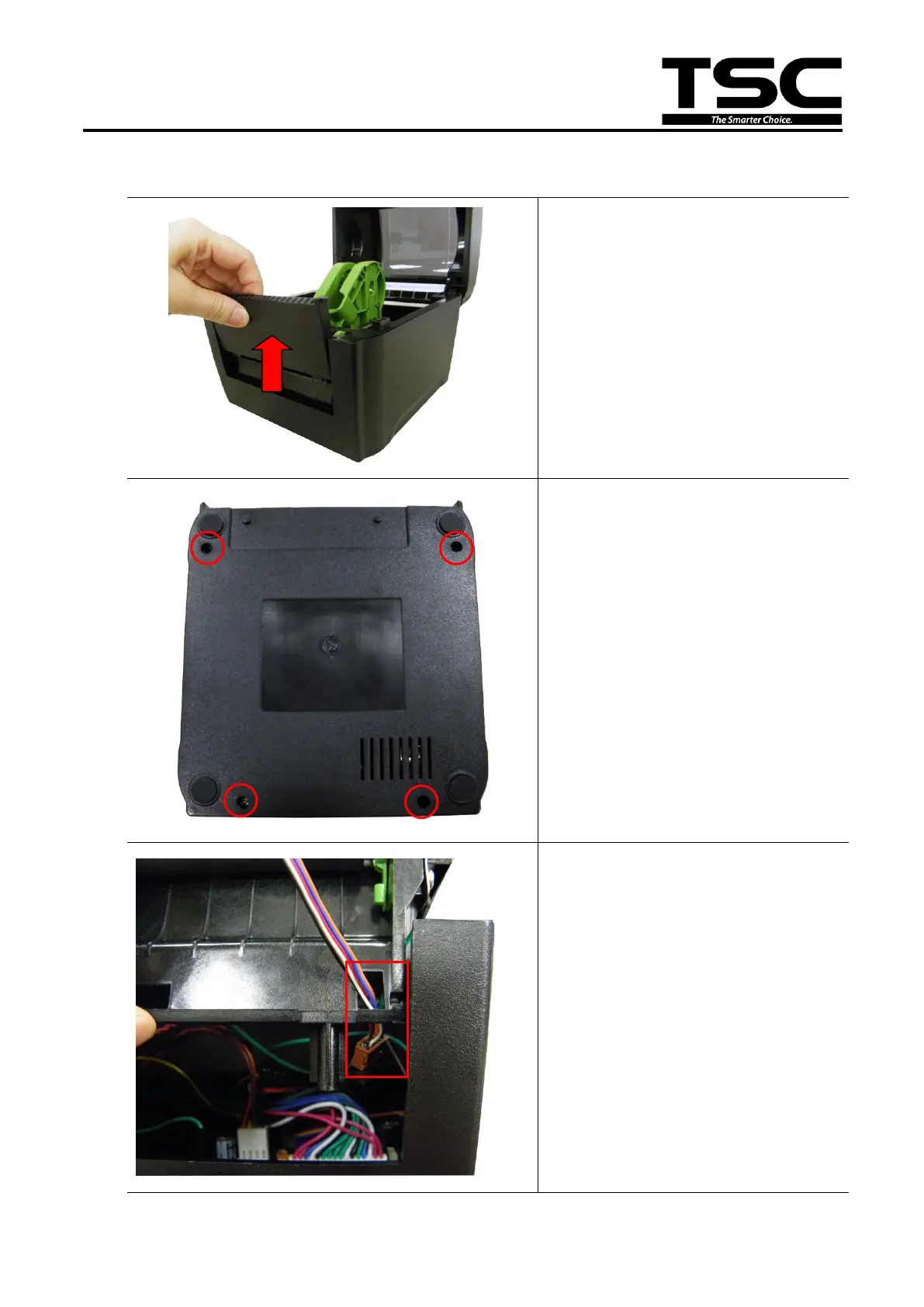

1. Open the printer top cover by
pressing up the top cover
open tabs located on each
side of the printer.
2. Remove the lower front panel.
3. Remove four screws on the
printer lower cover.
4. Thread the peel-off module
5-pin harness through the
front slot of lower inner cover.
