TSC TDP-225 Series User Manual

22
5.4 Setting Post-Print Action
When the printer is equipped with other opton kits, ex: cutter, peeler, rewinder, please select the mode after finishing the calibration.
Follow below procedure to set the post action for the printing:

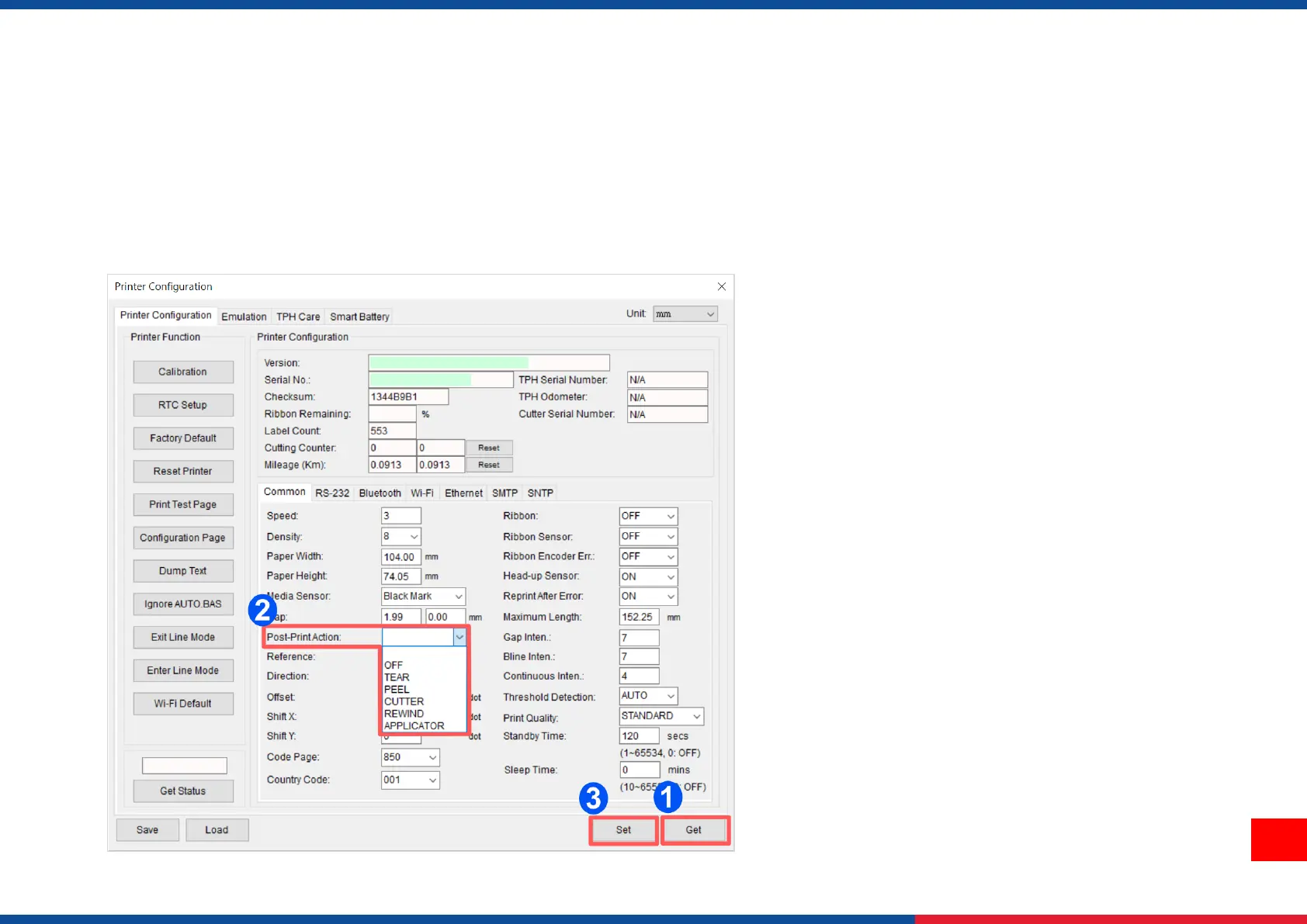

Refer Chp 5.1 to Connect the printer with TSC Console > Double click the printer > The Printer Configuration Page will pop up > Click
Get to load information > Go to Common Tab > Find Post-Print Action > Select the mode depends on users’ application > Click Set.

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
