TSC TDP-244 Series User Manual

15

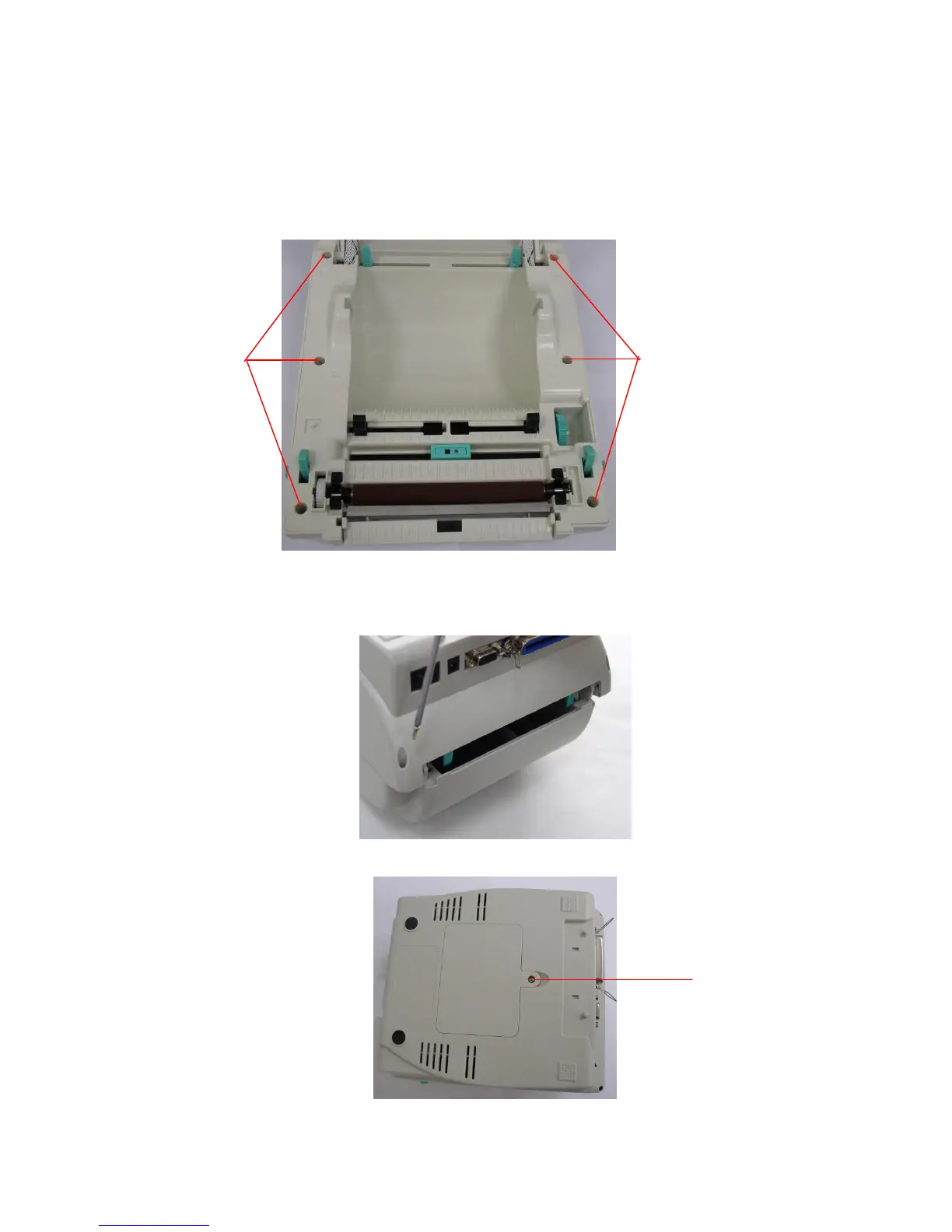

3.6 Cutter Module Installation (Option)
1. Pull the top cover open levers to open the top cover.
2. Remove the front panel from the lower cover.
3. Remove 6 screws on the lower inner cover.
4. Upside down the printer.
5. Remove two screws at the hinge
6. Remove the screw that fixes the memory card cover.
Screws
Screws
Screw
