TSC TE210 Series User Manual

12

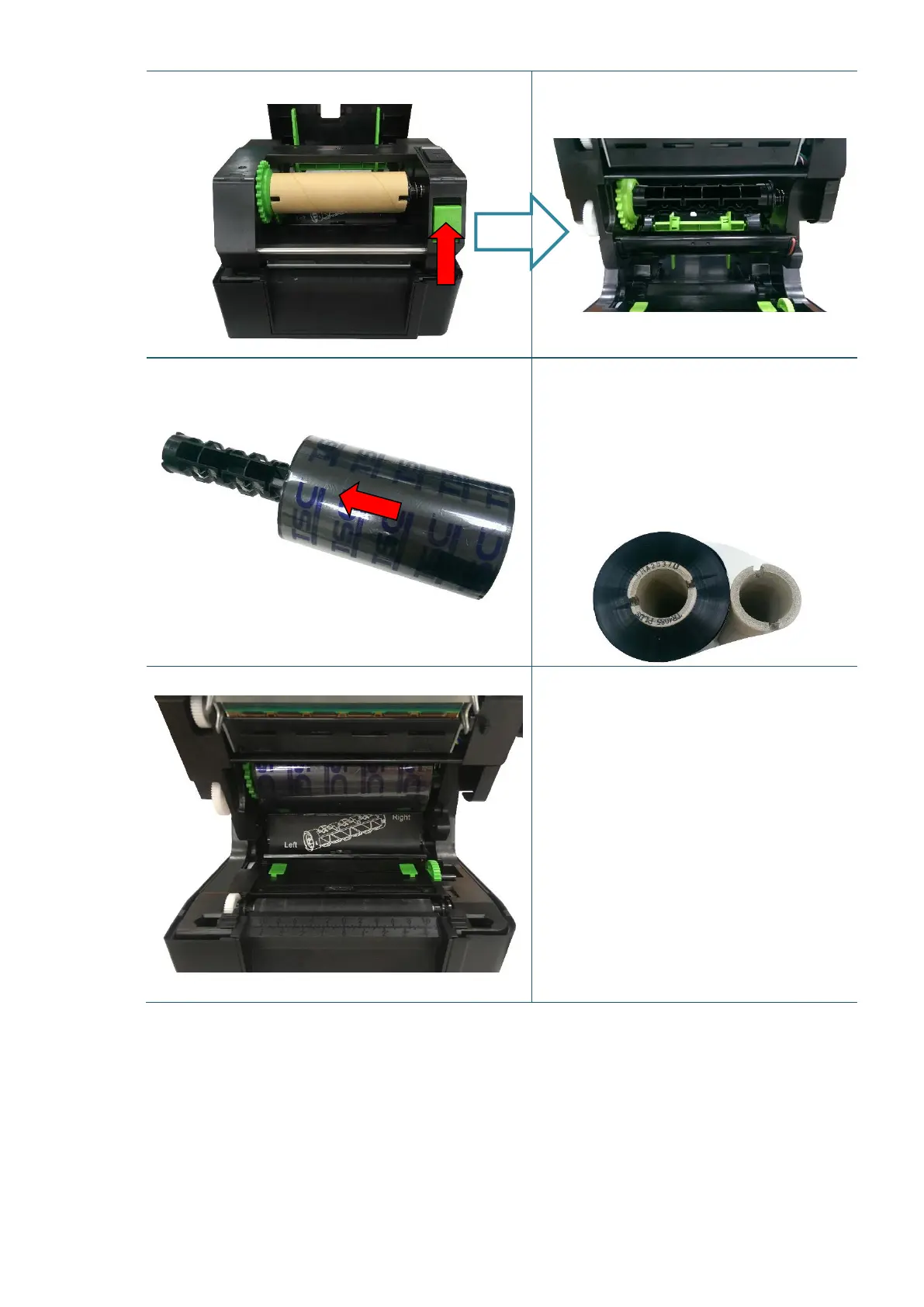

4. Push the print head release button to
open the print head mechanism.
5. Insert the ribbon to the ribbon
spindle.
Note: The ribbon spindle can be
substituted by insert the ribbon
with notches on both sides to the
ribbon mechanism directly.
6. Insert the right side of ribbon supply
spindle (marked “R”) to the ribbon
supply hub first. Then, insert the left
side of ribbon supply spindle to the
hole at the left side of ribbon supply
hub (green).
OPEN

TSC TE210 Series Specifications

General

Resolution	203 DPI
Print Speed	6 IPS
Print Method	Thermal transfer / Direct thermal
Processor	32-bit RISC CPU
Interface	USB 2.0, RS-232, Ethernet
Scan Rate	N/A (Barcode printer, not a barcode reader)
Barcode Resolution	N/A (Barcode printer, not a barcode reader)
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, Interleaved 2 of 5, Codabar, POSTNET
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	25 ~ 85% non-condensing (Operating)
Power Consumption	100-240V AC, 50/60Hz
