TSC TH240 Series

30

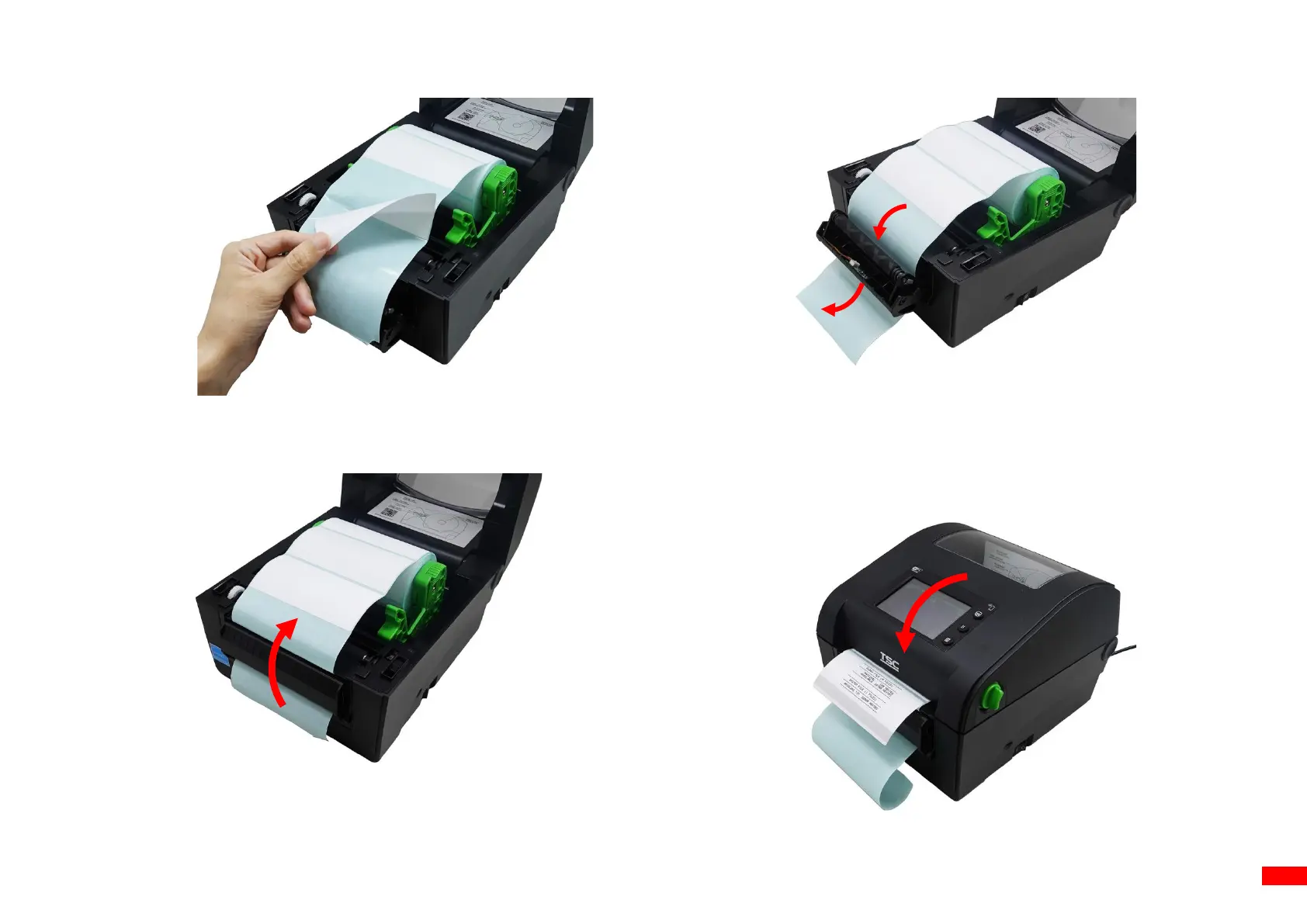

5. Remove some pieces of label from the release liner.
6. Thread the media through the opening on the peel module.
7. Close the peel roller.
8. Close the printer’s top cover. Set the print mode to Peeler Mode
and then print a label to check if the peel module works well. For
how to set the print mode to Peeler Mode, please refer to 6.7
Configuring Optional Kits and 7.1.1 TSPL.
