29
29

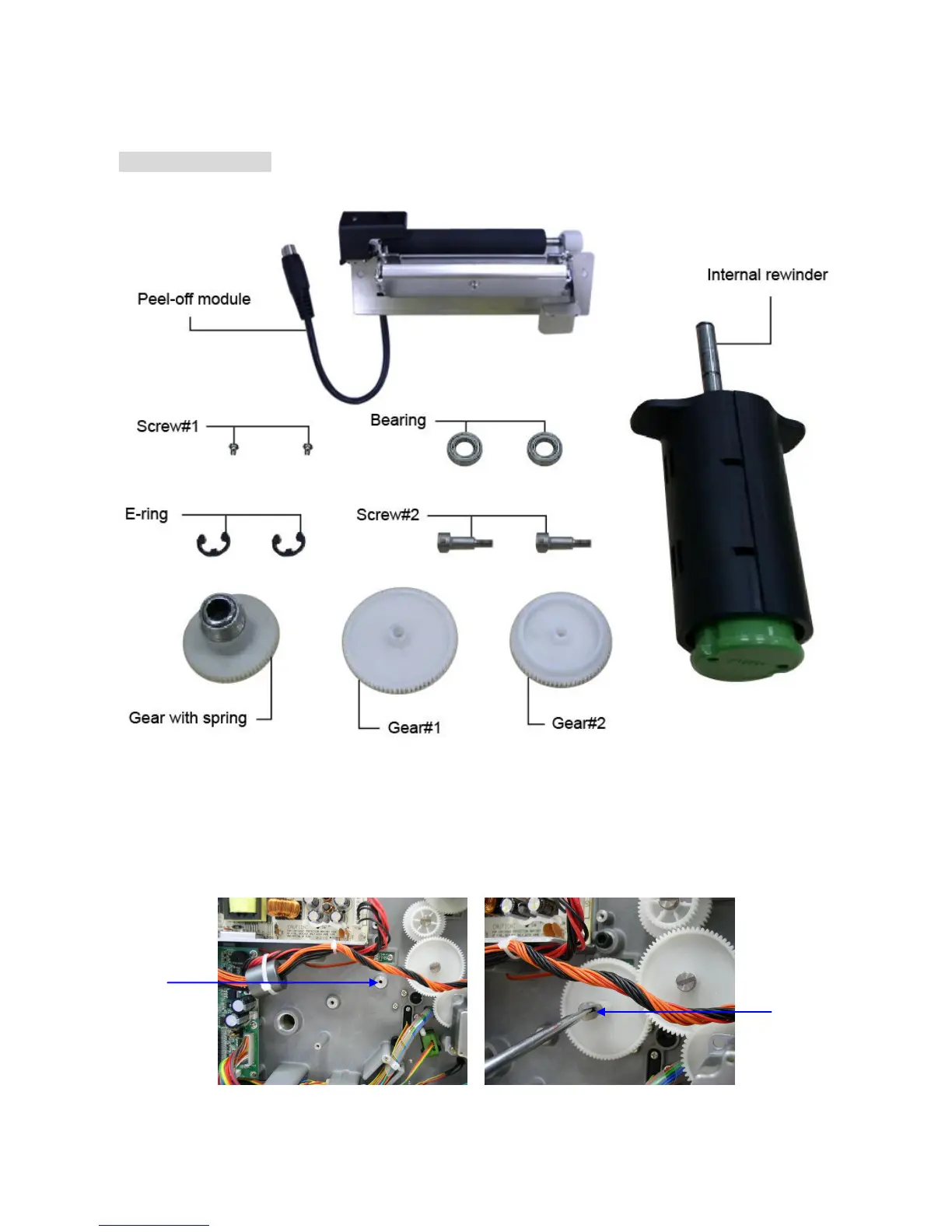

3.12 Peel-off Kit Installation (Option)
Peel-off kit parts list
1. Refer to section 3.1 to remove the electronics cover.
2. Fasten the screw#2 to fix the gear#1.
Gear#1
position
Screw#2
