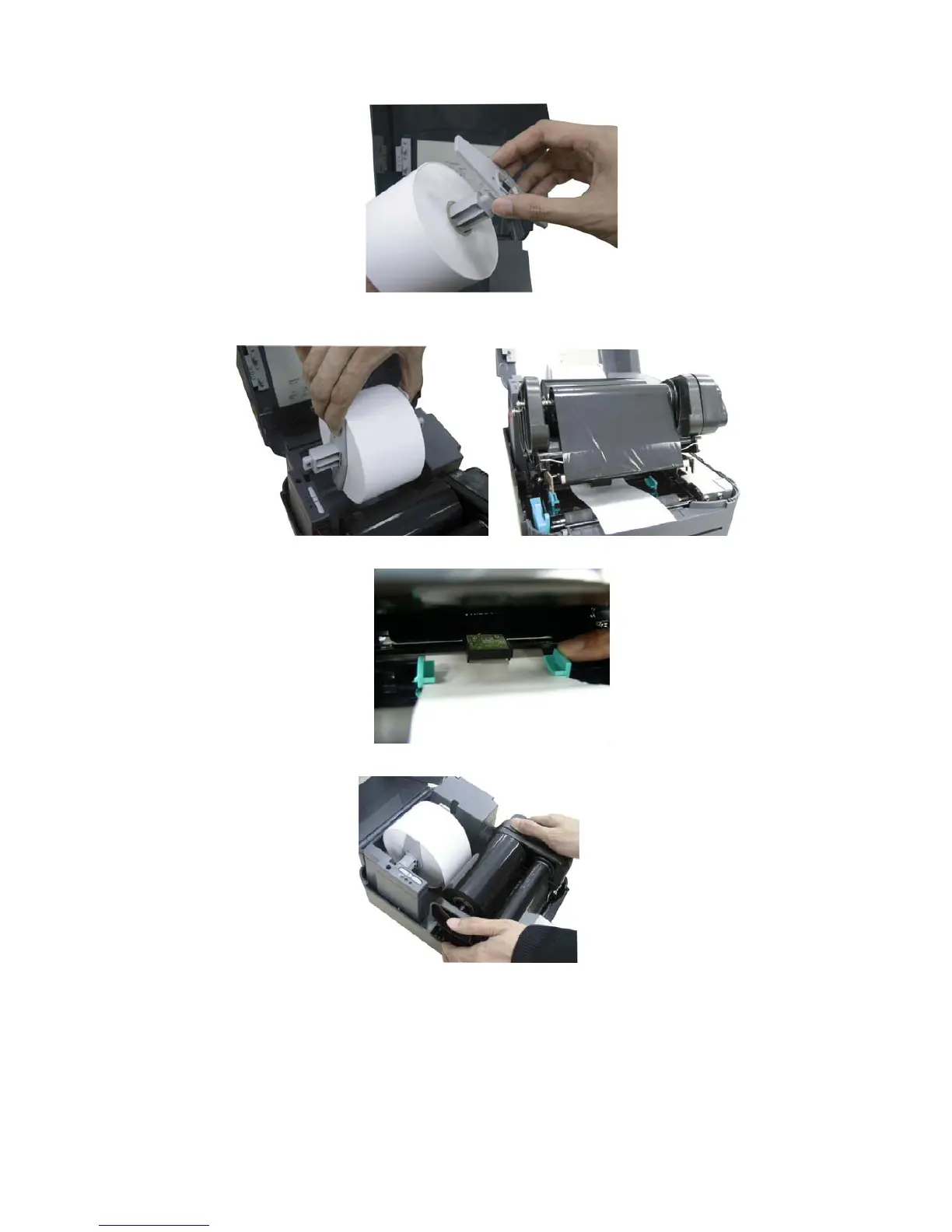

4. Place the label roll into the label roll mount. Feed the label under the carriage

and over the platen.

5. Adjust the label guide to fit the width of the media.

6. Engage the printer carriage.

7. Wind the label roll until it becomes adequately taut.

8. Close the printer cover and press the FEED button three or four times until the

green ON-LINE indicator illuminates.

9. When the printer is out of ribbon or media, the ON-LINE LED will not illuminate

and the ERR. LED will flash. Reload the ribbon or media without turning off the

printer power. Press the FEED button three or four times until the ON-LINE

LED illuminates. The printing job will be resumed without data loss.

Questions and Answers:

Need help?

Do you have a question about the TSC TTP-244 and is the answer not in the manual?

TSC TTP-244 Specifications

General

Print Resolution	203 DPI
Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	4 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Processor	32-bit RISC
Interface	USB
Maximum Print Width	4.09 inches (104 mm)
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, POSTNET
Power Supply	100-240V AC, 50/60Hz
