3.6 Dump Mode

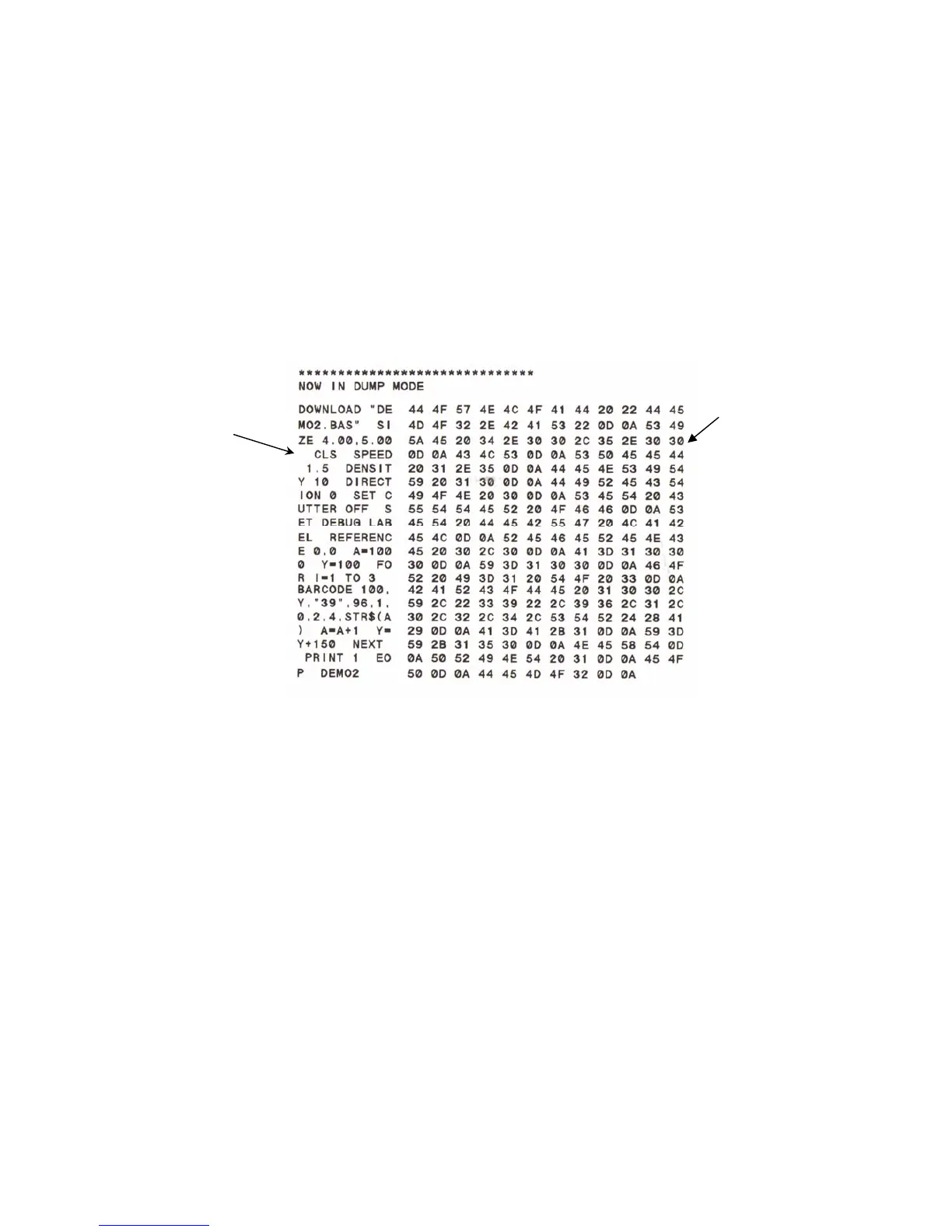

After the self test, the printer enters the dump mode. In this mode, any characters

sent from the host computer will be printed in two columns, as shown. The

characters received will be shown in the first column, and their corresponding

hexadecimal values, in the second. This is often helpful to users for the

verification of programming commands or debugging of printer programs. Reset

the printer by turning the POWER switch off and on.

Hex decimal data

related to left

column of ASCII

data

ASCII Data

Questions and Answers:

Need help?

Do you have a question about the TSC TTP-244 and is the answer not in the manual?

TSC TTP-244 Specifications

General

Print Resolution	203 DPI
Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	4 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Processor	32-bit RISC
Interface	USB
Maximum Print Width	4.09 inches (104 mm)
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, POSTNET
Power Supply	100-240V AC, 50/60Hz
