TSC TTP-244 User Manual

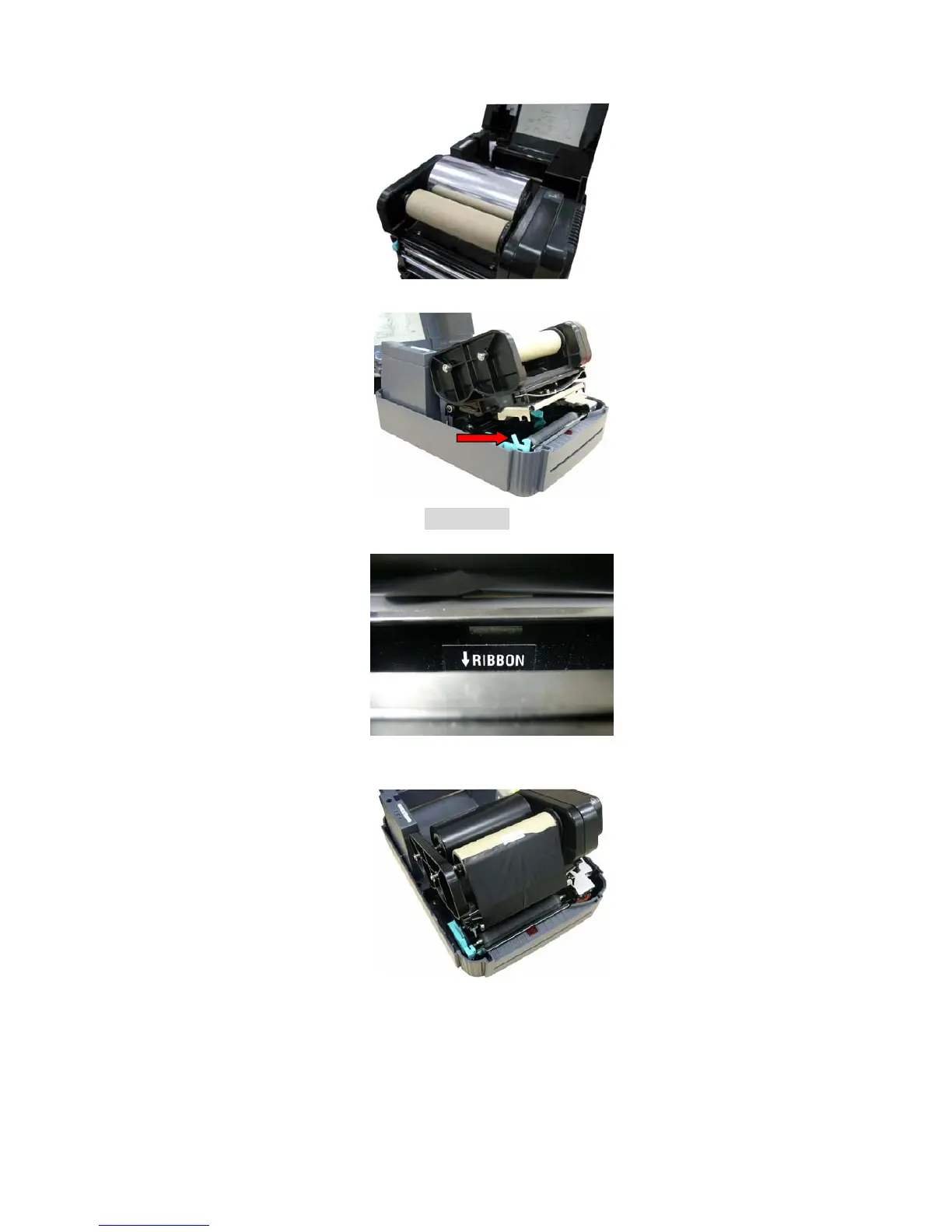

6. Disengage the printer carriage by pulling the carriage release lever upwards.
7. Following the direction of the ↓ RIBBON label, pull the transparent ribbon
leader to the front from under the ribbon mechanism.
8. Attach the ribbon leader to the empty paper core on the ribbon rewind spindle
(with a tape).
9. Rotate the ribbon rewind spindle until the ribbon overlaps the ribbon leader
and stretches tight.
13

TSC TTP-244 Specifications

General

Print Resolution	203 DPI
Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	4 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Processor	32-bit RISC
Interface	USB
Maximum Print Width	4.09 inches (104 mm)
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, POSTNET
Power Supply	100-240V AC, 50/60Hz
