TSC TTP-2610MT Series Service Manual

16

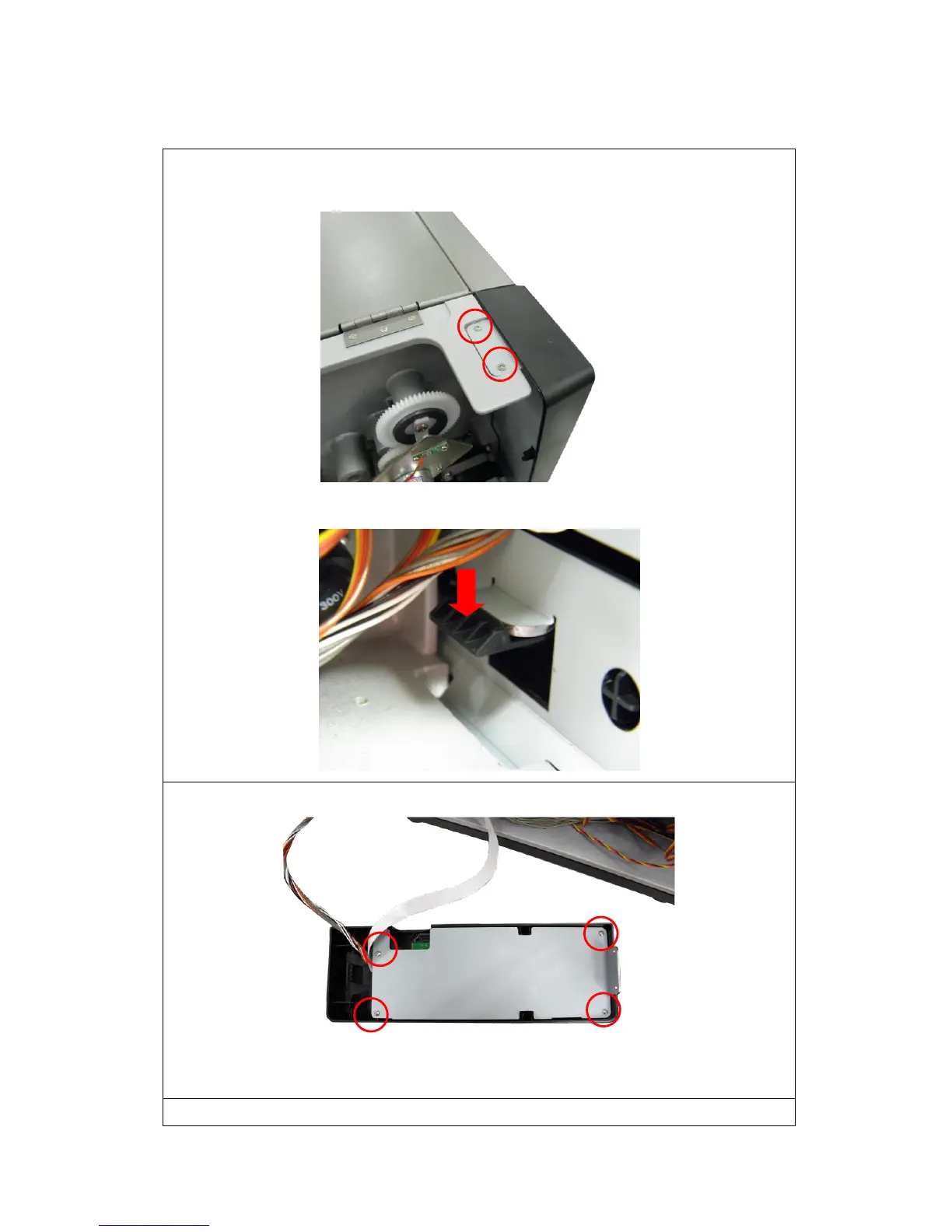

3.2 Replacing the LCD Panel Module
1. Refer to section 3.1 to remove the electronics cover.
2. Remove 2 screws on the module bracket.
3. Push down the tab to remove the LCD panel module.
4. Remove 4 screws to remove the module bracket.
5. Disconnect 3 harnesses to replace the LCD panel module.
PUSH
