29

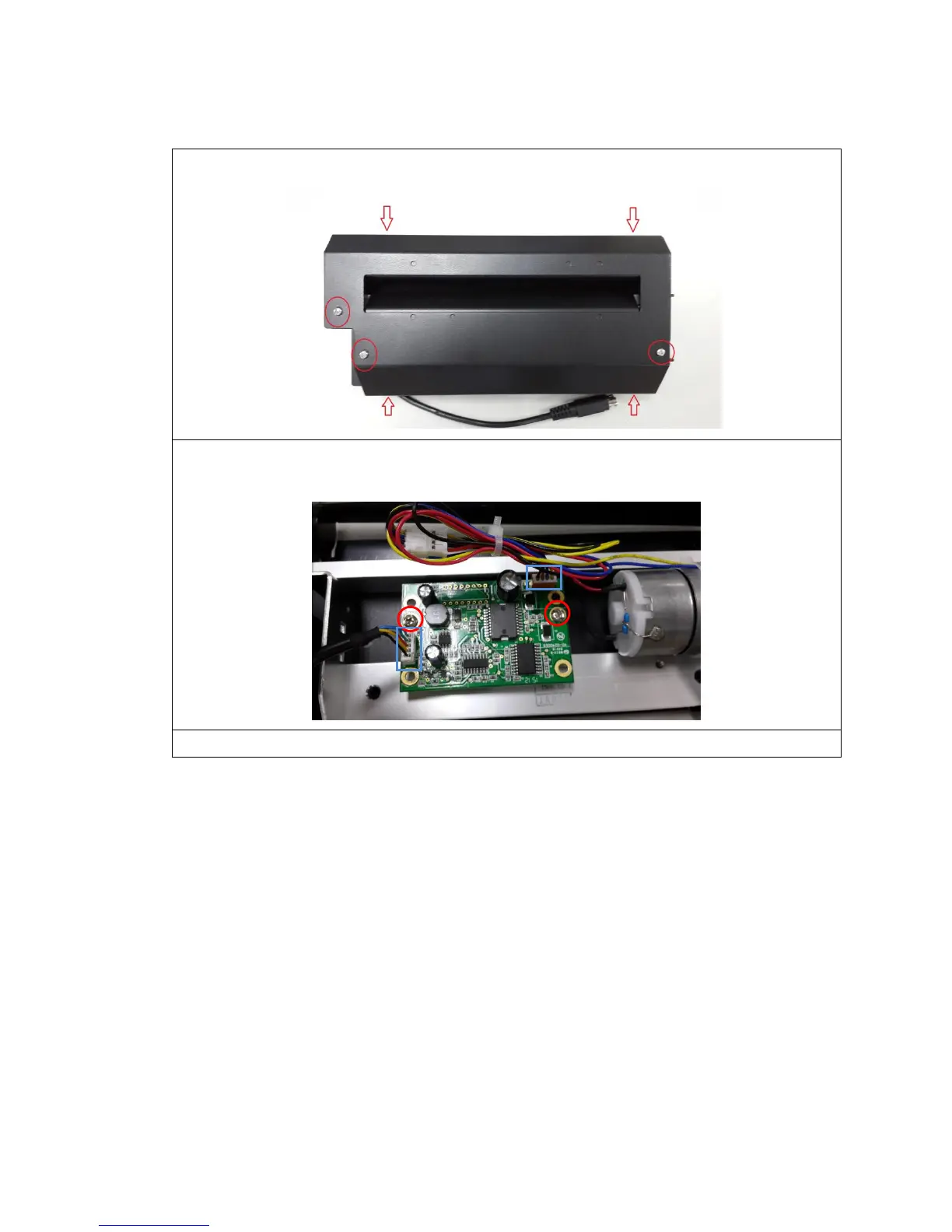

3.12 Replacing the Cutter Driver IC Board (Option)
1. Remove 7 screws on cutter cover.
2. Disconnect 2 connectors on the cutter driver IC board. Remove 2 screws to
replace the cutter driver IC board.
3. Reassemble the parts in the reverse procedures.
