3.8 Replacing the Print head ASS'Y

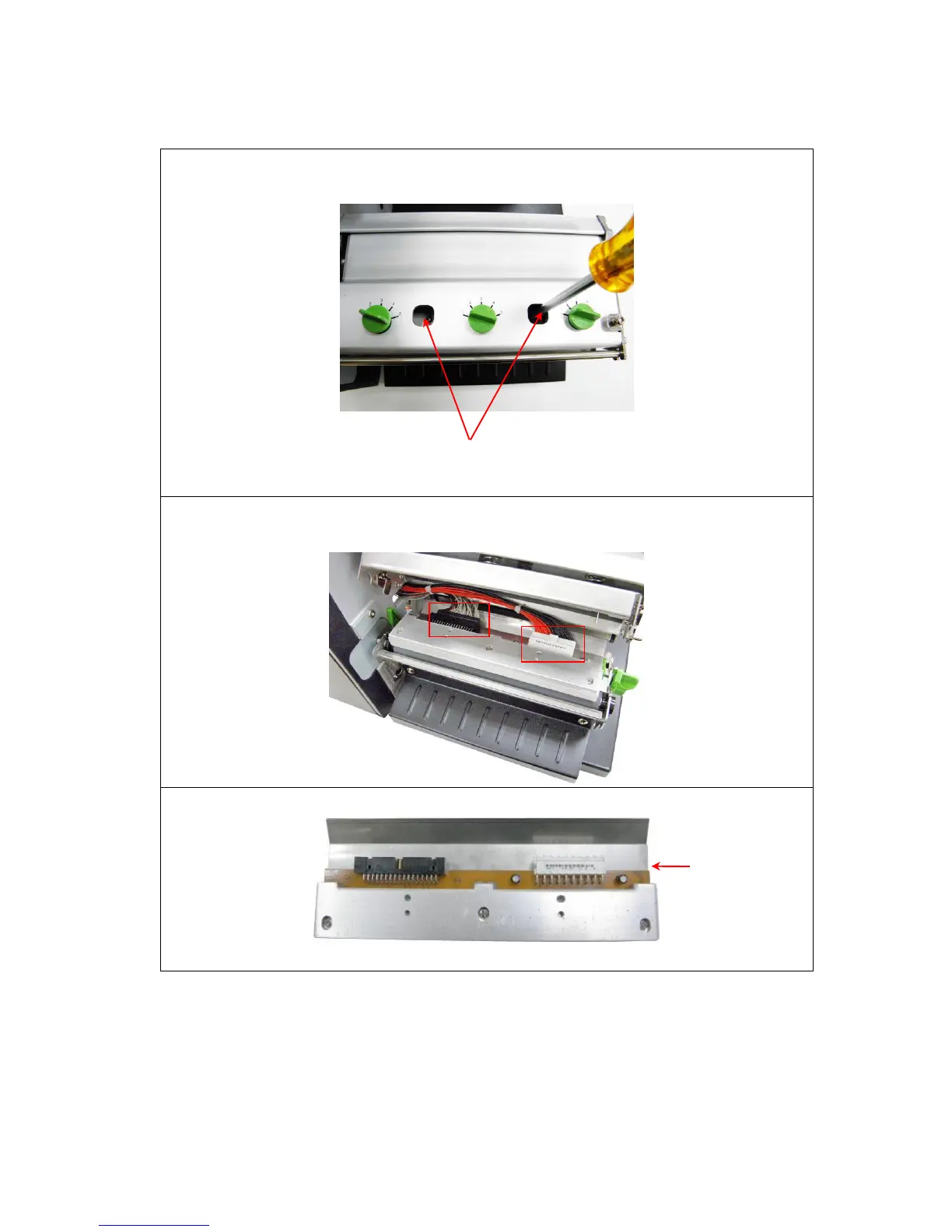

1. Open the printer right side cover.
2. Remove 2 screws from the mechanism.
3. Disengage print head release lever.
4. Carefully disconnect 2 connectors from the print head ASS'Y.
5. Replace the print head ASS'Y.
Screws
Print head
ASS'Y
