TTP-268M/ TTP-366M
Bar Code Printer Service Manual

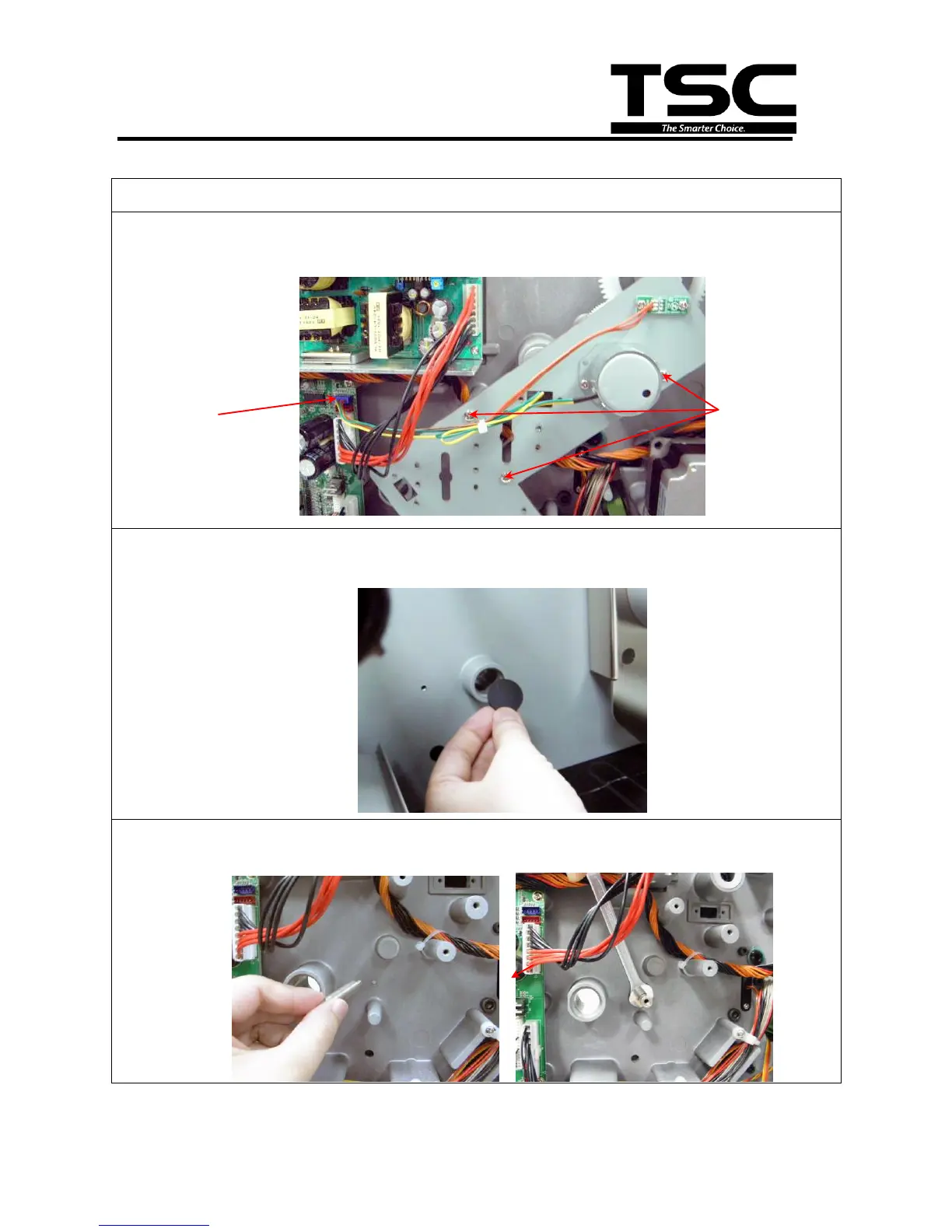

1. Refer to section 3.1 to remove the electronics cover.
2. Remove 3 screws and 1 connector to remove the DC motor assembly. (DC motor
fixing plate)
3. Open the right side printer cover. Remove the dustproof cover from internal rewinder
spindle reserve hole.
4. Install the pillar to the printer. Please refer to the above fig. Use wrench (No. 7) to
fasten the pillar.
Screws
Connector
(Blue)
