TTP-268M/ TTP-366M
Bar Code Printer Service Manual

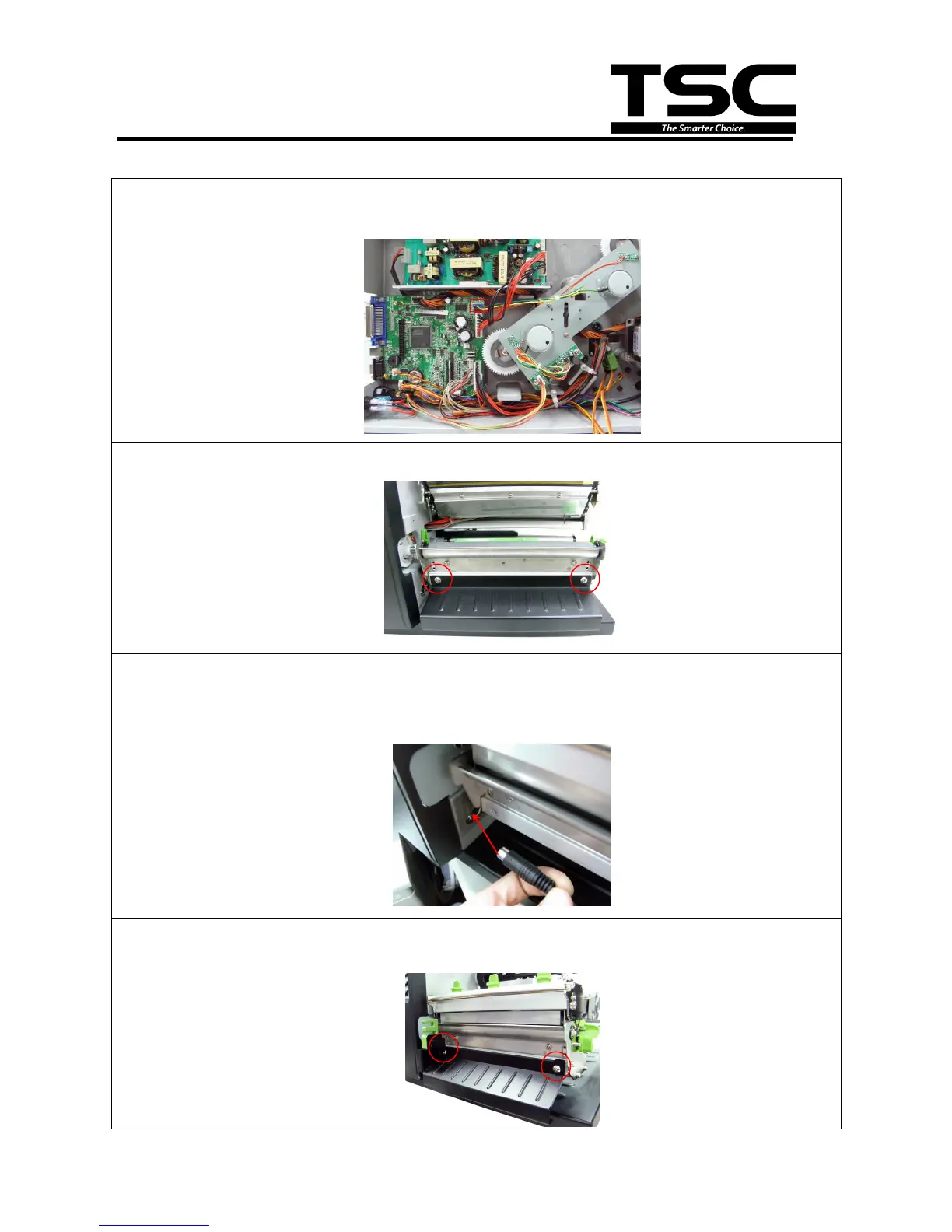

19. Connect the DC motor harness and the DC motor control board harness to main
board. Then, reassemble the parts in the reverse procedures.
20. Remove 2 screws to take off the lower front panel.
21. Plug the peel-off mini DIN cable connector into the peel-off/cutter connector and place
the cable in the cable cavity. The triangle mark on the connector must be at the upper
side.
22. Fasten 2 screws (# 1) at the peel-off module to fix the peel-off module to the printer
mechanism.
