TTP-268M/ TTP-366M
Bar Code Printer Service Manual

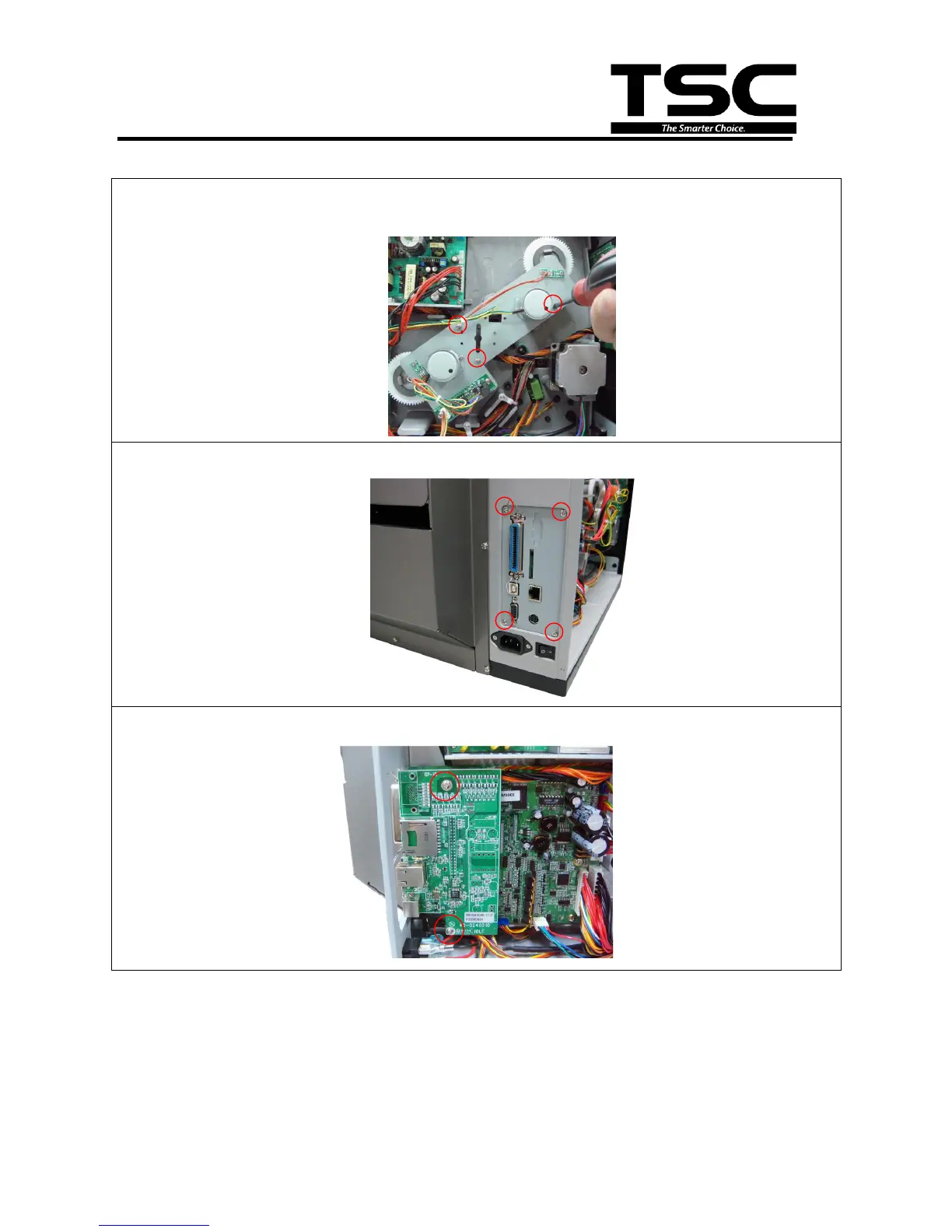

16. Use 3 screws to fasten the DC motor plate to the printer mechanism. Plug the DC
motor control board harness into the DC motor control board. (White connector)
17. Remove 4 screws to take off the printer interface plate.
18. Remove 2 screws from multi-interface board to remove the multi-interface board.
