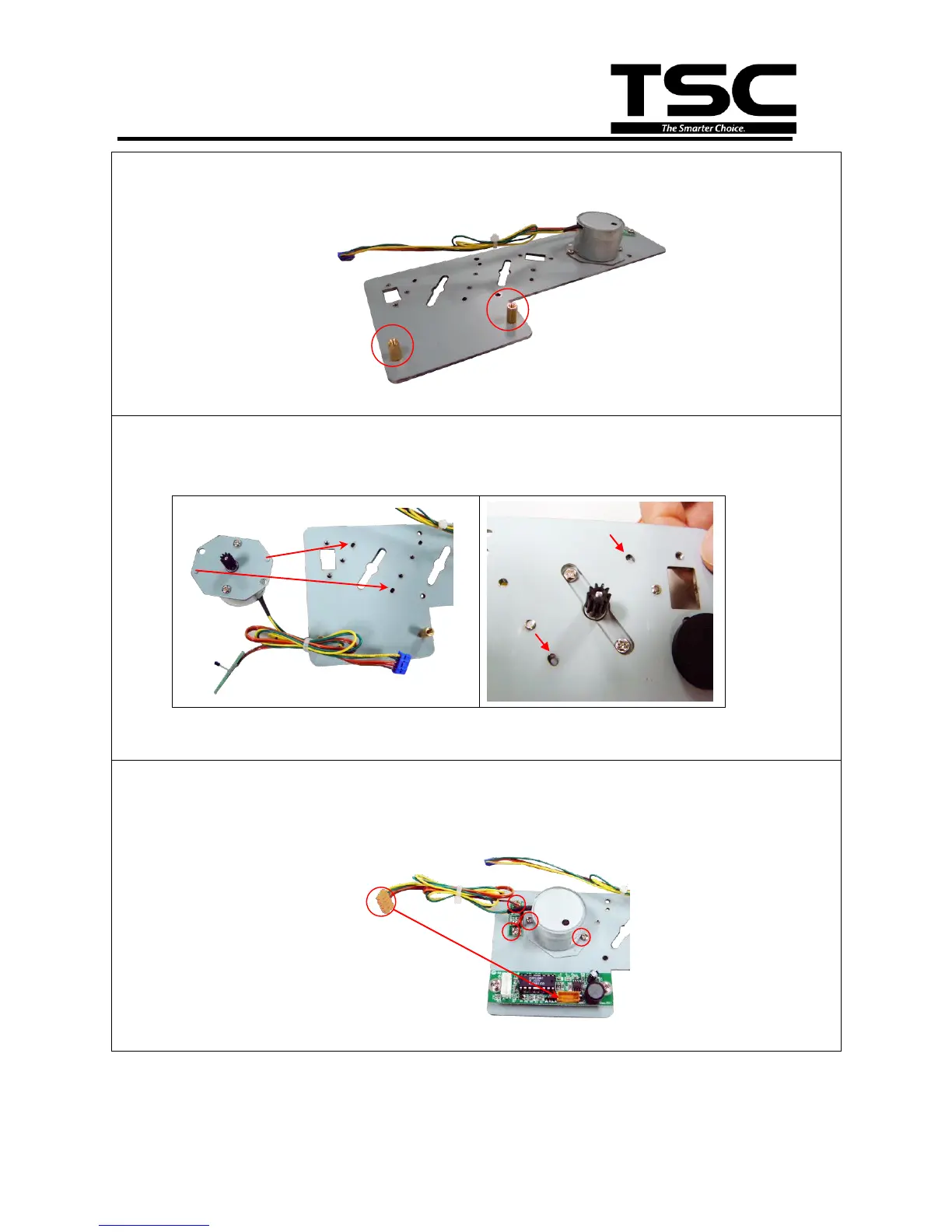

13. Install 2 copper pillars to the DC motor fixing plate.
14. Place the two locating protrusions on the motor into the locating holes on the fixing
plate. Make sure the protrusions at lower position of locating holes.
15. Use 4 screws (#4) to fix the DC motor and sensor board on the plate. Use 2 screws
(#3) to fix the DC motor control board on the copper pillars. Plug the DC motor kit
harness into the DC motor control board.
