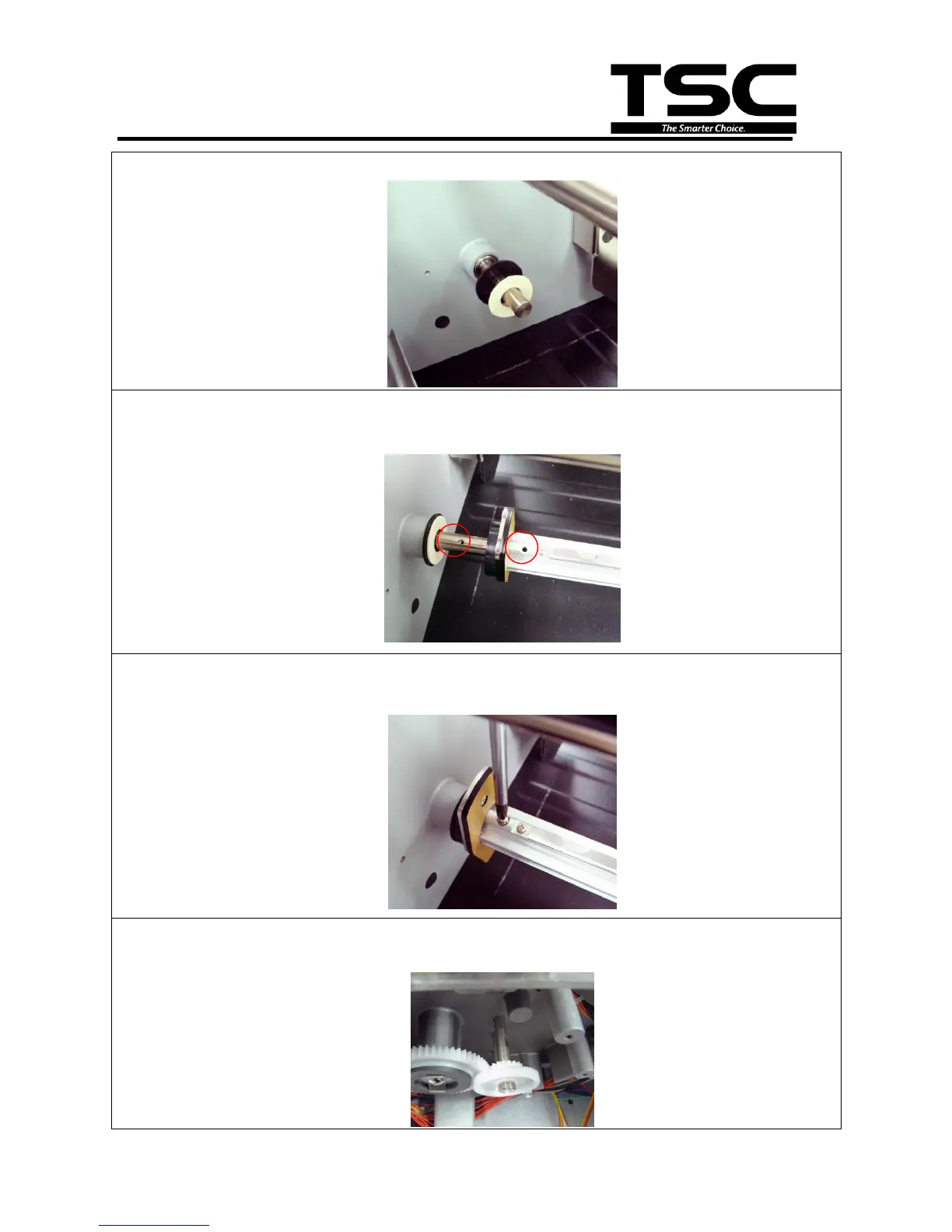

9. Put the bearing (right side), felt fabric and gasket onto the shaft.
10. Insert the internal rewinder spindle to the shaft and fasten the screw.
Note: The spindle screw hole must be in alignment with the screw hole on rewinder shaft.
11. Rotate the spindle 180 degree and fasten the other screw at the internal rewinder
spindle.
12. Use the screw (#2) to fasten the gear into the pillar by slotted screwdriver.
Note: Turn the gear to confirm that it works with internal rewinder gear.
