Setting Up

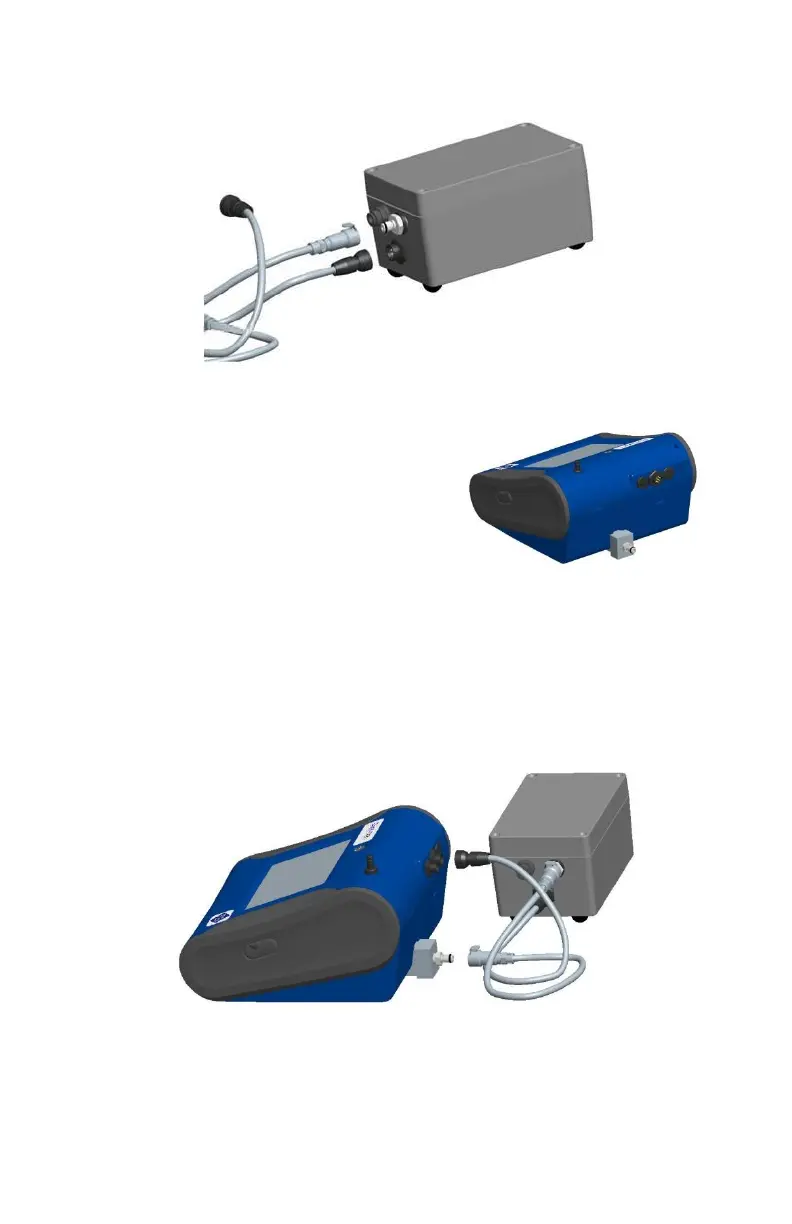

1. Connect the pump end of the quick connect to the pump module (see
Figure 2-3).
Figure 2-3: Connect Pump End of Quick Connect to Pump Module
2. Likewise, plug one end of the power
connector to the pump module as
shown above. Turn the power
connector until it clicks and locks in
place. This prevents the connector
from disconnecting due to vibration
or movement.
3. Connect the exhaust adapter to the
exhaust of the DustTrak monitor
(see Figure 2-4).
Figure 2-4: Connect Exhaust
Adapter to Exhaust of
DustTrak Monitor
4. Connect the other end of the flow tubing to the exhaust adapter of the
DustTrak monitor.
5. Connect the other end of the power connector to the DustTrak monitor
(see Figure 2-5).
Figure 2-5: Connect Power Connector to DustTrak Monitor
