10 AXT-2.5 AXT- Cable Motion Plus Home Gym

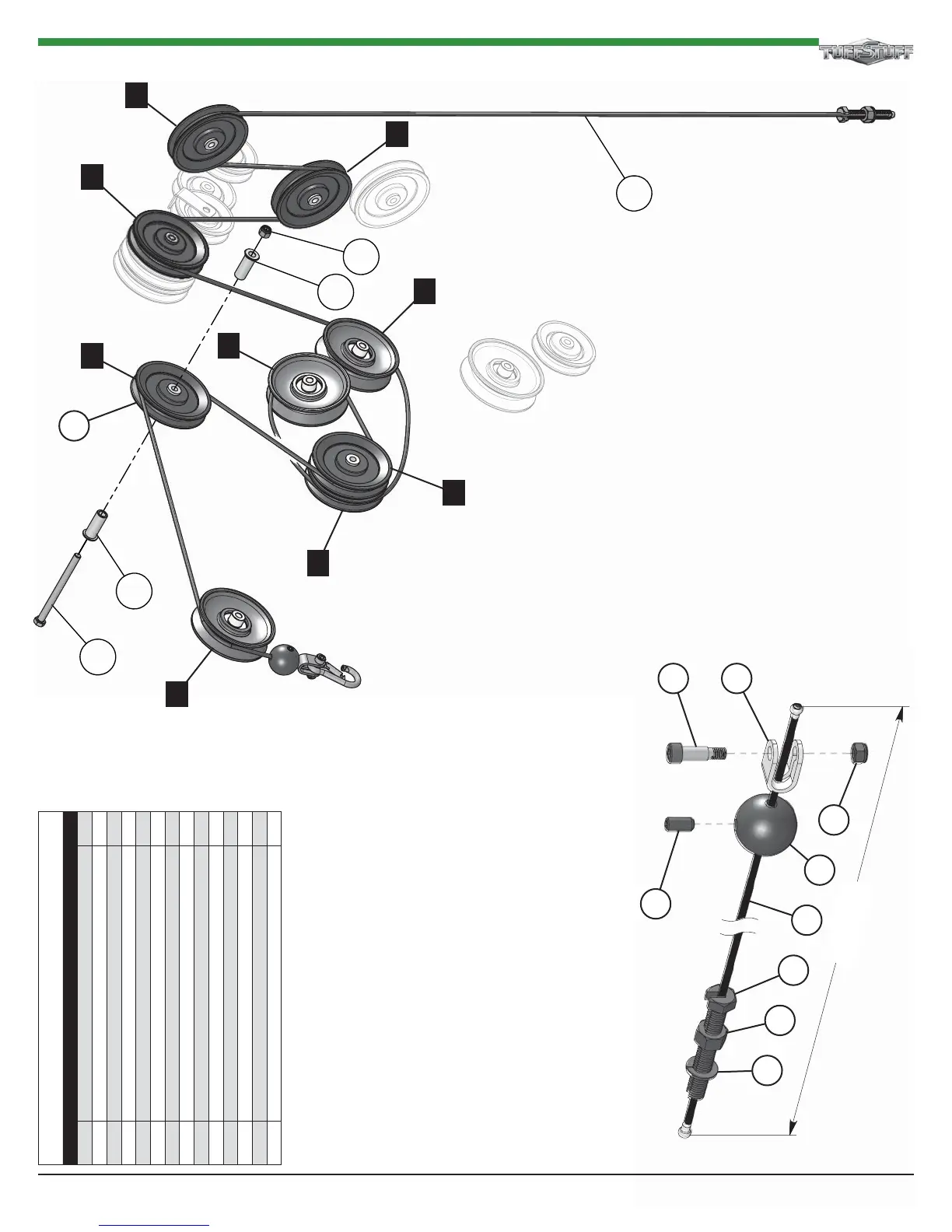

Step 8a Lat Cable Assembly
Step 8 Assembly List
Item # Description Qty.
20 LAT CABLE 1
59 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2 1 79 FINISHED HEX NUT 1/2-13 1 84 FLANGED SPACER 0.406 X 0.63 X 1.693 (1.614) 2
106 HEX HEAD CAP SCREW 3/8-16 X 5 1
116 NYLON BALL 1 3/4 X 5/16 1
121 NYLON INSERT LOCK NUT 3/8-16 1 122 NYLON INSERT LOCK NUT 5/16-18 1 142 SHOULDER BOLT 3/8 X 3/4 1 144 SNAP LINK Z/P 8MM X 80MM 1 146 SOC SET SCREW 3/8-16 X 3/4 1 150 SPLIT HEX TAP BOLT 1/2-13 X 3 1/2 1 152 SPLIT LOCK WASHER Z/P 1/2” 1 154 STRAP BRACKET 20 #SF20 1
59
