TuffStuff AXT-2.5 - Step 16: Adjustable Press Bar Cable Assembly

Step 16 Adjustable Press Bar Cable Assembly
5
31
28
122
88
64
28
29
64
88 142
5
29
31
5
28
5
143
143

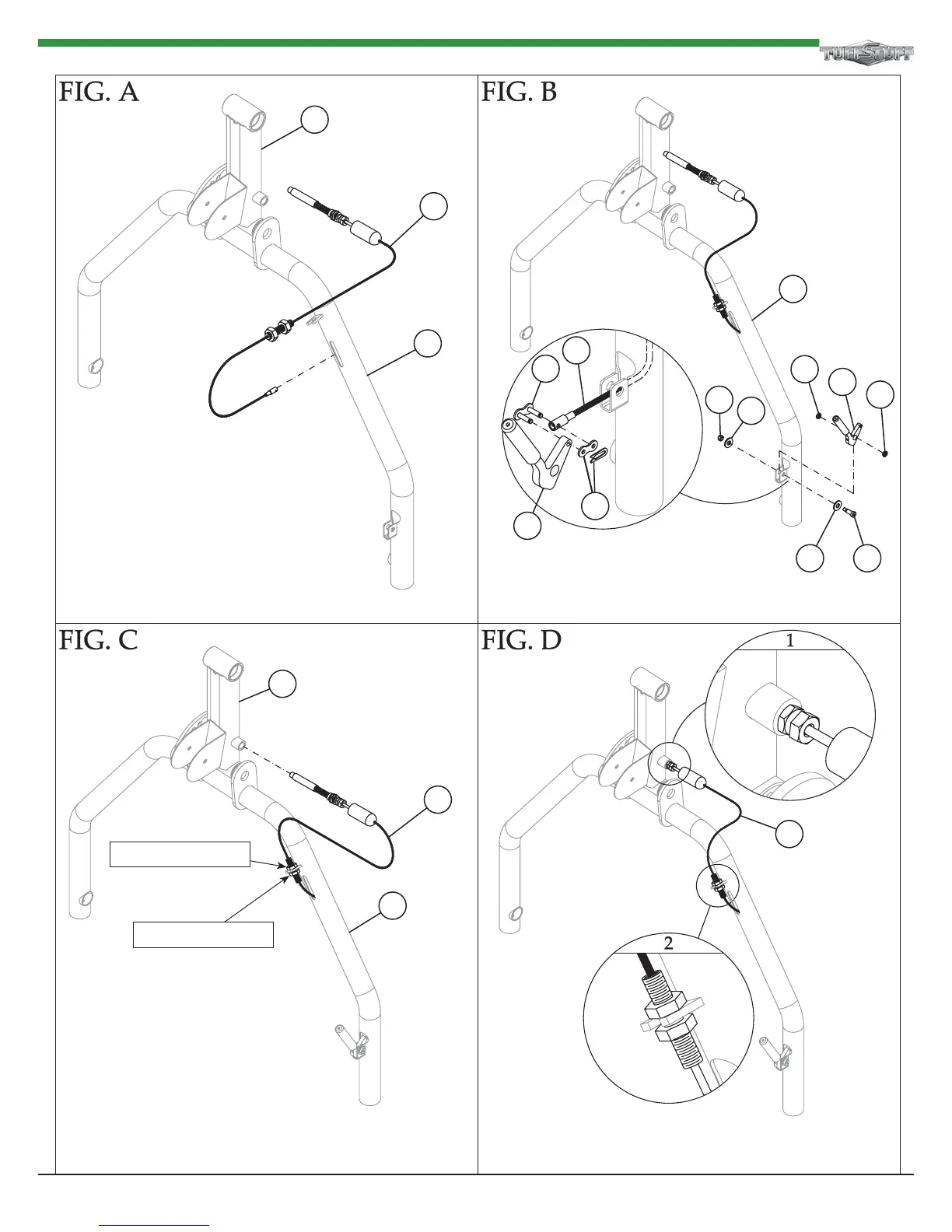

Insert 1. Cable (#5) into the slot of the
Press Bar (#28) and run it down the tube.
Assemble 1. Cable (#5) to Handle (#29).
Assemble 2. Handle (#29) to Press Bar (#28).
Affi x 1. Cable (#5) to Press Bar (#28)
using the Adjusting Nuts.
Attach the 2. Cable (#5) to Press Bar
Housing (#31).
Refer to FIG. 1 & FIG. 2 on page 24.
Cable (#5)1. fi ne-tune Adjustment.
Refer to pages 24 & 25.
23AXT-2.5 AXT- Cable Motion Plus Home Gym
Adjusting Nut
Adjusting Nut
