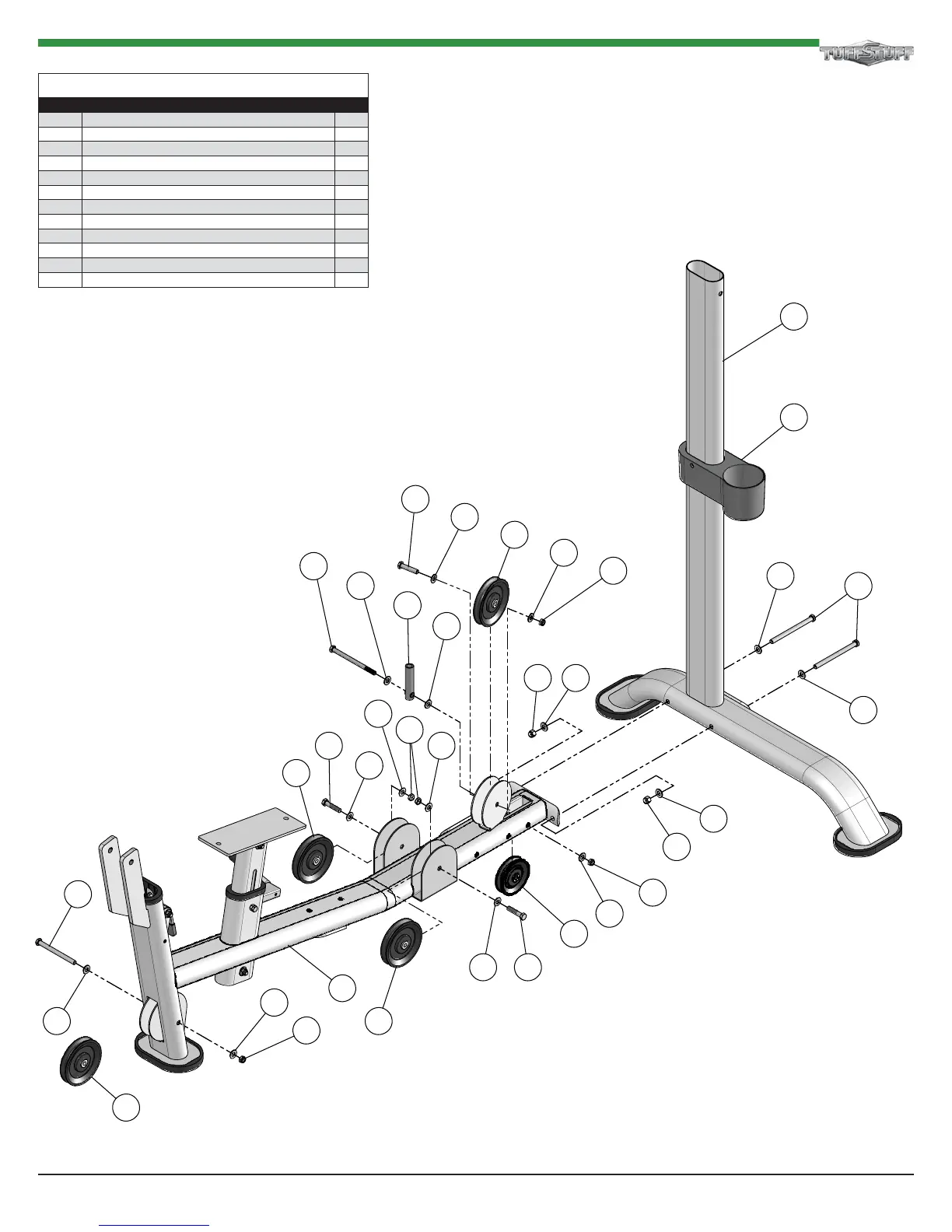

TuffStuff AXT-2.5 - Step 1: Base Frame Assembly; Step 1 Assembly List

88
120
59
59
88
105
59
88 98
58
88
121
121
88
88
107
88
68
33
88 121
120
88
59
88
98
37
88
159
88
120
88
88
98
10
88
3AXT-2.5 AXT- Cable Motion Plus Home Gym
Step 1 Assembly List
Item # Description Qty.
10 BASE FRAME 1
33 REAR UPRIGHT 1
37 SWIVEL CABLE END 1
58 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 1
59 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2 4
88 FLAT WASHER SAE 3/8” 15
98 HEX HEAD CAP SCREW 3/8-16 X 1 3/4 3
105 HEX HEAD CAP SCREW 3/8-16 X 4 1/2 1
107 HEX HEAD CAP SCREW 3/8-16 X 5 1/4 2
120 NYLON INSERT JAM LOCK NUT 3/8-16 4
121 NYLON INSERT LOCK NUT 3/8-16 3
159 HEX HEAD CAP SCREW 3/8-16 X 5 1/2 1
Step 1
