TuffStuff AXT-2.5 - Step 2: Front Upright Assembly; Step 2 Assembly List

88 151
95
46
88
151
95
88
121
11
88
121
10
88
121
88
88
88
107
88
103
88
103
18
88
120
88
58
120
88
88
120
57
88
100
88
105
57
57
88
105
98
88
4 AXT-2.5 AXT- Cable Motion Plus Home Gym

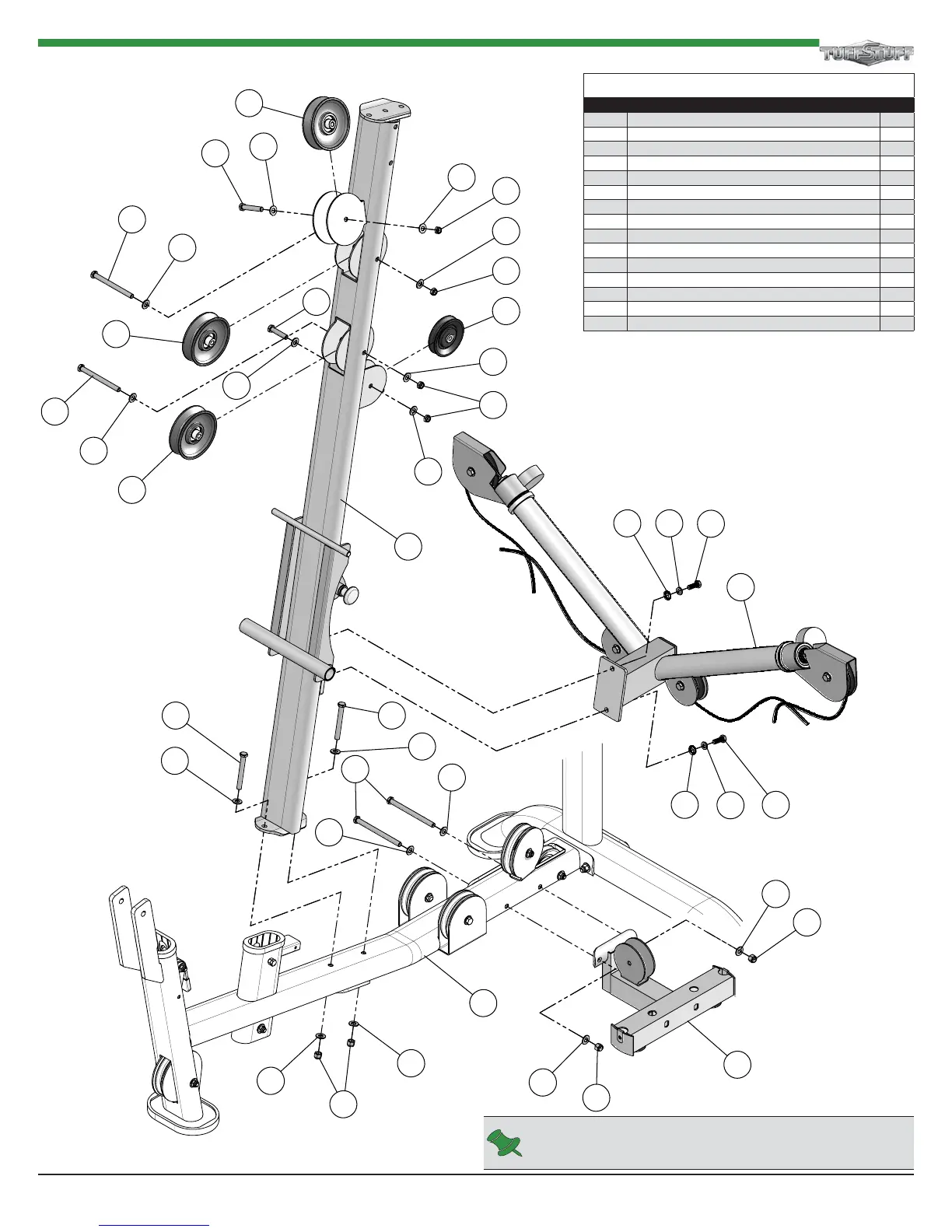

Step 2
Step 2 Assembly List
Item # Description Qty.
11 BOTTOM GUIDE ROD RETAINER 1
18 FRONT UPRIGHT 1
46 WING ARMS 1
57 BLACK NYLON PULLEY 3/8 X 1 1/2 X 4 1/2 3
58 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 1
88 FLAT WASHER SAE 3/8” 18
95 HEX HEAD CAP SCREW 3/8-16 X 1 2
98 HEX HEAD CAP SCREW 3/8-16 X 1 3/4 1
100 HEX HEAD CAP SCREW 3/8-16 X 2 1/4 1
103 HEX HEAD CAP SCREW 3/8-16 X 3 1/4 2
105 HEX HEAD CAP SCREW 3/8-16 X 4 1/2 2
107 HEX HEAD CAP SCREW 3/8-16 X 5 1/4 2
120 NYLON INSERT JAM LOCK NUT 3/8-16 4
121 NYLON INSERT LOCK NUT 3/8-16 4
151 SPLIT LOCK WASHER 3/8” 2
NOTE:
TWO PEOPLE ARE REQUIRED TO DO THIS STEP.
