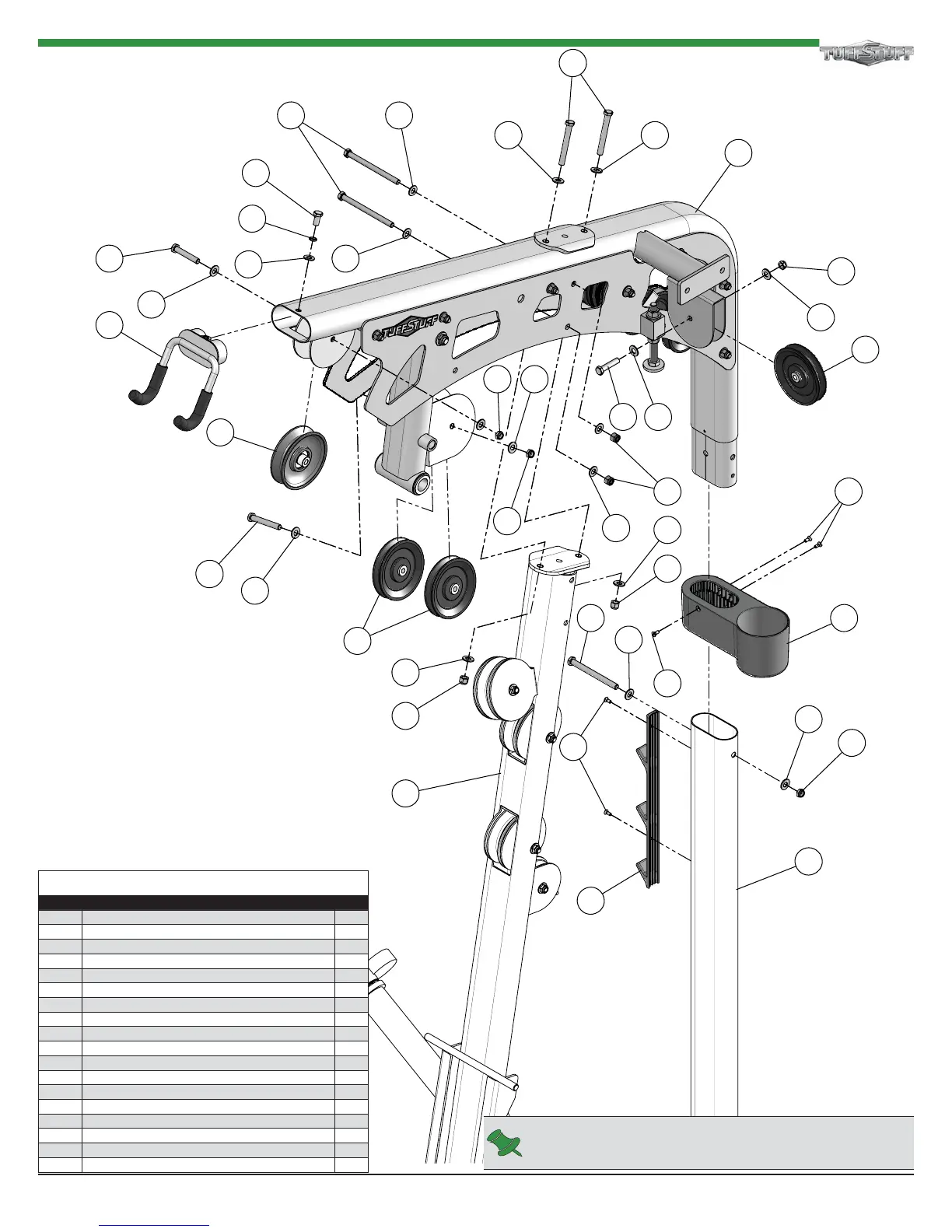

TuffStuff AXT-2.5 - Step 3: Top Frame Assembly; Step 3 Assembly List

19
88
100
57
88
101
59
88
121
18
88
121
50
85
68
85
88
121
105
88
85
120
120 88
88
121
88 98
88
120
59
103
88 88
88
106
88
88
151
95
33
40
5AXT-2.5 AXT- Cable Motion Plus Home Gym
Step 3
Step 3 Assembly List
Item # Description Qty.
19 LAT BAR HOLDER 1
40 TOP FRAME 1
50 ACCESSORY HOLDER 1
57 BLACK NYLON PULLEY 3/8 X 1 1/2 X 4 1/2 1
59 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2 3
68 CUP HOLDER 1
85 FLAT HEAD SOC SCREW # 12-28 X 3/4 5
88 FLAT WASHER SAE 3/8” 17
95 HEX HEAD CAP SCREW 3/8-16 X 1 1
98 HEX HEAD CAP SCREW 3/8-16 X 1 3/4 1
100 HEX HEAD CAP SCREW 3/8-16 X 2 1/4 1
101 HEX HEAD CAP SCREW 3/8-16 X 2 3/4 1
103 HEX HEAD CAP SCREW 3/8-16 X 3 1/4 2
105 HEX HEAD CAP SCREW 3/8-16 X 4 1/2 1
106 HEX HEAD CAP SCREW 3/8-16 X 5 2
120 NYLON INSERT JAM LOCK NUT 3/8-16 3
121 NYLON INSERT LOCK NUT 3/8-16 5
151 SPLIT LOCK WASHER 3/8” 1
NOTE:
TWO PEOPLE ARE REQUIRED TO DO THIS STEP.
