TuffStuff CLH-300 - Step 1: Base Frame Assembly

CLH-300 Horizontal Plate Load Leg Press/Hack Squatwww.tu stu tness.com
Řŗ
Řŗ
Șŗ
řř
Řř
ȘŘ
ŗŞ
Řř
řś

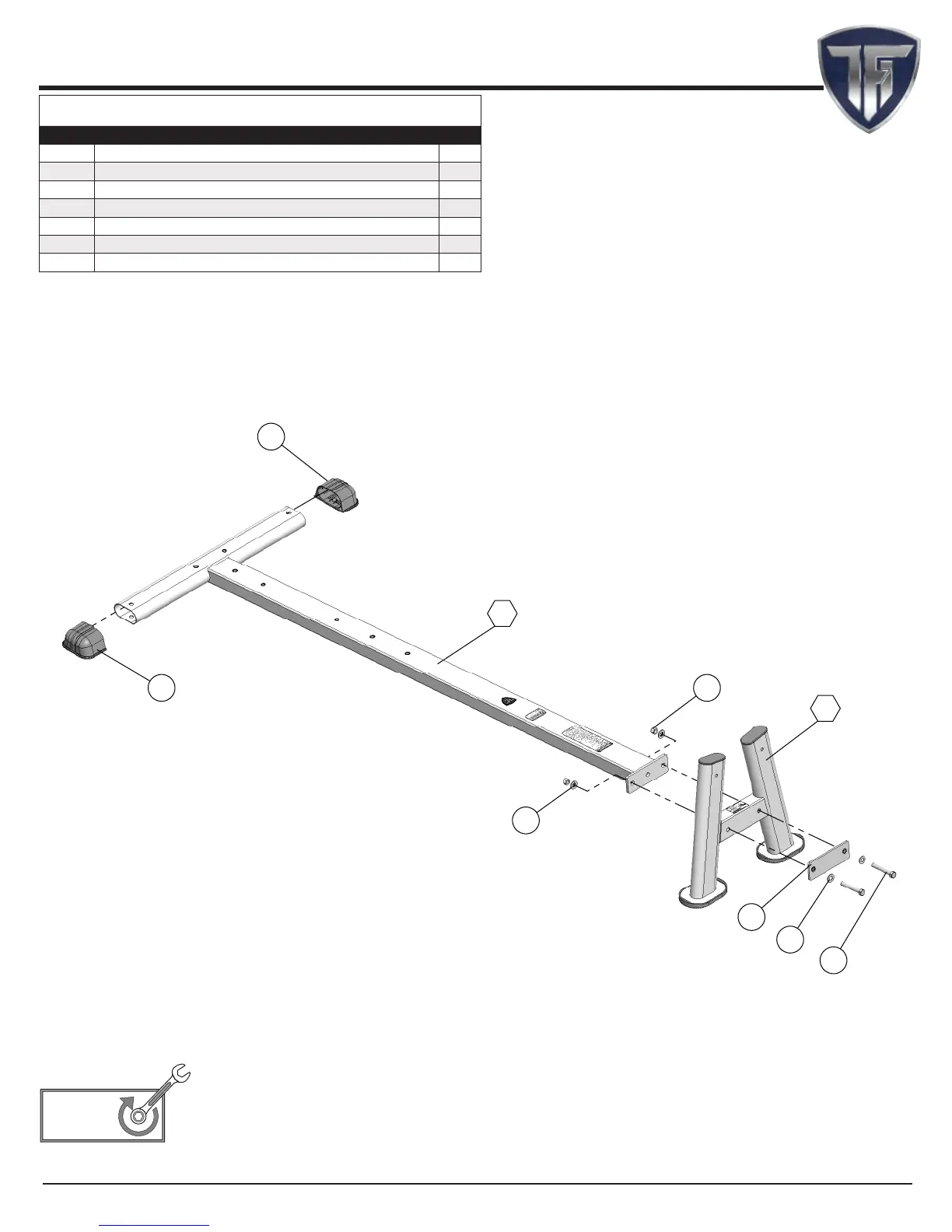

Step 1 Assembly List
Item # Description Qty.
*1 BASE FRAME 1
*2 REAR STABILIZER 1
18 REINFORCEMENT PLATE 1/4 X 2 1/2 X 7 1
21 PLASTIC HORIZONTAL ELLIPTICAL SHOE W/LOCK 2
23 FLAT WASHER SAE Z/P 1/2” 4
33 NYLON INSERT LOCK NUT Z/P 1/2-13 2
35 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 3 3/8 2
Step 1
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
12
NOTE:
1. IT IS STRONGLY RECOMMENDED THAT TWO PEOPLE PARTICIPATE IN THE ASSEMBLY OF THIS
UNIT.
