TuffStuff CLH-300 - Step 4: Upright and Handle Installation

www.tu stu tness.comCLH-300 Horizontal Plate Load Leg Press/Hack Squat
ŗş
řś
Řř
řř
Řř
řř
řŚ
Řř
Řś
řŚ
Řś
Řř
ȘŚ
Șŗŗ
ȘŗŖ
Řş
ŘŘ
ŘŘ
ŘŜ
ŘŘ
ŘŜ

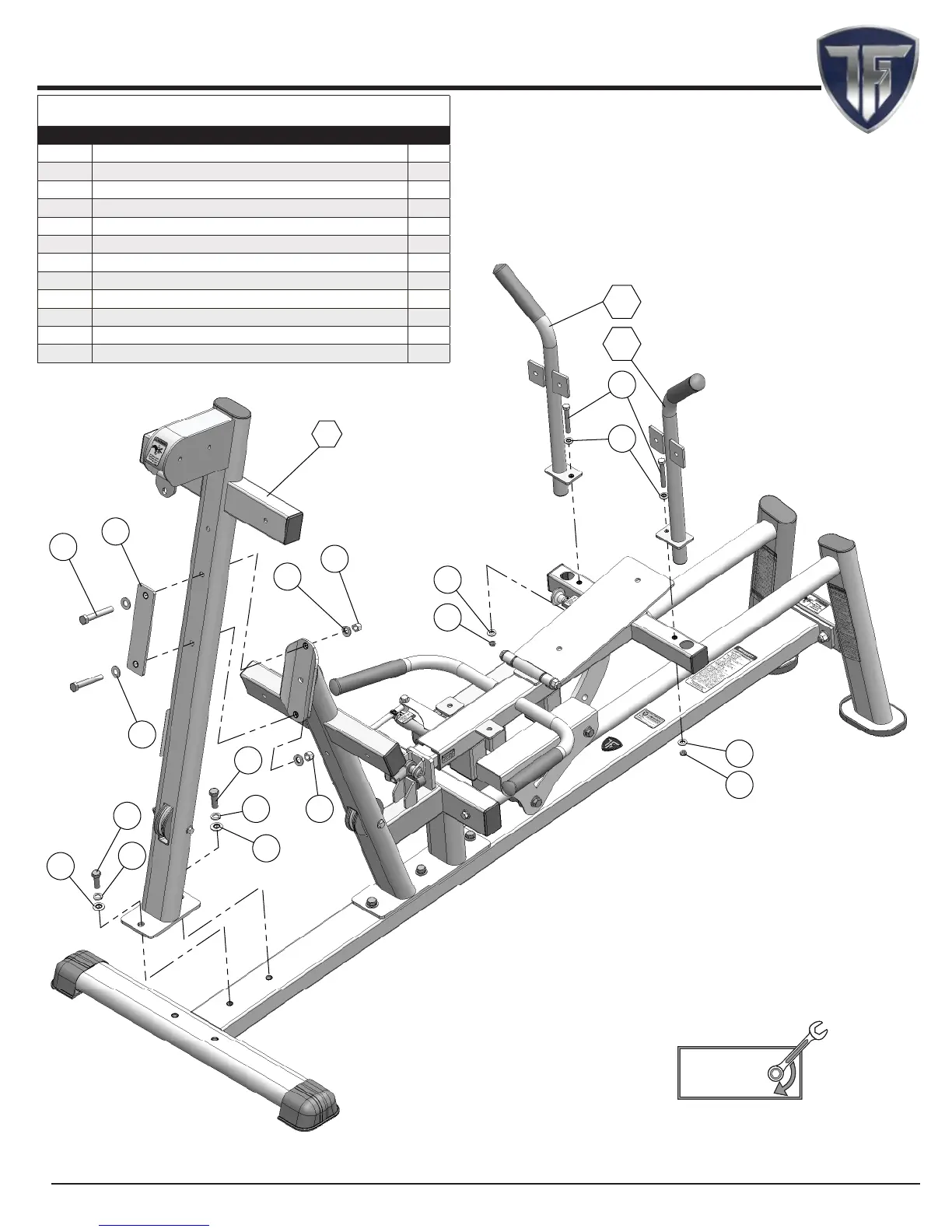

Step 4
15
Step 4 Assembly List
Item # Description Qty.
*4 FRONT UPRIGHT 1
*10 LEFT HANDLE 1
*11 RIGHT HANDLE 1
19 REINFORCEMENT PLATE 1/4 X 2 X 8 1/2 1
22 FLAT WASHER SAE Z/P 3/8” 4
23 FLAT WASHER SAE Z/P 1/2” 6
25 SPLIT LOCK WASHER Z/P 1/2” 2
26 NYLON INSERT LOCK NUT Z/P 3/8-16 2
29 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 2
33 NYLON INSERT LOCK NUT Z/P 1/2-13 2
34 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 1 1/2 2
35 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 3 3/8 2
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
