TuffStuff CLH-300 - Step 5: Carriage Post and Weight Carriage

CLH-300 Horizontal Plate Load Leg Press/Hack Squatwww.tu stu tness.com
ȘŜ
řŚŘś
Řř
ŘŞ
ŘŘ
ŘŘ
ŘŜ
ŞŚ
ŝŞ
Șŝ
ȘŜ
ŝŞ
ŞŚ

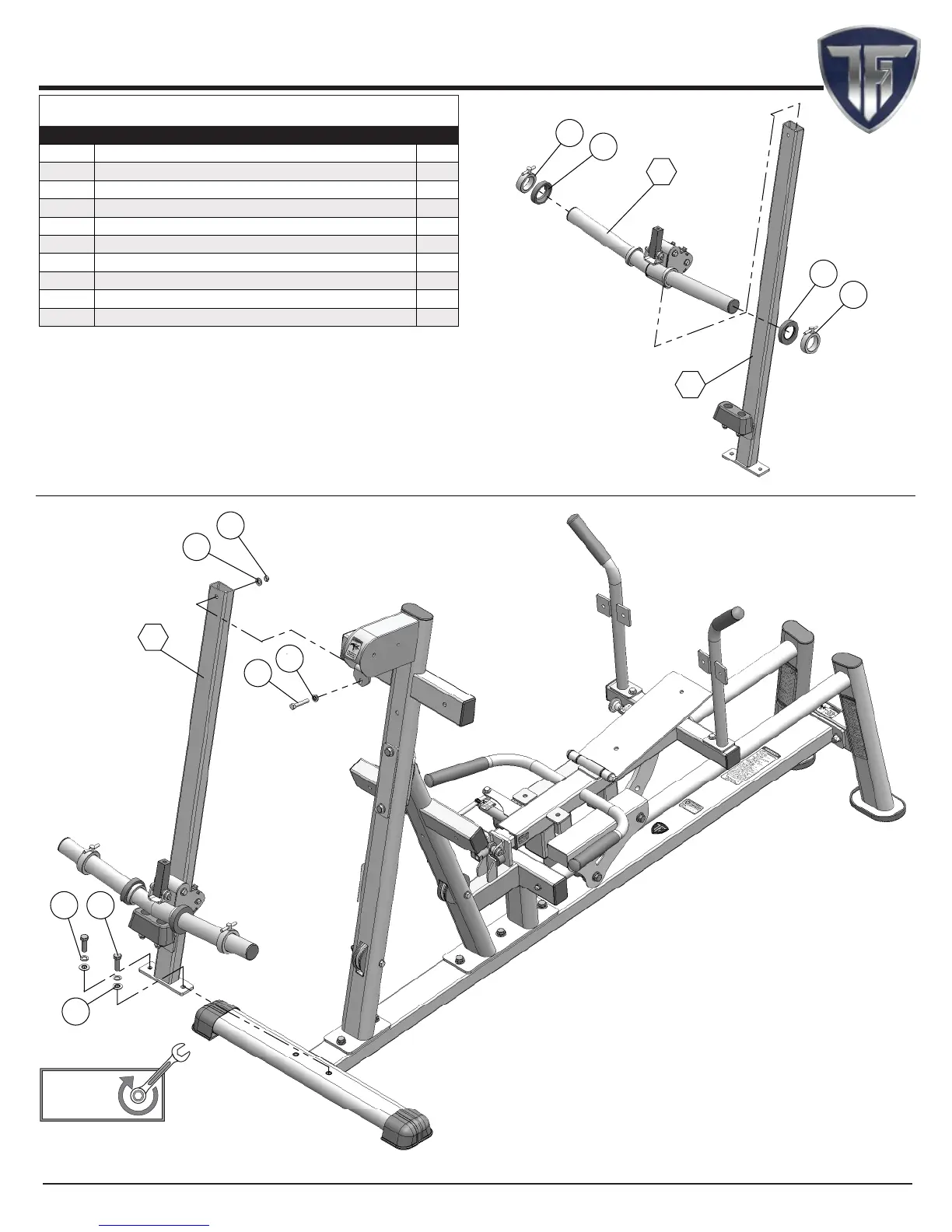

Step 5
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this and
previous loosely tightened steps.
16
Step 5 Assembly List
Item # Description Qty.
*6 FRONT CARRIAGE POST 1
*7 WEIGHT CARRIAGE 1
22 FLAT WASHER SAE Z/P 3/8” 2
23 FLAT WASHER SAE Z/P 1/2” 2
25 SPLIT LOCK WASHER Z/P 1/2” 2
26 NYLON INSERT LOCK NUT Z/P 3/8-16 1
28 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 1/4 1
34 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 1 1/2 2
78 RUBBER WASHER 1 7/8 ID X 4 1/4 OD X 9/16 2
84 WEIGHT COLLAR 49 MM ID X 7/8 X 2 3/4 2
