TuffStuff CLH-300 - Step 6: Cable Routing and Pulley Installation

www.tu stu tness.comCLH-300 Horizontal Plate Load Leg Press/Hack Squat
ŗŜ
ŗŜ
śř
Řś
ŘŖ
Řś
śş
ŜŖ

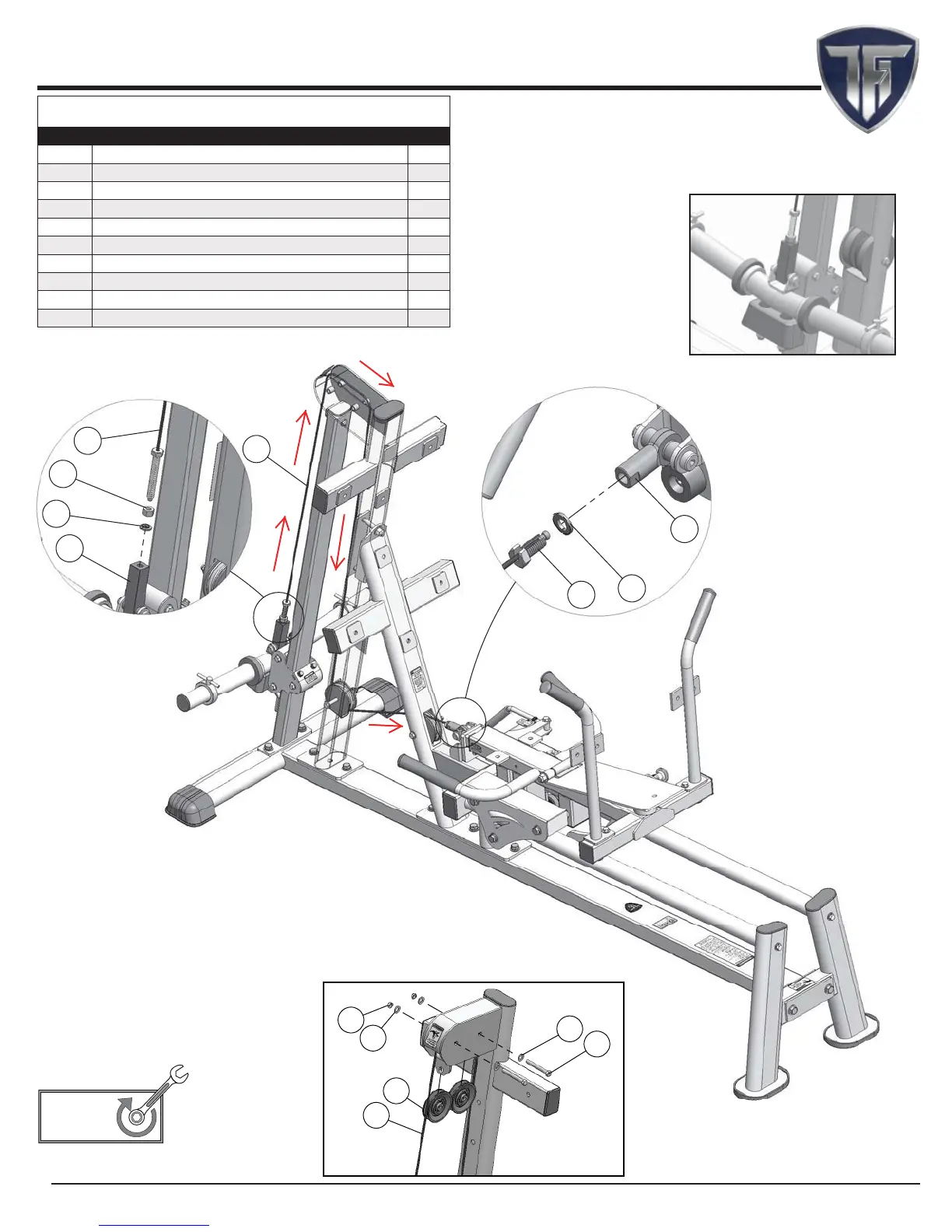

Step 6 Cable Routing
17
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
Step 6 Assembly List
Item # Description Qty.
16 CABLE 1
17 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 2
20 CABLE END THREADED HOUSING 1
22 FLAT WASHER SAE Z/P 3/8” 4
25 SPLIT LOCK WASHER Z/P 1/2” 2
26 NYLON INSERT LOCK NUT Z/P 3/8-16 2
30 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 1/4 2
53 FINISHED HEX NUT B-Z/P 1/2-13 1
59 ROD END 1/2-13 1
60 SPLIT BOLT GR-5 Z/P 1/2-13 X 1 (RND CUT) 1
FIG. A
ŘŜ
ŘŘ
ŘŘ
řŖ
ŗŝ
ŗŜ
INSTALL PULLEYS AFTER ROUTING CABLE AS SHOWN BELOW.
FULLY TIGHTEN BOLT
(#60)
NOTE:
1. BE SURE THE PULLEYS ARE INSTALLED
AND THE WEIGHT CARRIAGE IS FULLY
RESTING ON THE BUMPER PRIOR TO FULLY
FASTENING NUT (#53).
(SEE FIG. A, FIG. B)
FIG. B
