SPECIFICATION AND INSTALLATION
HhC 2020 Dimensions
Exterior
Height 13.0” (330 mm)
--with legs 17.0” (432 mm)
Width 48.3” (1227 mm)
Depth 35.7” (907 mm)
Conveyor
Length 48.3” (1227 mm)
Width (Single) 20.0” (508 mm)
Width (50/50) 9.5” / 9.5” (241 mm / 241 mm)
Width (70/30) 15” / 4” (381 mm / 102 mm)
Electrical Specifications
North America
3 Phase
208/240 VAC
50/60 Hz
40 amp current draw
Max Input: 14.4 kW
4-wire supply
NEMA 15-50P plug (4-pin IEC60309 available by
special order)
50-amp max circuit breaker protection
Europe/Asia (220-240 VAC)
3 Phase
220-240 VAC
50/60 Hz
40 amp current draw
Max Input: 14.4 kW
4-wire supply
IEC60309 4-pin plug
64-amp max circuit breaker protection
Europe/Asia (380-415 VAC)
3 Phase
380-415 VAC
50/60 Hz
20 amp current draw
Max Input: 14.4 kW
5-wire supply
IEC60309 5-pin plug
32-amp max circuit breaker protection
35.7” (907 mm)
48.3” (1227 mm)
8.5”
(216 mm)
13.0”
(330 mm)
17.0”
(432 mm)
4.0” (102 mm)
60.1” (1527 mm) with extensions
43.0”
(1092 mm)
30.0”
(762 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
8.5”
(216 mm)
13.0”
(330 mm)
21.5”
(546 mm)
8.5”
(216 mm)
13.0”
(330 mm)
34.5”
(876 mm)
13.0”
(330 mm)
35.7” (907 mm)
48.3” (1227 mm)
8.5”
(216 mm)
13.0”
(330 mm)
17.0”
(432 mm)
4.0” (102 mm)
60.1” (1527 mm) with extensions
43.0”
(1092 mm)
30.0”
(762 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
8.5”
(216 mm)
13.0”
(330 mm)
21.5”
(546 mm)
8.5”
(216 mm)
13.0”
(330 mm)
34.5”
(876 mm)
13.0”
(330 mm)
35.7” (907 mm)
48.3” (1227 mm)
8.5”
(216 mm)
13.0”
(330 mm)
17.0”
(432 mm)
4.0” (102 mm)
60.1” (1527 mm) with extensions
43.0”
(1092 mm)
30.0”
(762 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
8.5”
(216 mm)
13.0”
(330 mm)
21.5”
(546 mm)
8.5”
(216 mm)
13.0”
(330 mm)
34.5”
(876 mm)
13.0”
(330 mm)
35.7” (907 mm)
48.3” (1227 mm)
8.5”
(216 mm)
13.0”
(330 mm)
17.0”
(432 mm)
4.0” (102 mm)
60.1” (1527 mm) with extensions
43.0”
(1092 mm)
30.0”
(762 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
8.5”
(216 mm)
13.0”
(330 mm)
21.5”
(546 mm)
8.5”
(216 mm)
13.0”
(330 mm)
34.5”
(876 mm)
13.0”
(330 mm)
35.7” (907 mm)
48.3” (1227 mm)
8.5”
(216 mm)
13.0”
(330 mm)
17.0”
(432 mm)
4.0” (102 mm)
60.1” (1527 mm) with extensions
43.0”
(1092 mm)
30.0”
(762 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
13.0”
(330 mm)
8.5”
(216 mm)
13.0”
(330 mm)
21.5”
(546 mm)
8.5”
(216 mm)
13.0”
(330 mm)
34.5”
(876 mm)
13.0”
(330 mm)

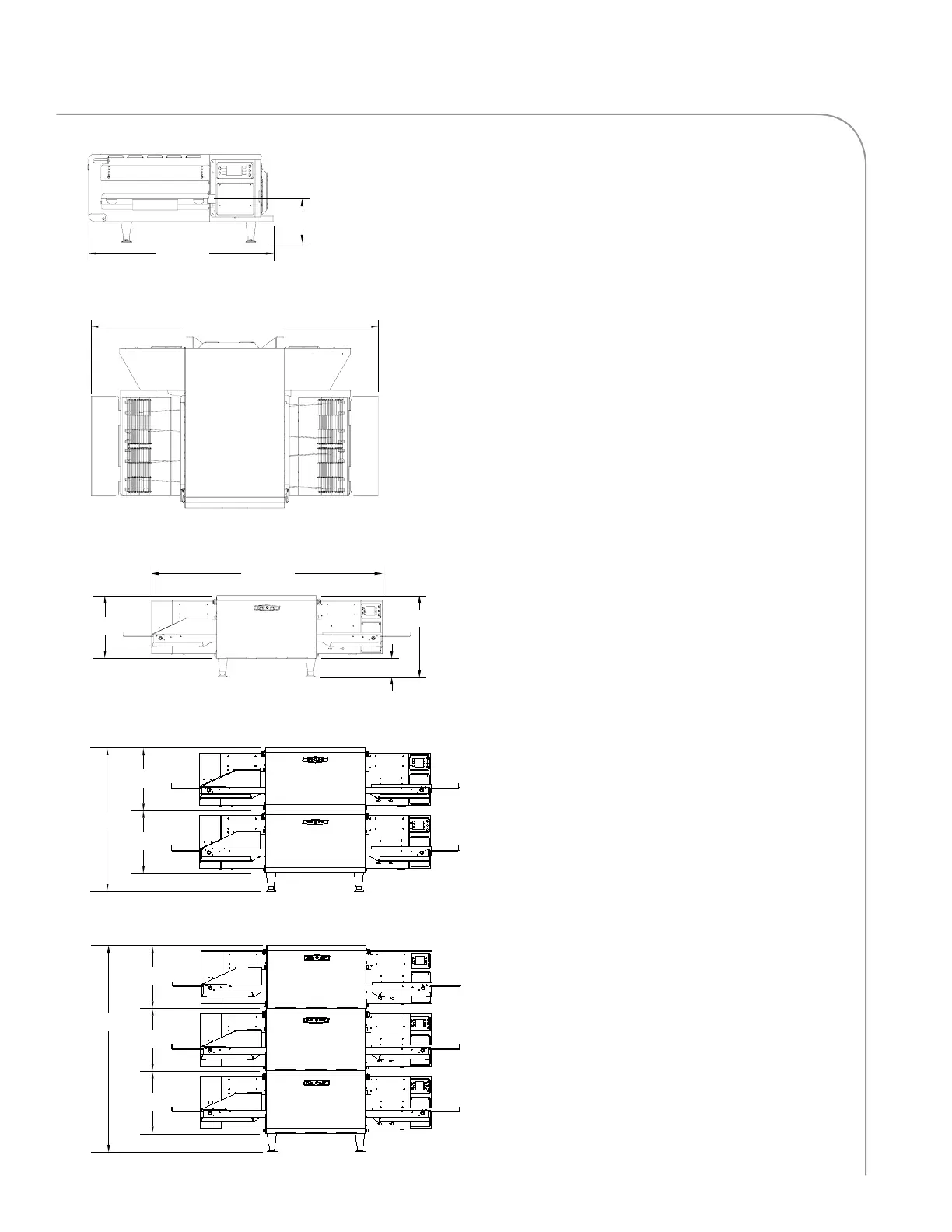

Figure 1: HhC 2020 Oven Dimensions - Side
Figure 2: HhC 2020 Oven Dimensions - Top
Figure 3: HhC 2020 Oven Dimensions - Front (Single)
Figure 4: HhC 2020 Oven Dimensions - Front (Double)
Figure 5: HhC 2020 Oven Dimensions - Front (Triple)

TurboChef 2020 Specifications

General

Dimensions (H x W x D)	25 in x 28.8 in x 26.3 in (635 mm x 732 mm x 668 mm)
Weight	270 lb (122 kg)
Power	208/240V, 60 Hz, 1-phase
Wattage	6200 W
Temperature Range	200°F–500°F (93°C–260°C)
Cavity Dimensions (H x W x D)	10.5 in x 16 in x 15 in (267 mm x 406 mm x 381 mm)
Cavity Volume	1.5 cu ft (42.5 liters)
Cooking Modes	Microwave, Convection, Impingement
Turbo Speed Cooking	Yes
Pre-Programmed Settings	Yes
Exterior Dimensions	25 in x 28.8 in x 26.3 in (635 mm x 732 mm x 668 mm)
Interior Dimensions	10.5 in x 16 in x 15 in (267 mm x 406 mm x 381 mm)
Category	Rapid Cook Oven
