TurboChef 2020 Service Manual

A-8
P
ower Supply and Bracket
Display, VFD
Card Reader
Control Board
Speaker
EMI F
ilter
F

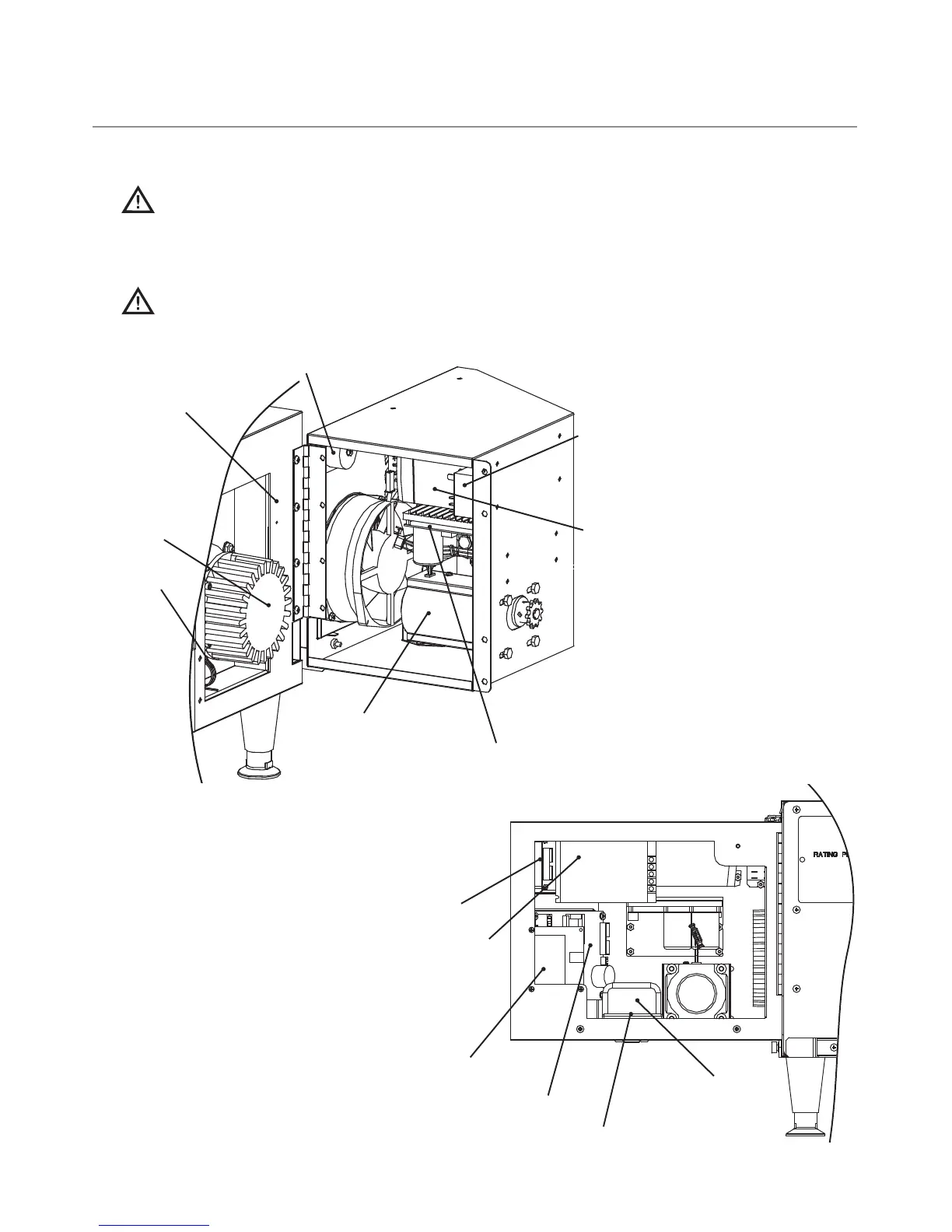

igure A-8: Right End Bell Components, Back Panel Removed
APPENDIX - REPLACING OVEN COMPONENTS
Replacing Items - Right End Bell
WARNING: Before removing or replacing any oven component, thoroughly read the safety
instructions found at the front of this manual and Oven Systems (pages 21-24). Adhere to
all precautions and warnings outlined in these sections, as failure to do so could result in
serious injury or death.
CAUTION: Before removing/installing any component, make sure it is disconnected from
the wire harness (where applicable).
Blo
w
er Motor
Assembly
RTD
Conveyor Motor
Voltage Sensor
Relay, Mechanical, K7
C
on
veyor Controller
Blower Motor Controller
Figure A-7: Right End Bell Components, Right End Bell Open
Thermostat

TurboChef 2020 Specifications

General

Dimensions (H x W x D)	25 in x 28.8 in x 26.3 in (635 mm x 732 mm x 668 mm)
Weight	270 lb (122 kg)
Power	208/240V, 60 Hz, 1-phase
Wattage	6200 W
Temperature Range	200°F–500°F (93°C–260°C)
Cavity Dimensions (H x W x D)	10.5 in x 16 in x 15 in (267 mm x 406 mm x 381 mm)
Cavity Volume	1.5 cu ft (42.5 liters)
Cooking Modes	Microwave, Convection, Impingement
Turbo Speed Cooking	Yes
Pre-Programmed Settings	Yes
Exterior Dimensions	25 in x 28.8 in x 26.3 in (635 mm x 732 mm x 668 mm)
Interior Dimensions	10.5 in x 16 in x 15 in (267 mm x 406 mm x 381 mm)
Category	Rapid Cook Oven
