turbofan E28D4 Service Manual

Service Procedures
15
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

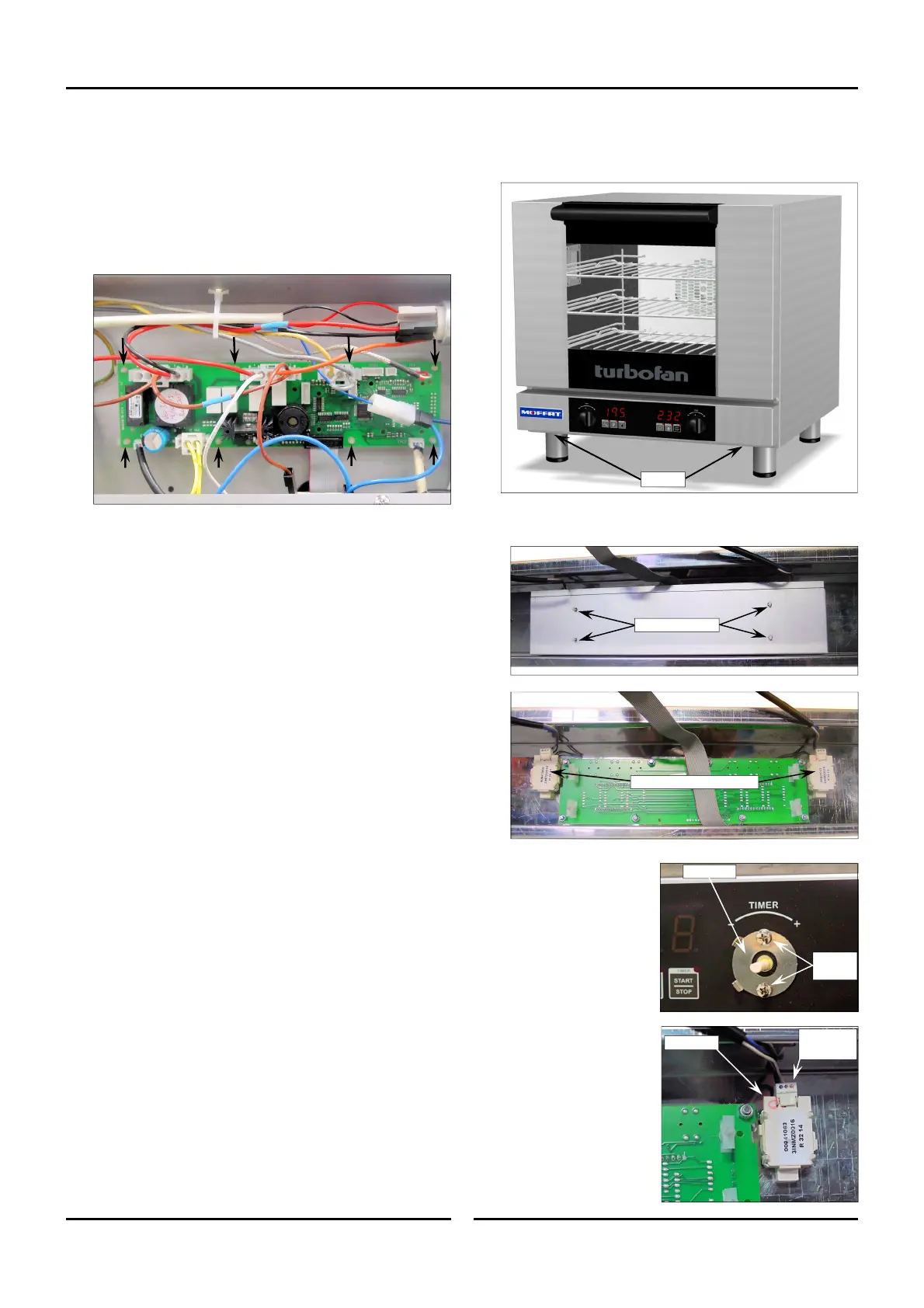

To remove the Rear Control Board:-
 Note position of connectors before disconnecting plugs
from control board.
1. Disconnect plugs from the rear control board.
2. Using pliers, carefully compress the 8 plastic fasteners securing
the rear control board to the electrical panel and remove the
rear control board.
3. Fit replacement rear control board to the electrical panel.
4. Re-connect plugs to rear control board, noting position of
connectors when re-fitting.
5.1.2 Time - Temp Encoders.
1. Remove 2 screws on underside of control panel and remove
control panel.
2. Using pliers, carefully compress the 4 plastic fasteners securing
the cover over the front display board and remove the cover.
3. Pull off the Timer and Temp
control knobs from the
control panel. These are a
push fit.
4. Remove 2 securing screws
and knob stop plate.
5. Unplug cables from encoder
and remove encoder from
rear of control panel.
6. Refit in reverse order.
Encoder
Disconnect
Plug
Remove
Screws
Stop Plate
Time and Temp Encoders
Screws
Plastic Fasteners
