turbofan E28D4 Service Manual

Service Procedures
17
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

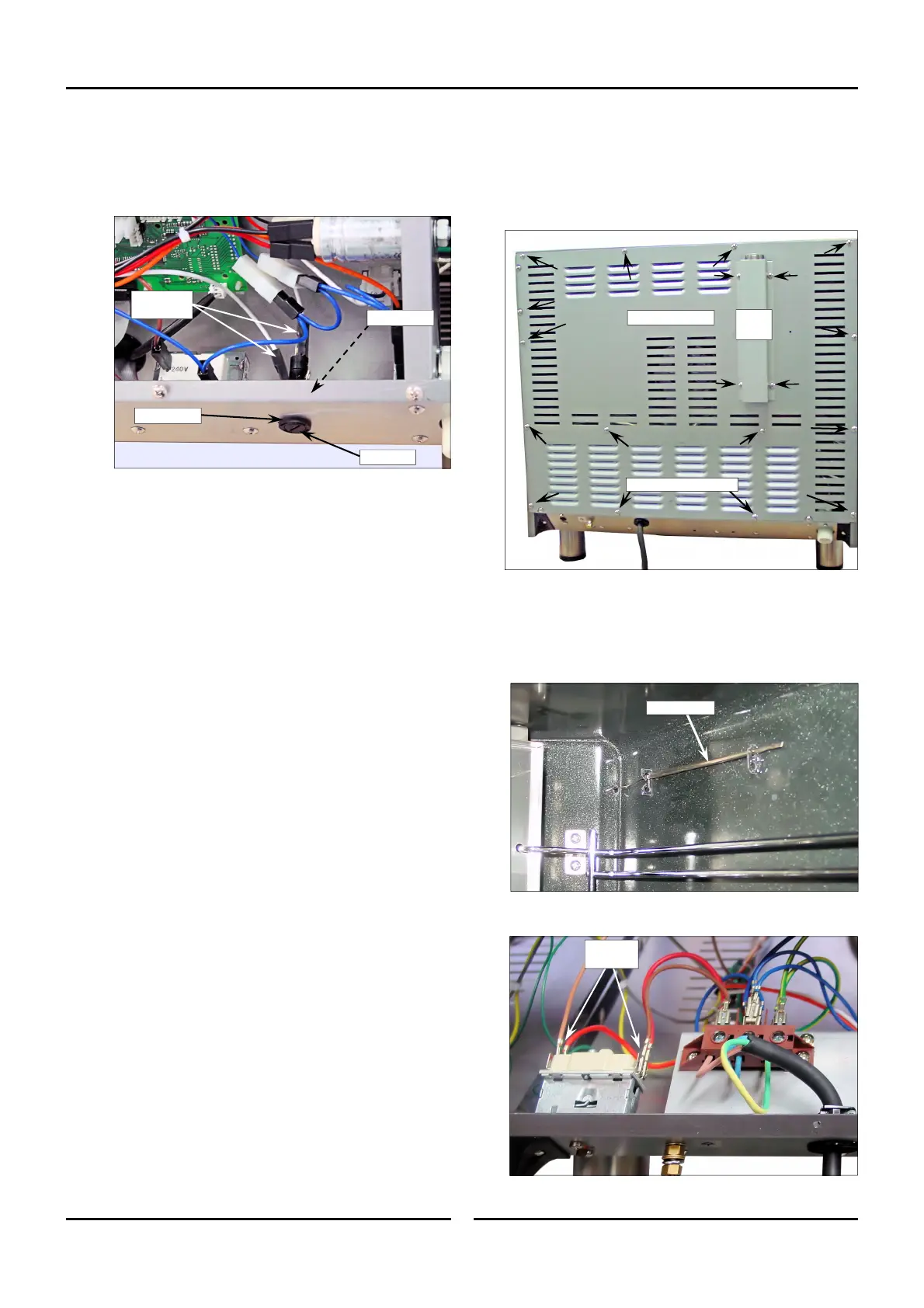

Fuse (E27D3 - E28D4 Only):-
1. Using a flat bladed screwdriver, unscrew the fuse cap and
remove the cap and fuse.
2. Refit a replacement fuse into the cap and refit cap and fuse into
fuse holder.
Fuse Holder (E27D3 - E28D4 Only):-
1. Remove wires from the fuse holder.
2. Press in the locking tabs at the rear of the fuse holder and push
out the fuse holder from the oven rear.
3. Replace fuse holder and refit in reverse order.
Locking Tabs
Disconnect
Wires
Fuse Holder
Fuse Cap
5.1.4 Overtemp Thermostat /
Temperature Probe
Remove Rear Access Panel:-
1. At the rear of the oven, remove the vent shroud and rear
access panel.
Overtemp Thermostat:-
1. Unhook back of phial from the phial holder inside the oven.
2. Pull phial towards back of oven to remove from front holder.
3. Remove phial through rear of oven.
4. Remove wires from the overtemp.
Unhook Phial
Just Loosen Screws
Remove Screws
Vent
Shroud
Disconnect
Wires
