turbofan E28D4 Service Manual

Service Procedures
22
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1
5.1.7 Water Solenoid /
Spray Nozzle
1. Remove centre and side racks from the oven.
2. At the rear of the oven, remove the vent shroud and rear
access panel.
3. Remove the fan baffle securing screw (E27-E28 / 2 Screws).
4. Turn off water supply to the oven.
5. Disconnect the hose connection to the oven at the oven / water
connection point.
3. Remove 3 screws securing element in oven.
4. Withdraw the element and gasket from oven.
5. Replace in reverse order ensuring that the new element gasket
supplied with the element, is fitted.
6. Refit oven fan baffle and racks to the oven.
7. Refit oven rear access panel and vent shroud.

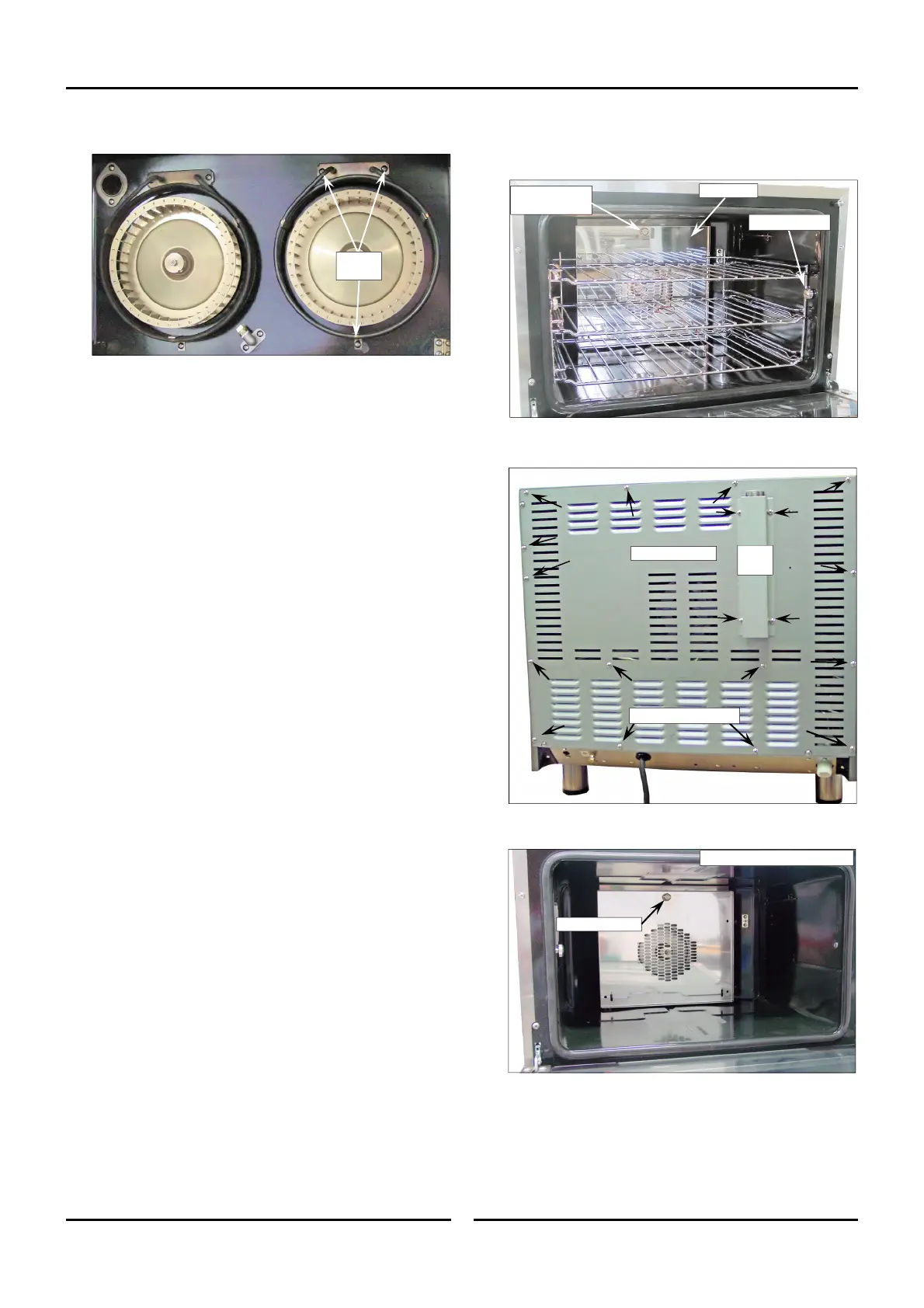

Securing
Screws
Securing Screw
Fan Baffle
Securing Screw
Fan Baffle
Just Loosen Screws
Remove Screws
Vent
Shroud
E23D Fan Baffle Shown.
Remove Screw
