Service Procedures
23
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

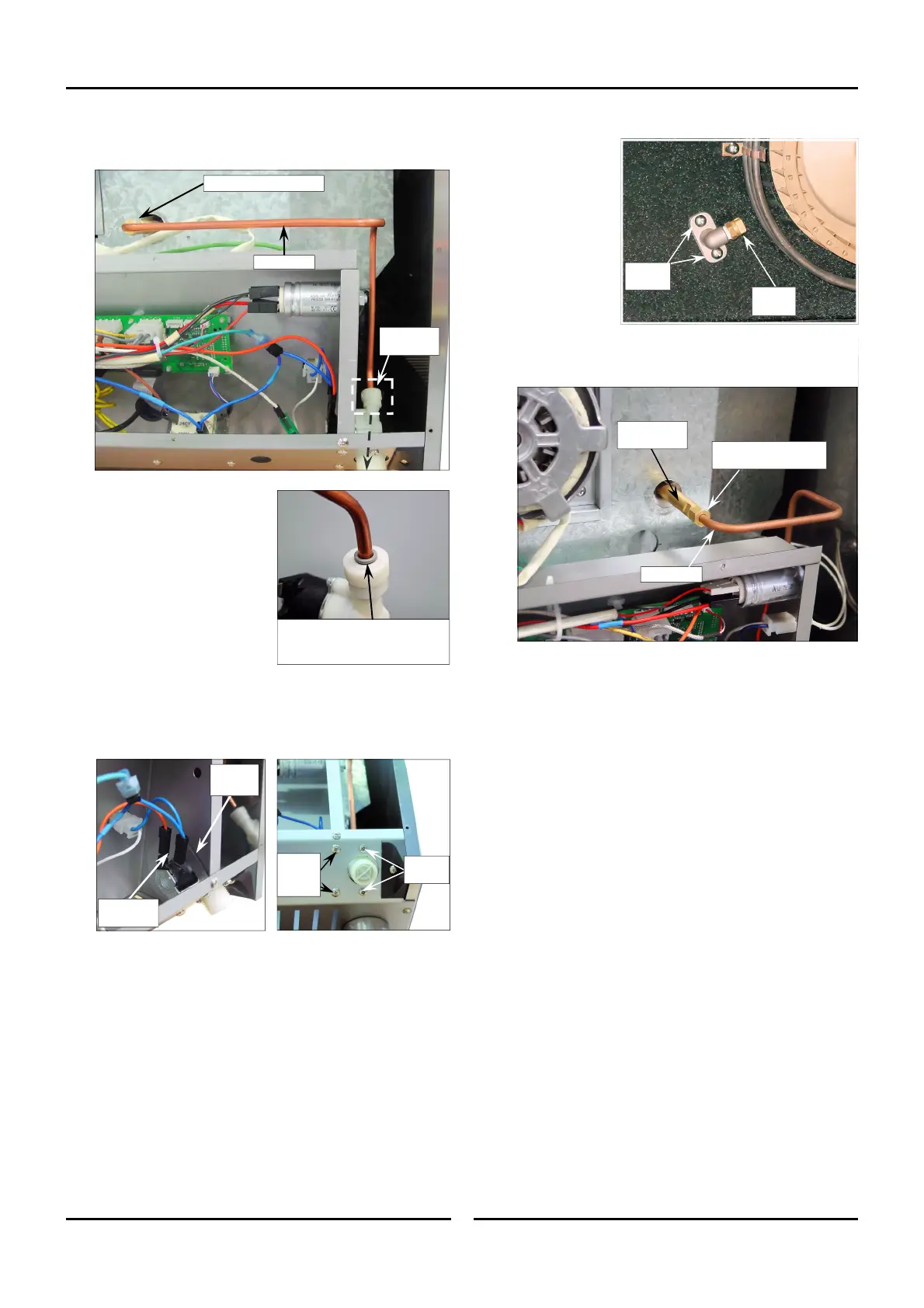

Spray Nozzle
1. To replace spray
nozzle, unscrew the
spray nozzle out of
the fixing inside the
oven.
2. To replace the water
elbow assembly,
remove the 2 screws
securing the water
elbow assembly to
the oven.
3. At the rear of the oven, unscrew and remove the copper pipe,
nut and olive from the water elbow assembly.
4. From inside the oven withdraw the water elbow assembly and
gasket and refit in reverse order ensuring that a new gasket is
fitted.
5. Re-connect the hose connection to the oven at the oven /
water connection point.
6. Turn ‘On’ the water supply to the oven and check for leaks.
7. Refit the fan baffle.
8. Refit the centre and side racks to the oven.
9. At the rear of the oven, refit the rear access panel and the vent
shroud.
Remove
Screws
Spray
Nozzle
Unscrew and Remove
Nut and Olive
Water Elbow
Assembly
Water Pipe
Water Solenoid
1. Loosen copper pipe connection into oven at the brass fitting.
2. Disconnect the copper pipe
connection to the solenoid valve
by pressing down on the grey
ring of the quick fit connector
and pulling up on the copper
pipe.
3. Disconnect electrical connection to the water solenoid.
4. Remove the 2 screws securing the solenoid blanking plate and
remove the blanking plate.
5. Remove the 2 screws securing the solenoid into the oven and
remove the solenoid.
6. Remove and replace the water solenoid.
Solenoid
Screws
Blanking
Plate
Screws
Blanking
Plate
Disconnect
these Wires
Press down on Grey Ring to
release copper pipe from Water
Solenoid Quick Release Connector .
Loosen this Connection
Water Pipe
Disconnect
here
To Next Page
