turbofan E28D4 Service Manual

Service Procedures
25
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

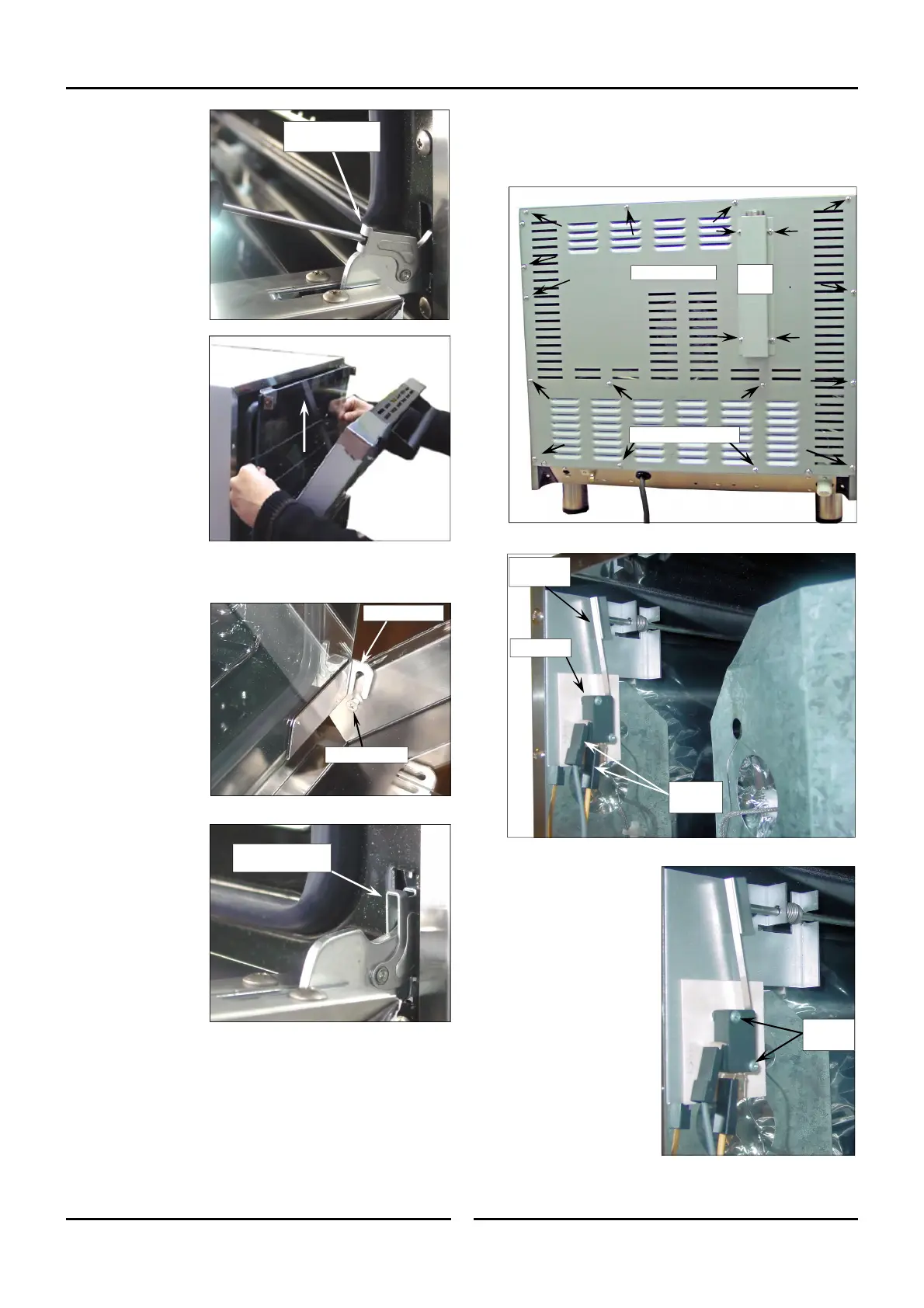

3. Raise the door until
it is restrained by
the door lock
catches.
4. Grasp inner glass
firmly on either side
and pull upwards to
remove inner glass
from locating pegs
on either side of
door.
Glass Replacement
1. To replace door
inner glass, locate 2
locating tabs on
either side of inner
glass into 2 pegs on
door and push down
on inner glass until
it locks firmly into
position.
2. Lower the inner
glass back into the
door, the glass will
locate itself in the
correct position.
3. Open the oven door
fully and using a
suitable instrument,
move door lock
catches to the
unlocked position.
NOTE: Check that both Door Lock Catches are in the
‘Un-Locked’ position before closing the door.
4. Close the oven door.
Door Lock Catch in
Locked Position
Locating Tab
Locating Peg
Door Lock Catch in
Unlocked Position
5.1.9 Door Microswitch
1. At the rear of the oven, remove the vent shroud and rear
access panel.
2. Remove wires from the microswitch.
3. Unscrew 2 screws and
remove microswitch from
rear of oven.
4. Refit replacement
microswitch in reverse order
5. Check microswitch
adjustment once the
replacement microswitch is
fitted.
6. Refit oven rear access panel
and vent shroud.
Disconnect
Wires
Microswitch
Microswitch
Arm
Remove
2 Screws
Just Loosen Screws
Remove Screws
Vent
Shroud
