Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

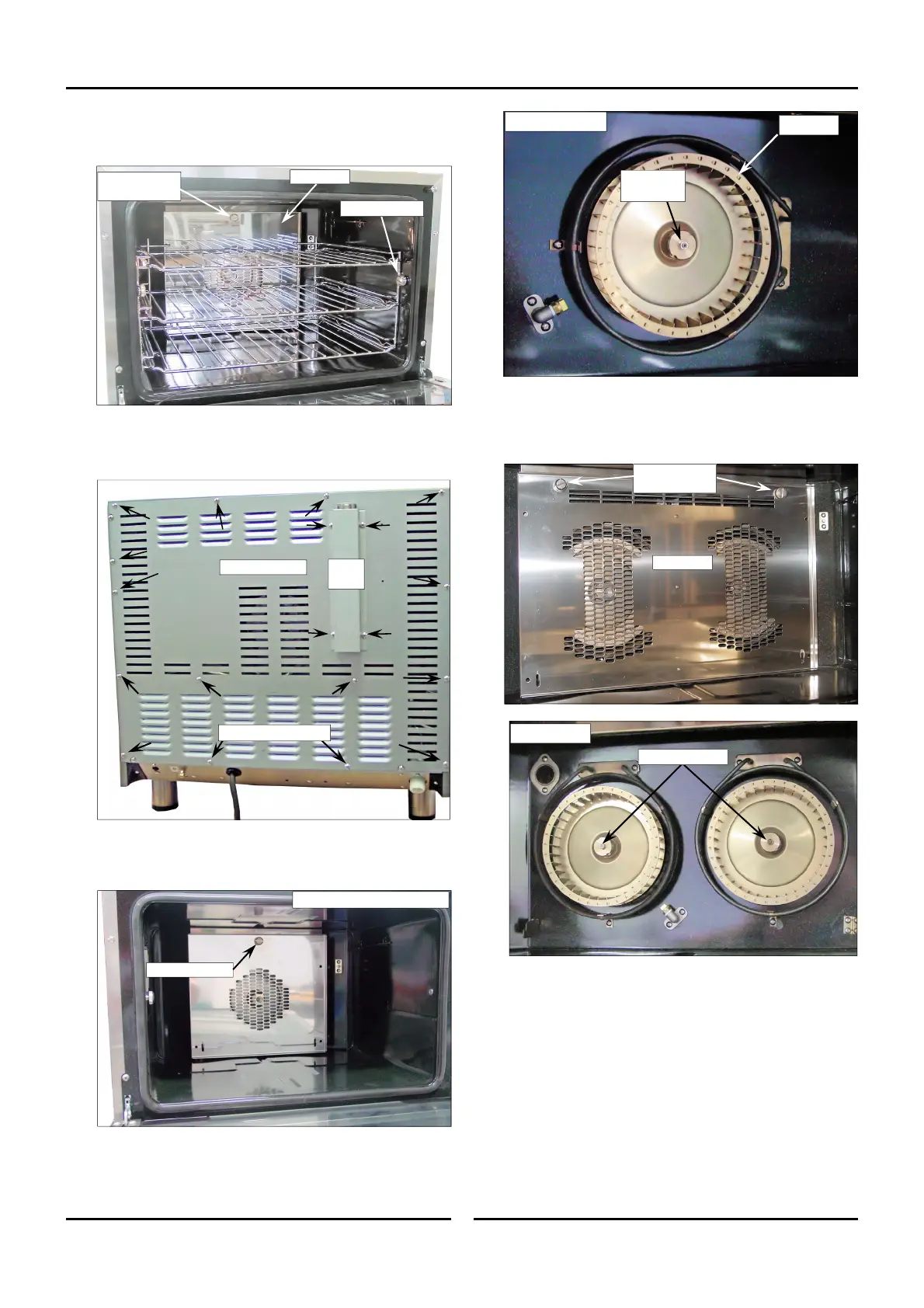

5.1.5 Fan / Motor Removal
1. Remove centre and side racks from the oven.
2. At the rear of the oven, remove the vent shroud and rear
access panel.
Fan Motor (E23 / E27):-
1. Remove the fan baffle securing screw (E27, 2 Screws).
Securing Screw
Fan Baffle
Securing Screw
Fan Baffle
Just Loosen Screws
Remove Screws
Vent
Shroud
E23D Fan Baffle Shown.
Fan Motors (E28):-
1. Remove the fan baffle securing screws.
Fan Baffle
Securing Screws
Fan Baffle
Fan Securing
Nut (13mm)
Oven Fan
E23 / E27 Fan
Remove Screw
Fan Securing Nuts
E28 Fans
