Service Procedures
20
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

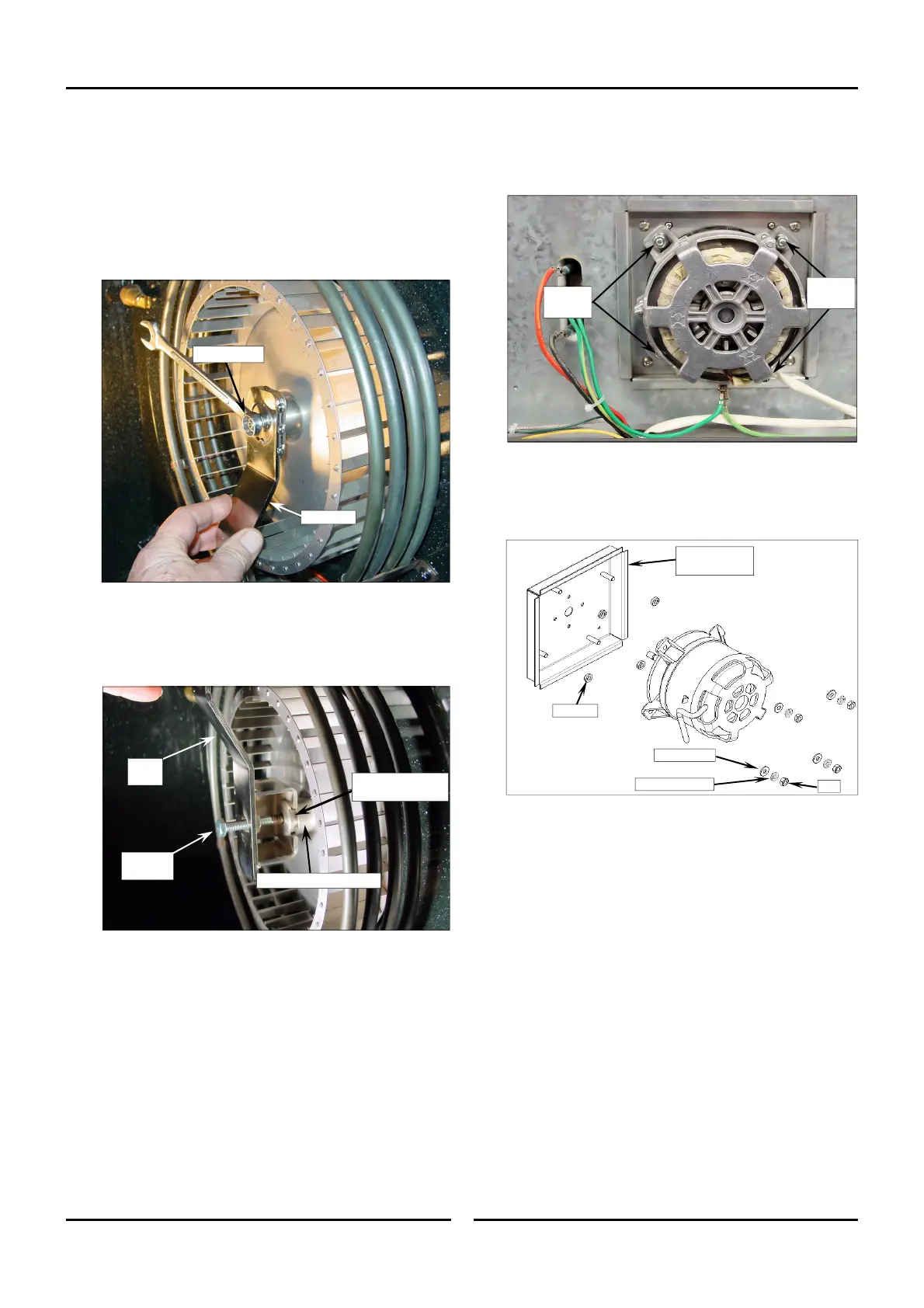

Fan Removal (All Models):-
NOTE: A Fan / Gear Puller, a 13mm Spanner and a source of
heat may be required to remove the fan from fan motor.
1. Whilst holding the fan stationary using the rear of the fan
puller, undo the securing nut and unscrew only until nut is flush
with the end of the motor shaft.
NOTE: Do not remove the Fan Securing Nut.
2. Fit the fan puller into recess in fan spindle and tighten puller
bolt to apply pressure to the fan.
3. Apply heat to the fan boss whilst tightening fan puller bolt until
fan is released from the motor shaft.
4. Remove fan puller, fan securing nut and remove the fan.
Fan Puller
Securing Nut
Fan
Puller
Fan Puller
Bolt
Ensure Puller is
located in Groove
Apply Heat in this area.
Motor Removal (All Models):-
1. At the rear of the oven, disconnect motor wires from motor
connection block, note the wire positions.
2. Remove Motor securing Nuts, Spring Washers, Flat Washers.
3. Ensure that the 4 spacers are located on the 4 studs fitted to
the motor mounting plate.
4. Replace Motor and secure with Flat Washers, Spring Washers
and Nuts.
5. Reconnect motor wires to connection block, note wire positions.
6. Refit oven fan, fan baffle and racks to the oven
7. Refit oven rear access panel and vent shroud.
Remove
Nuts
Remove
Nuts
Spacer
Nut
Spring Washer
Flat Washer
Motor Mounting
Plate
To Next Page
