turbofan E28D4 Service Manual

Service Procedures
16
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1
5.1.3 Capacitor(s) /
Heating Relay /
Transformer /
Fuse / (E27D3 / E28D4 Only)
Fuse Holder (E27D3 / E28D4 Only)

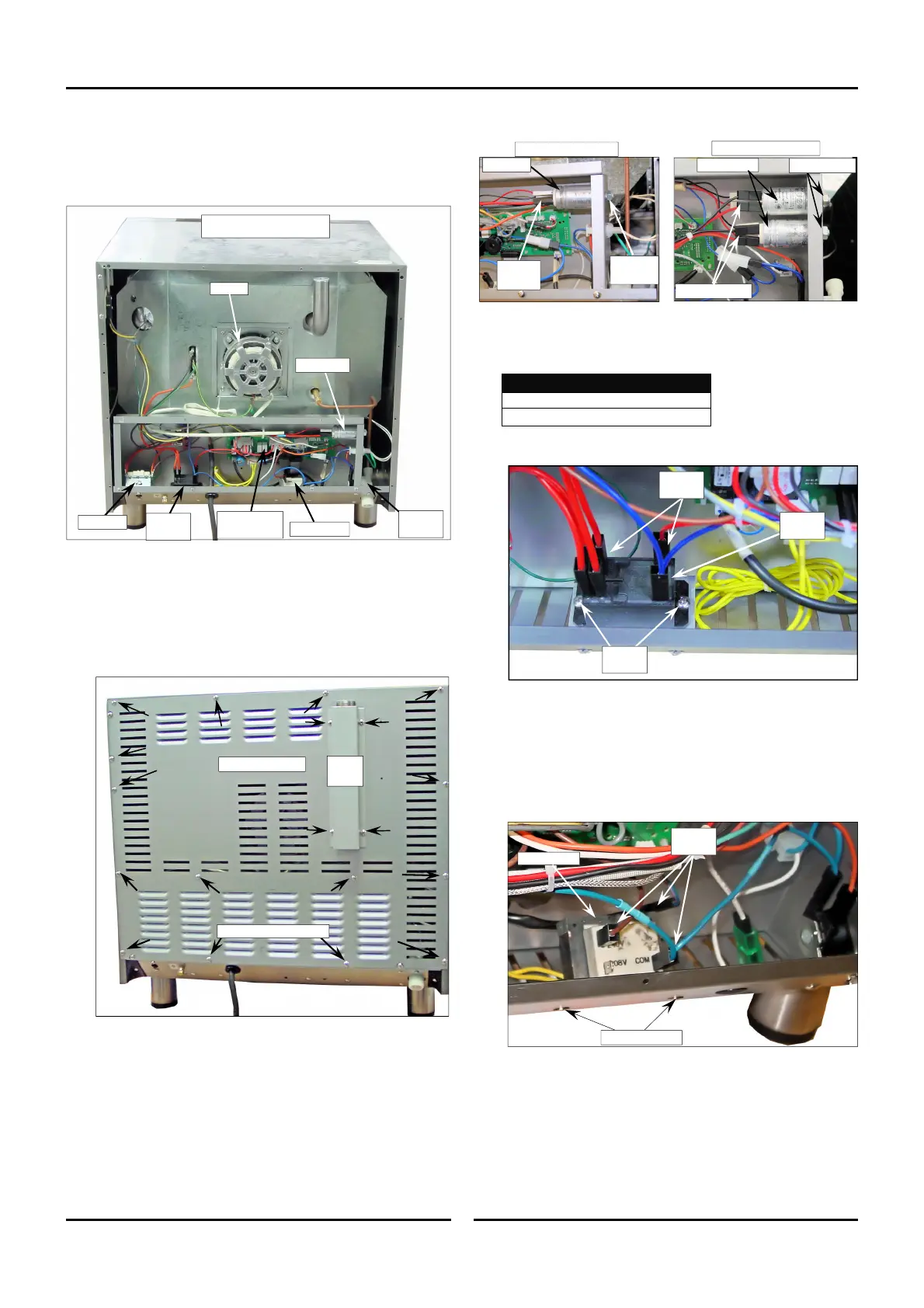

Remove Rear Access Panel:-
1. At the rear of the oven, remove the vent shroud.
2. Remove the rear access panel.
Capacitor(s):-
1. Remove wires from rear of capacitor.
2. Remove securing nut.
3. Replace capacitor and refit in reverse order.
Heating Relay:-
1. Disconnect all electrical connections to the heating relay.
2. Undo the 2 screws securing the heating relay to the rear of the
oven.
3. Remove the heating relay from the oven.
4. Refit the replacement heating relay in reverse order.
Transformer:-
1. Disconnect all electrical connections to the transformer.
2. Undo the 2 screws securing the transformer to rear of oven.
3. Remove the transformer.
4. Refit the replacement transformer in reverse order.
Securing Screws
Remove
Wires
Transformer
Heating
Relay
Securing
Screws
Remove
Wires
Remove Nuts
Remove Wires
Capacitors
E27D3 & E28D4 only
E23D & E27D2 Only
Remove
Nut
Capacitor
Remove
Wires
Capacitor Specifications
Motor Capacitor, 5uF - 208 - 240V.
Motor Capacitor, 6uF - 200V.
E23D Oven Shown.
Water
Solenoid
Rear Control
Board
Motor
Capacitor
Transformer
Heating
Relay
Overtemp
Just Loosen Screws
Remove Screws
Vent
Shroud
