turbofan E28D4 Service Manual

Service Procedures
21
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

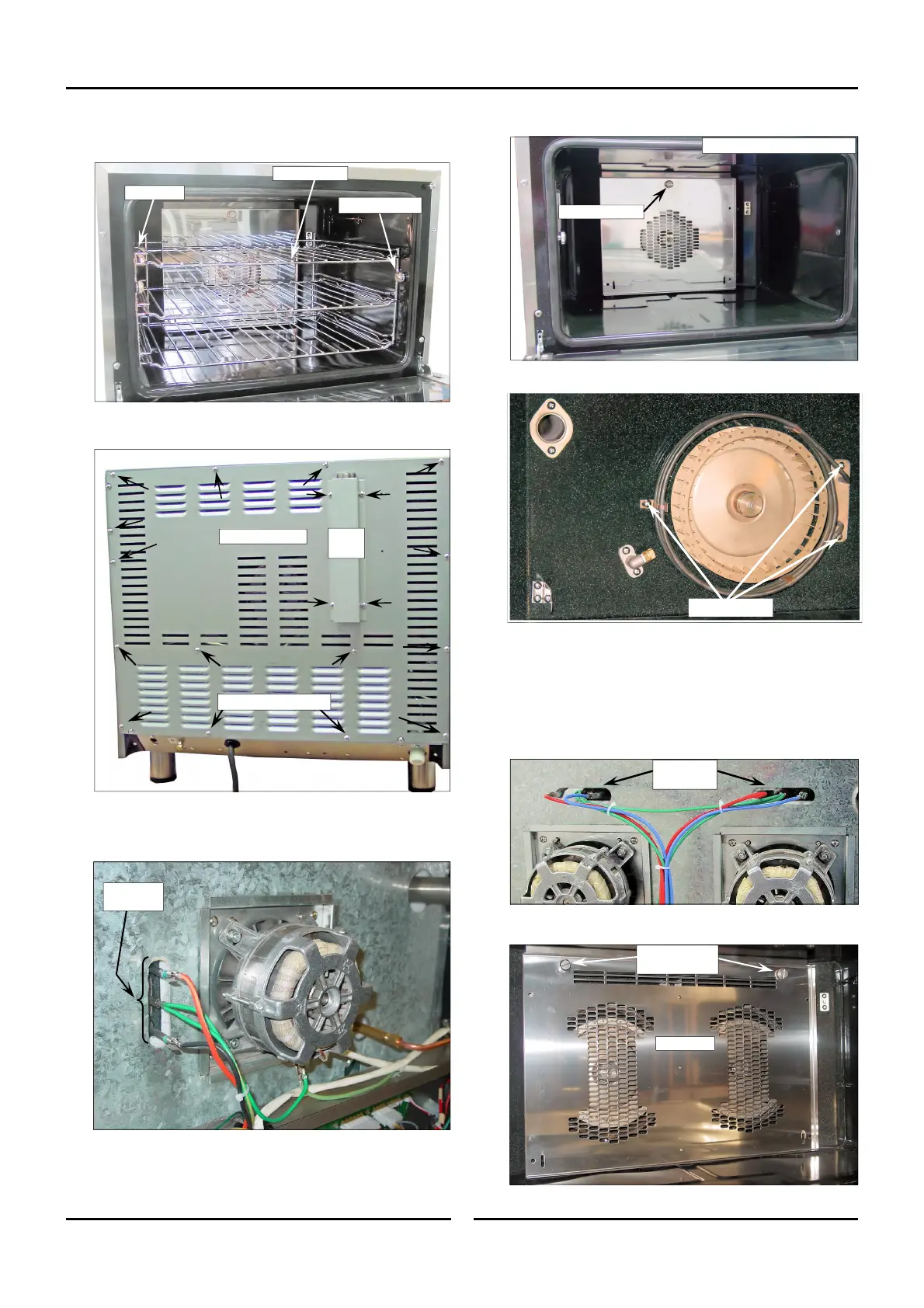

5.1.6 Element(s)
1. Remove centre and side racks from the oven.
2. At the rear of the oven, remove the vent shroud and rear
access panel.
To Replace Heating Element (E23 / E27):-
1. Disconnect element wires from terminals.
Disconnect
these Wires
2. From inside oven, remove the fan baffle.
3. Remove the 3 screws securing the element in the oven.
4. Withdraw the element and gasket from the oven.
5. Replace in reverse order ensuring that the new element gasket
supplied with the element, is fitted.
To Replace Heating Elements (E28):-
1. Disconnect element wires from terminals.
2. From inside oven, remove the fan baffle.
Disconnect
these Wires
Securing Screws
Securing Screw
Centre Racks
Just Loosen Screws
Remove Screws
Vent
Shroud
E23D Fan Baffle Shown.
Remove Screw
Fan Baffle
Securing Screws
Fan Baffle
Side Racks
