turbofan E28D4 Service Manual

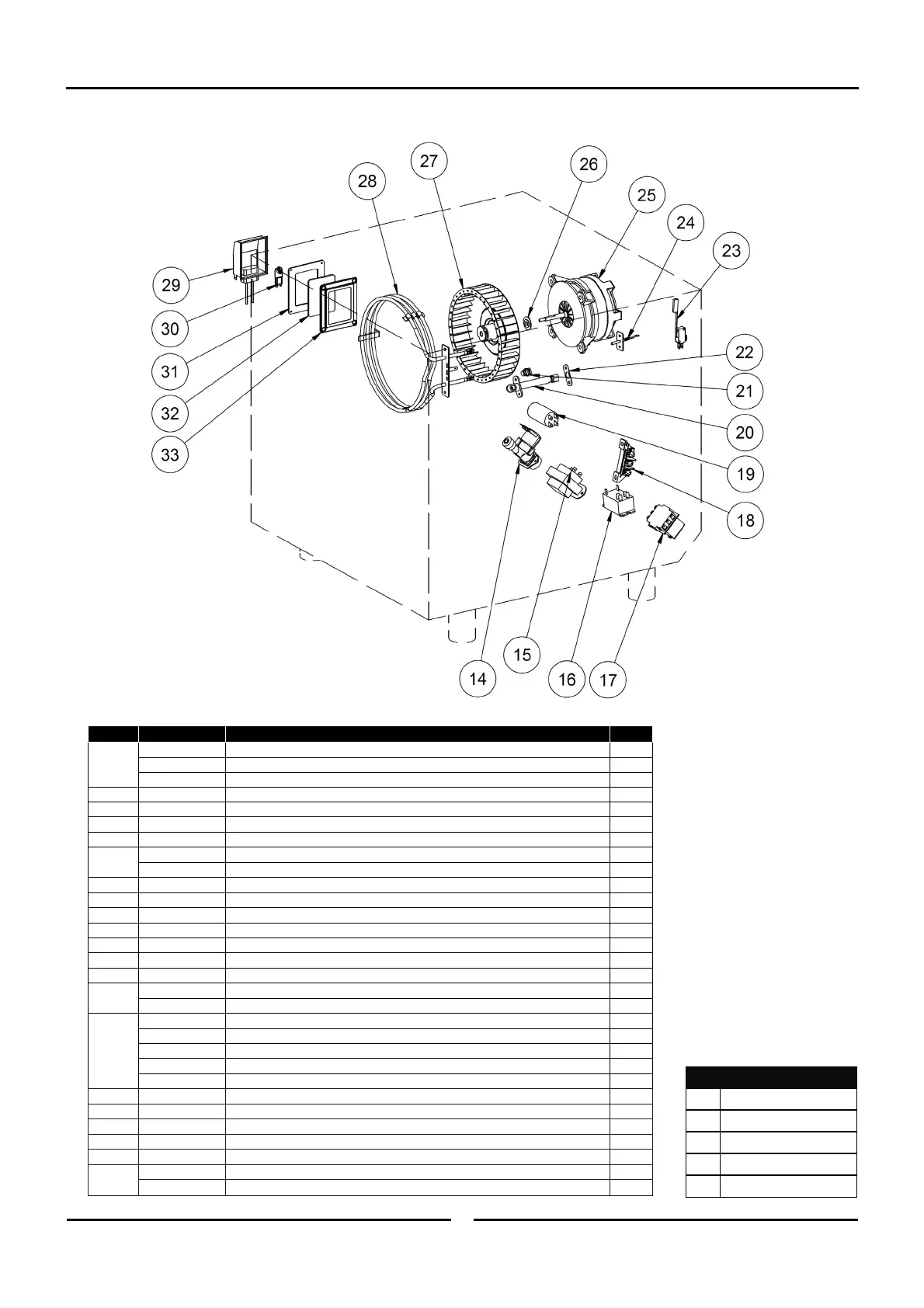

Exploded Parts List
39
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1
ITEM PART No. DESCRIPTION *RPL
238981 WATER SOLENOID 180° JG1/4" 240V RPE A
025922 ADAPTOR 3/4” BSP/GHT, BRASS (USA / CA / MX ONLY).
021527 WASHER RUBBER 23 X 14.5 X 1.5MM (USA / CA / MX ONLY).
15 234429 TRANSFORMER 208/240V x 12VAC SEC 20VA B
16 238881 RELAY DPST HF92F 30A 240VAC B
17 234821 OVERTEMP THERMOSTAT 355°C-20K 55.33579.030 A
18 026160 TERMINAL BLOCK D
19
234251 CAPACITOR 5µF, 208-240V B
237336 CAPACITOR 6µF, 200V B
20 238983 WATER ELBOW ASSEMBLY D
21 021057 SPRAY NOZZLE C
22 238986 GASKET - WATER ELBOW A
23 233862 MICROSWITCH A
24 237447K TEMP PROBE KIT DIGITAL B
25 237337 FAN MOTOR L7- EB25 2 POLE 1 SPEED B
26 238989 MOTOR SHAFT SEAL B
27
234137 FAN B
235420 FAN PULLER / TIGHTENER (not shown) C
28
234088
OVEN ELEMENT 2800W 240V - E23D3 / E27D2
B
234089
OVEN ELEMENT 2800W 220V - E23D3 / E27D2
B
234108
OVEN ELEMENT 4500W 240V - E27D3
B
234107
OVEN ELEMENT 4500W 220V - E27D3
B
236264 ELEMENT GASKET (Not shown) B
29 232108 LAMPHOLDER G9 HALOGEN B
30 231814 LAMP BULB G9/25W, HALOGEN A
31 021352 GLASS LENS A
32 021354 GASKET A
33 021353 SUPPORT FRAME A
34
234802
FUSE HOLDER - E27D3 ONLY
D
234803 FUSE 10 AMP - E27D3 ONLY A
14
Element and Motor - E23D / E27D
*Recommended Parts Level
RPL Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
