turbofan E28D4 Service Manual

Exploded Parts List
41
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

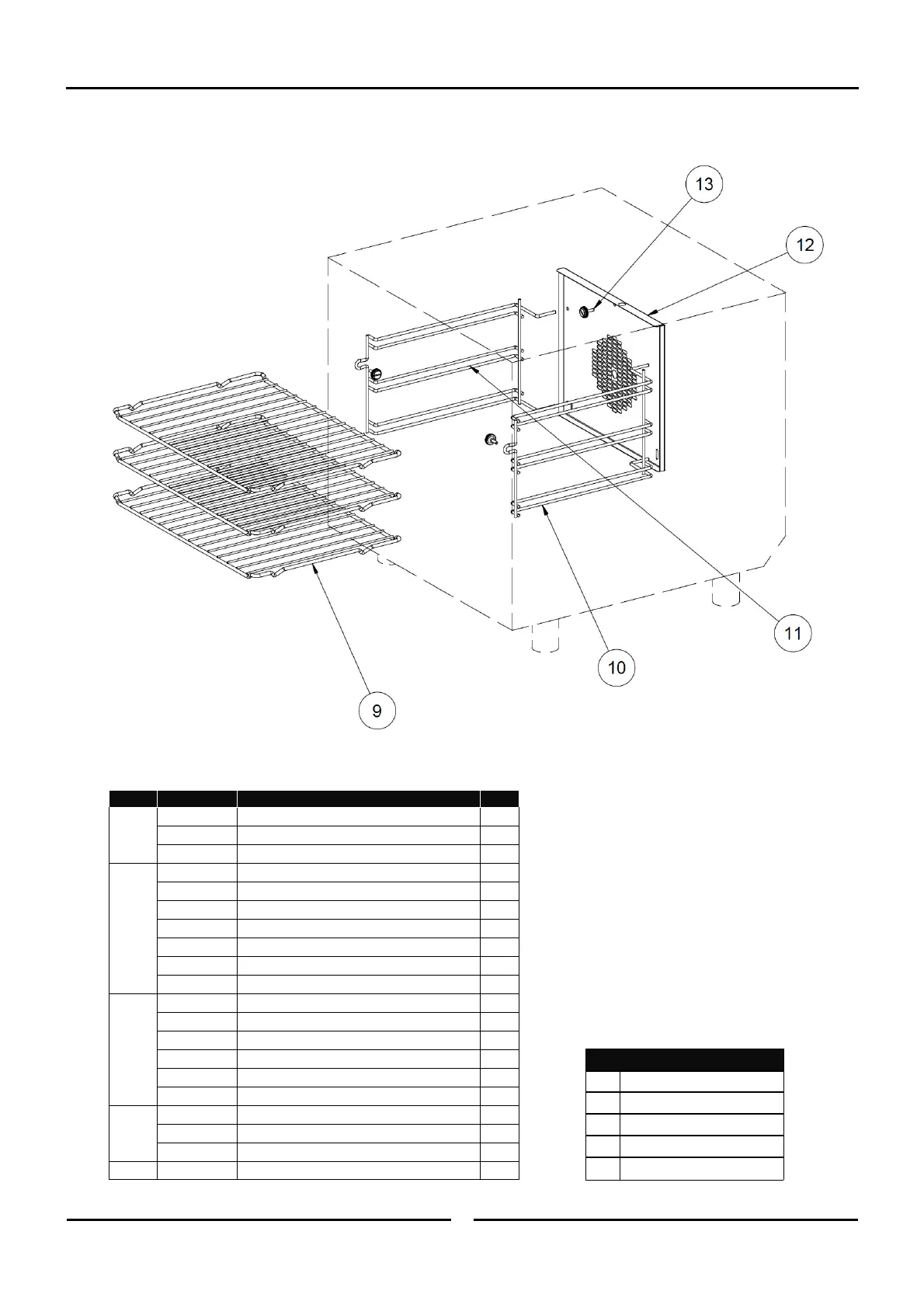

Oven Racks - All Ovens
ITEM PART No. DESCRIPTION *RPL
9
233564 OVEN RACK E23 D
233565 OVEN RACK E27, E28 D
238220 OVEN RACK E27, E28, 600 x 400 D
10
232683 SIDE RACK RH E23 D
234722 SIDE RACK RH E27, 2 Tray D
233559 SIDE RACK RH E27, 3 Tray D
238215 SIDE RACK RH, E27, 2 Tray, 600 x 400 D
238217 SIDE RACK RH, E27, 3 Tray, 600 x 400 D
238219 SIDE RACK RH, E28, 600 x 400 D
233556 SIDE RACK, E28 D
11
232682 SIDE RACK LH E23 D
234721 SIDE RACK LH E27, 2 Tray D
233558 SIDE RACK LH E27, 3 Tray D
238214 SIDE RACK LH E27, 2 Tray, 600x400 D
238216 SIDE RACK LH, E27, 3 Tray, 600 x 400 D
238218 SIDE RACK LH, E28, 600 x 400 D
12
232879 FAN BAFFLE E23 D
232896 FAN BAFFLE ASSY E27 D
232685 FAN BAFFLE ASSY E28 D
13 233552 THUMBSCREW B
*Recommended Parts Level
RPL Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
