turck TBEN-S2-2RFID-4DXP User Manual

Connection
Connecting digital sensors and actuators
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com
07.00 | 2022/09 | 30

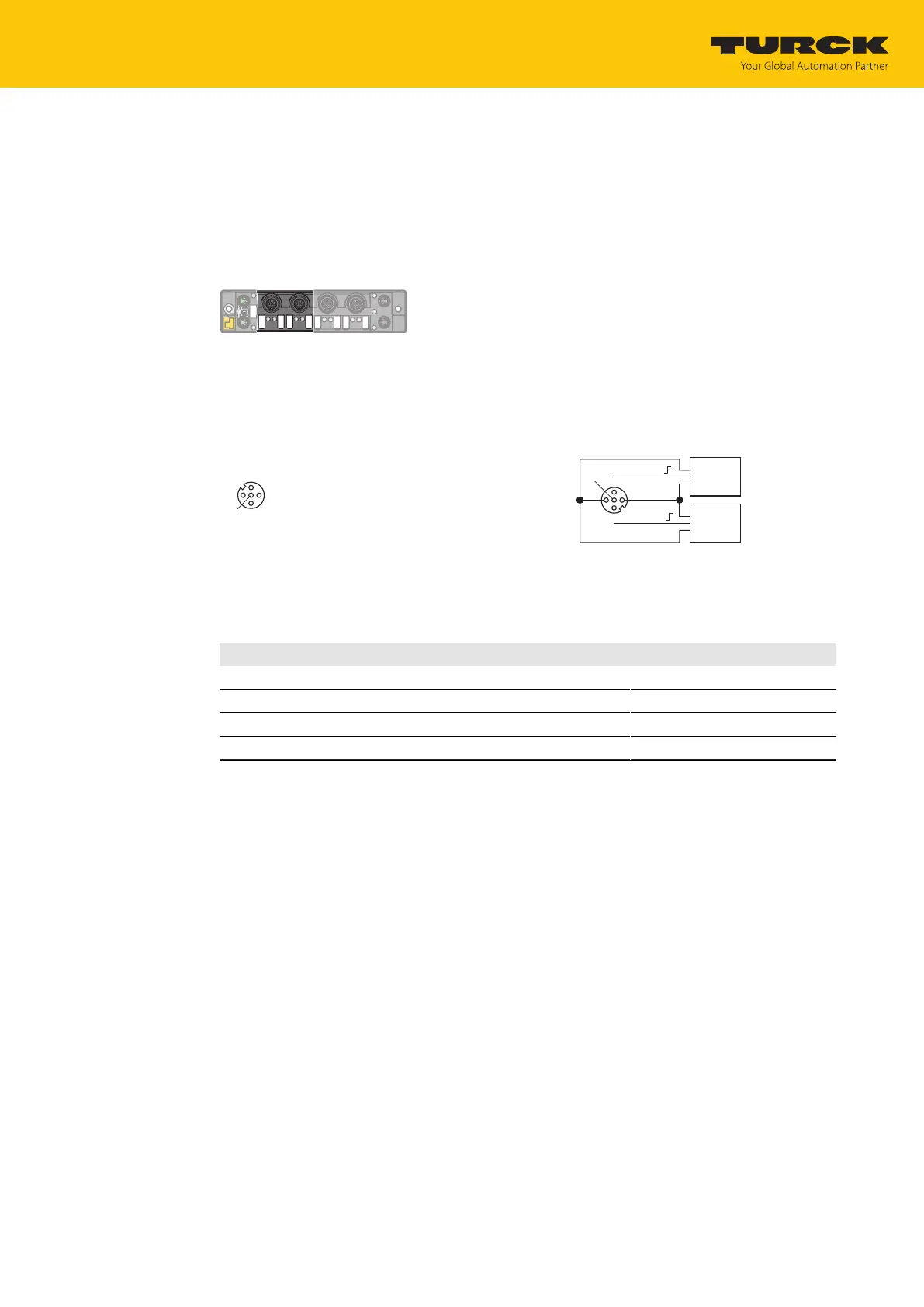

6.5 Connecting digital sensors and actuators
The device has two 5-pin M12 plug connectors for connecting digital sensors and actuators.
Sensors and actuators can be connected to the DXP terminals in the following combinations:
n 2 digital inputs
n 2 digital outputs
n 1 digital input and 1 digital output
Fig.25: M12 male connectors for connecting digital sensors and actuators
 Connect the sensors and actuators to the device as per the pin assignment below.
 Provide unused male connectors with suitable sealing or blanking caps. The tightening
torque for the M4 screws is 0.5 Nm.
4
1
3
2
5
v
1 = V
aux
2
2 = Signal In/Out
3 = GND V2
4 = Signal In/Out
5 = FE
C2...C3
5 FE
4 BK
1 BN +
3 BU –
3 BU –
2 WH
v
C2…C3
Sensor
or
Actuator
Sensor
or
Actuator
Fig.26: Connections for digital sensors and ac-
tuators — pin assignment
Fig.27: Connections for digital sensors and ac-
tuators — wiring diagram
The channels are assigned to the sockets as follows:
Channel Socket Pin
DXP (Ch4) C2 4
DXP (Ch5) C2 2
DXP (Ch6) C3 4
DXP (Ch7) C3 2
