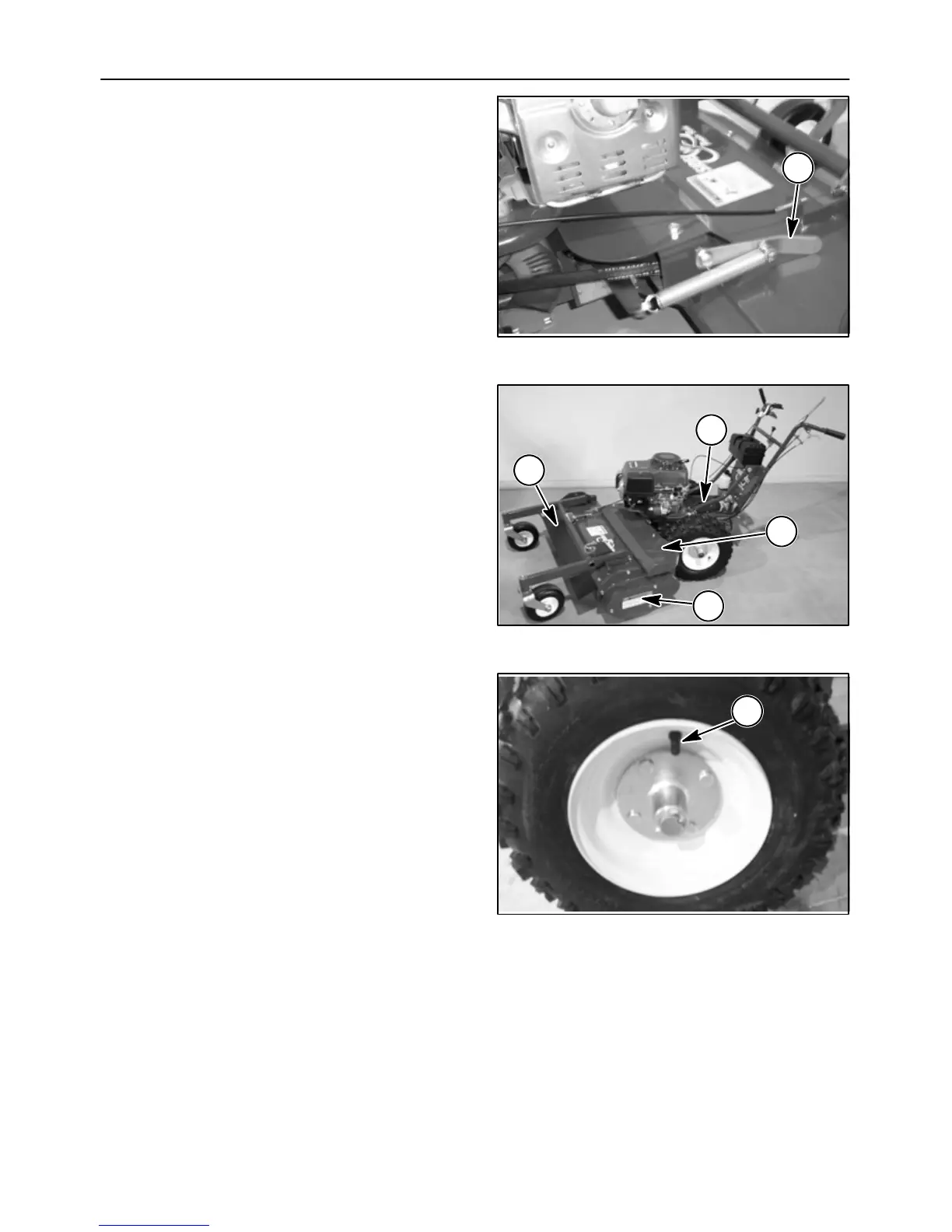

MAIN DRIVE BELT TENSION

1. Check that the main drive belt tension handle is

facing forward as shown

2. Thetension handle,A,mustbepositionedfacing

forward as shown to apply tension to the belt.

3. If the belt slips during operation refer to the

“Maintenance Section” for the procedure to use

to tension the belt.

NOTE : If the tension handle is positioned upward,

the belt is not tensioned. Place the handle in the

forwardpositionbeforeoperatingthePowerRake.or

machine damage may occur.

CHECK THAT ALL SHIELDS ARE

INSTALLED AND ATTACHING HARDWARE

IS TIGHT

1. Check the hydrostatic drive belt shield, A.

2. Check the main drive belt shield, B.

3. Check the drive chain cover, C.

4. Check the rubber dust shield, D.

NOTE: DO NOT OPERATE THE MACHINE WITH

LOOSE OR MISSING SHIELDS. REPLACE MISS-

ING SHIELDS IMMEDIATELY.

CHECK TIRE PRESSURES

Check tire pressures in the two rear tires and inflate

to 14 psi. The tires may have liquid in them so when

checking the tire pressure, the valve stem, A, should

be located at the top as shown.
