ROTOR DRIVE CHAIN ADJUSTMENT
The Main Drive belt delivers power from the engine
to the 90 degree gearbox located on the left side of
the Power Rake frame. The Rotor Drive Chain
delivers power from the 90 degree gearbox to the
rotor.
Chain tension should be checked after the first 40
hoursofoperationthencheck chaintensionever100
hours use or annually whichever comes first.
WARNING: To prevent injury perform the
following before starting work:
1. Position the Power Rake on a flat level hard
surface.
2. Lower the power Rake to the ground.
3. If the power Rake must be raised to perform
work you must place blocking under the
Power Rake frame before doing any work.
4. Allow the machine to cool to ambient
temperature before working on the Power
Rake.
5. Remove the spark plug wire from the spark
plug.

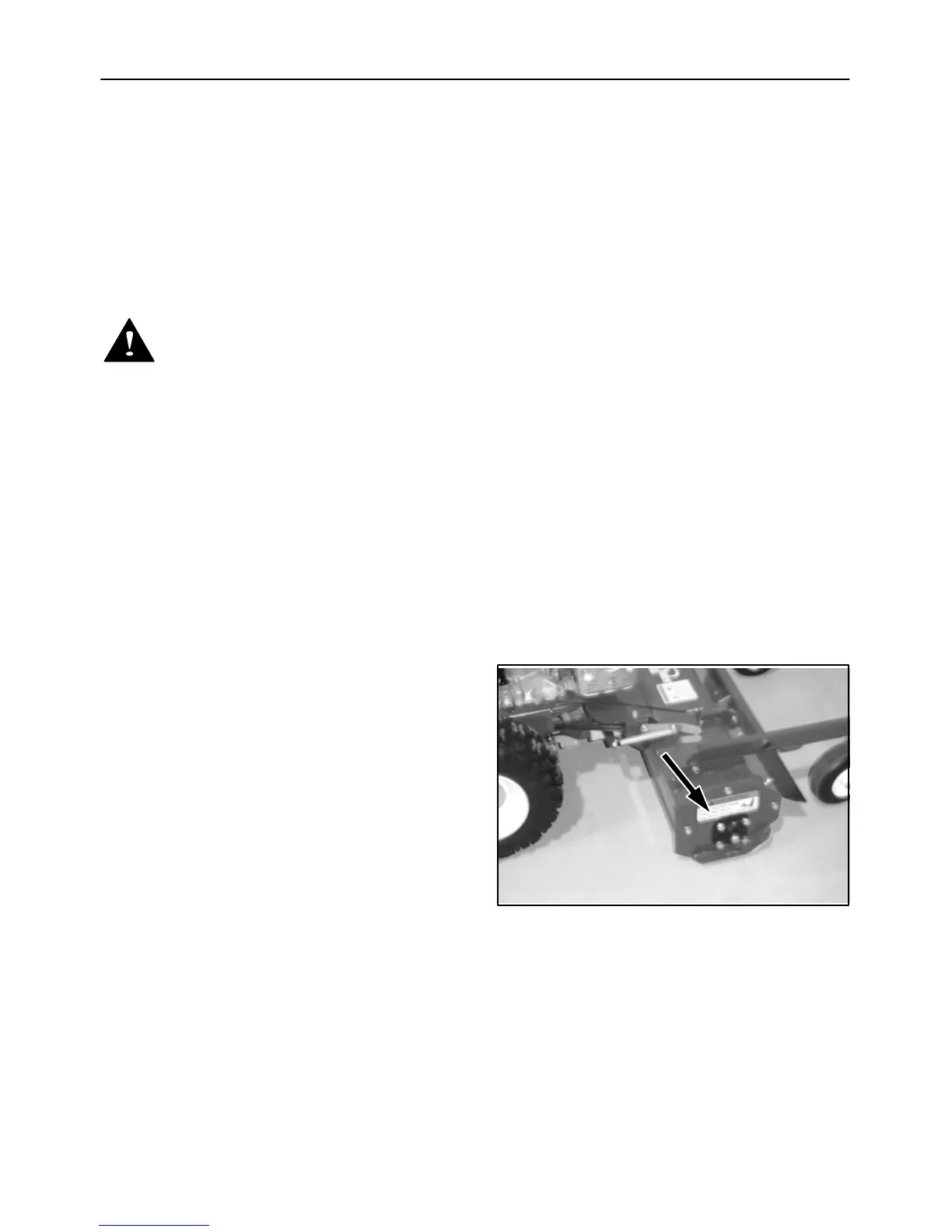

CHECK CHAIN TENSION
1. Lower the Power Rake to the ground.
134
