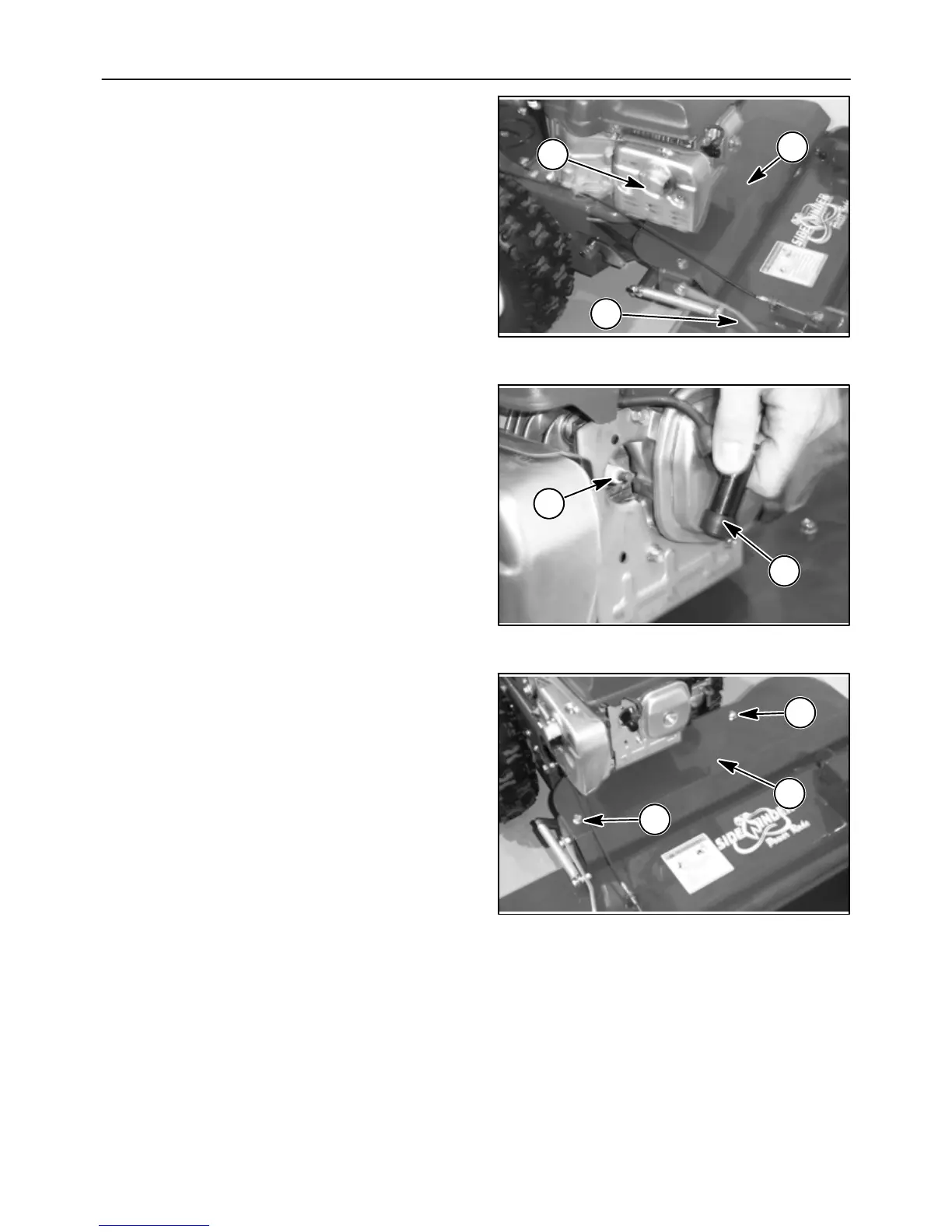

REPLACING THE MAIN DRIVE BELT
Removing the Main Drive Belt
1. Allow the engine and muffler, A, to cool before
attemptingtoworkaroundtheengine, maindrive
belt tension level assembly, B, or to remove the
drive main belt shield, C.
A
B
C
87
2. Remove the spark plug wire, A, from the spark
plug, B.
A
B
88
3. Remove the main drive belt shield, A, by
removing the two attaching bolts, B.
A
B
B
89
