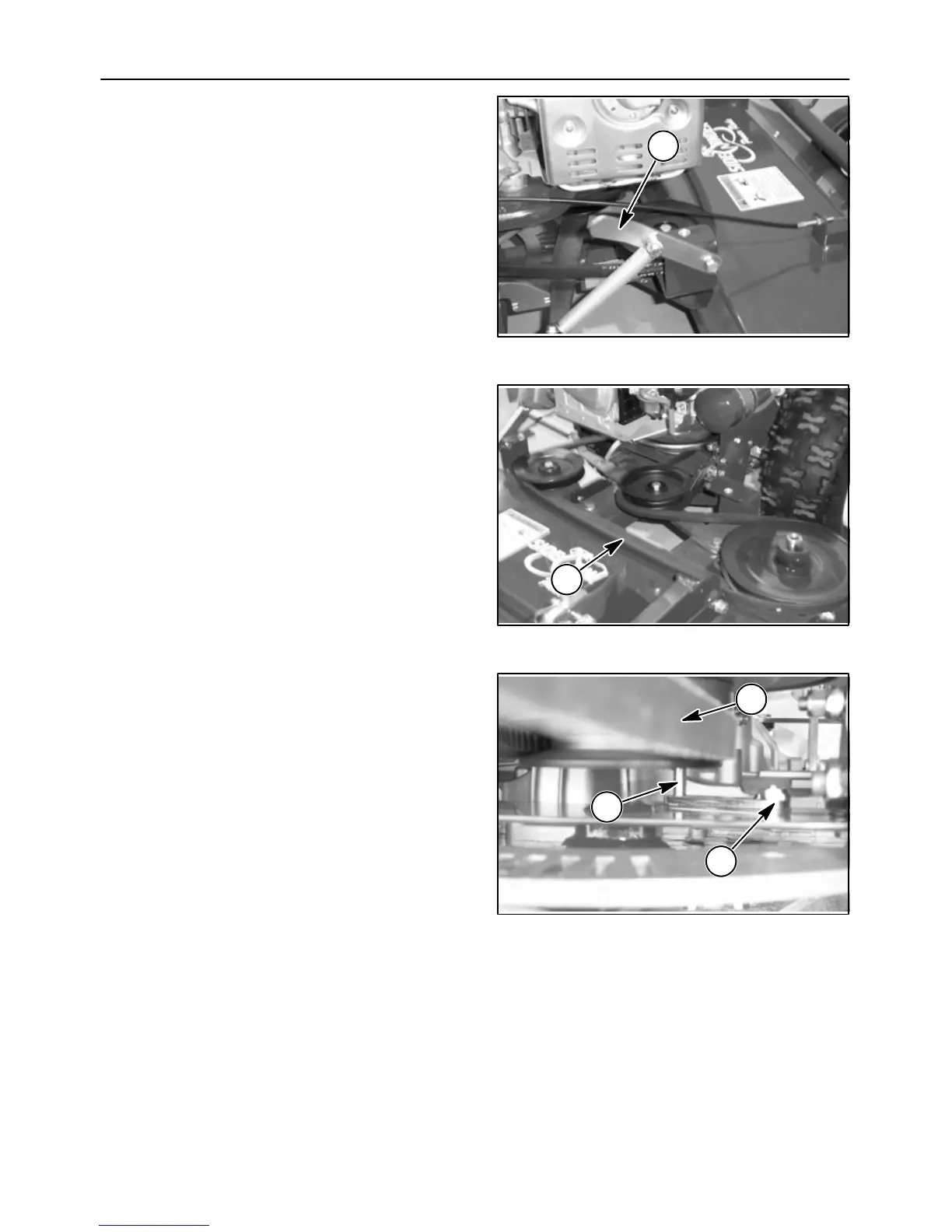

54
4.
Move
the
tension
lever
,
A,
r
earward
to
the
disengaged
position
as
shown.
A
90
5.
Remove
main
drive
belt,
A,
from
the
pulley
s.
A
91
6.
Loosen
the
main
engine
belt
guide
bolt,
A,
then
push
the
guide,
B,
away
from
the
belt,
C.
A
B
C
92
