65

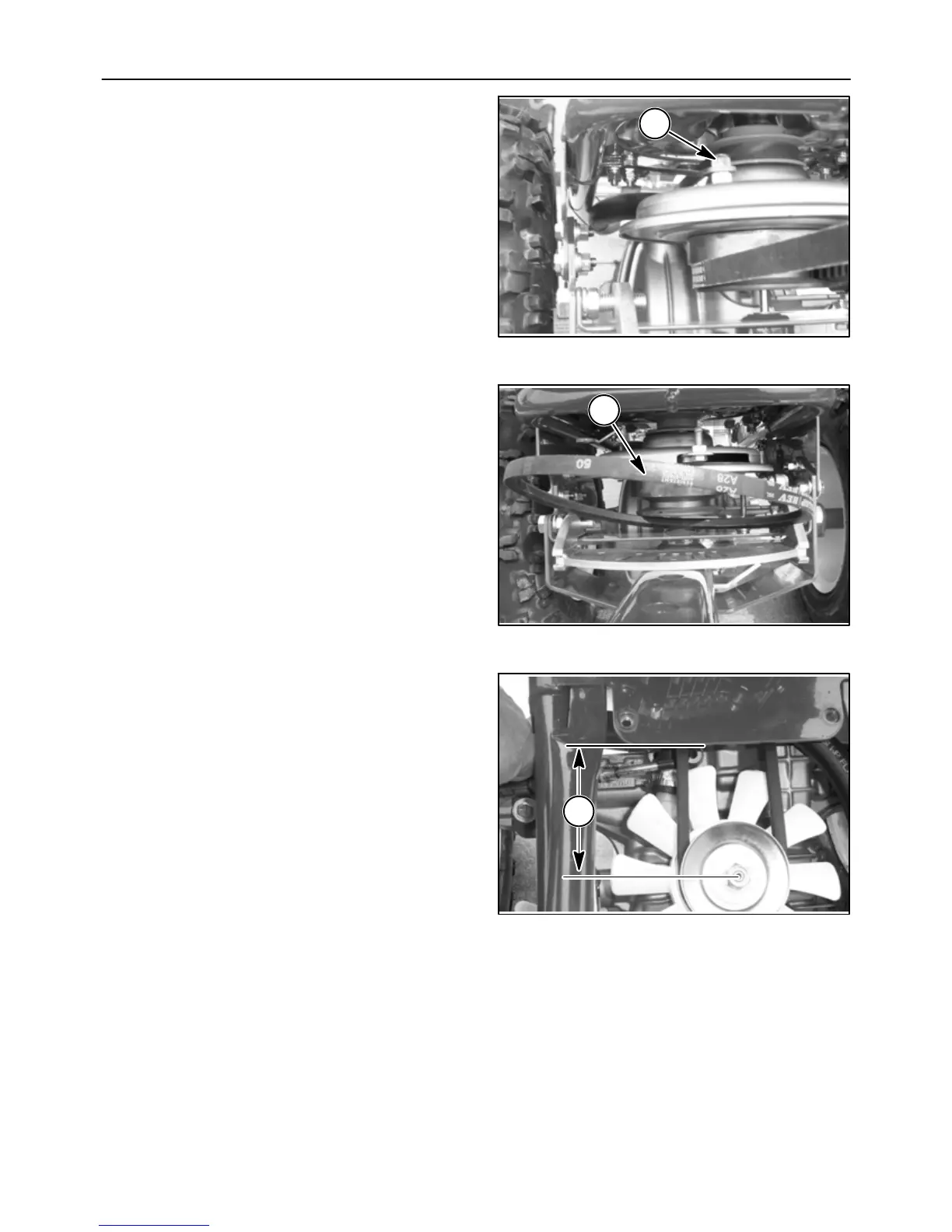

7. Remove nut, A, that hold the clutch brake torque
strap then remove the strap from the stud and
swing the strap toward the frame.
A
119
8. Remove the transmission belt, A, from the
engine and transmission pulleys and from the
tractor as shown.
A
120
9. Adjust dimension at A, from the frame to
centerline of the transmission shaft to 3-5/8 to
3-3/4 inches.
A
121
