> Max Depth with MAX and FT (or M) icons.
> ASC representing max Ascent Rate recorded for 4 seconds.
• Pressing and releasing the S button momentarily (< 2 sec) will access Log Data 2.
• Pressing and releasing the A button momentarily (< 2 sec) will revert to the NORM
(or GAUG) Surface Main screen.
• Depressing the M button for 2 seconds, or if no button is pressed during a 2 minute
period, operation will revert to the NORM (or GAUG) Surface Main screen.
• Pressing the L button will activate the Backlight.
Log Data 2 (only if Nitrox) information includes (Fig. 58):
> Log (book) icon.
> Graphic FO2 (at top) and FO2 Set for Gas 1 for that dive (at bottom).
> O2BG segments representing O2 accumulated at the end of the dive.
> Max PO2 achieved (ATA) with MAX icon and graphic PO2.
> Tank 1 icon representing Gas (mix) 1.
• Pressing and releasing the S button momentarily (< 2 sec) will
access the previous dive's Log Preview screen.
• Pressing and releasing the A button momentarily (< 2 sec)
will revert to the NORM (or GAUG) Surface Main screen.
• Depressing the M button for 2 seconds, or if no button is
pressed during a 2 minute period, operation will revert to the
NORM (or GAUG) Surface Main screen.
• Pressing the L button will activate the Backlight.

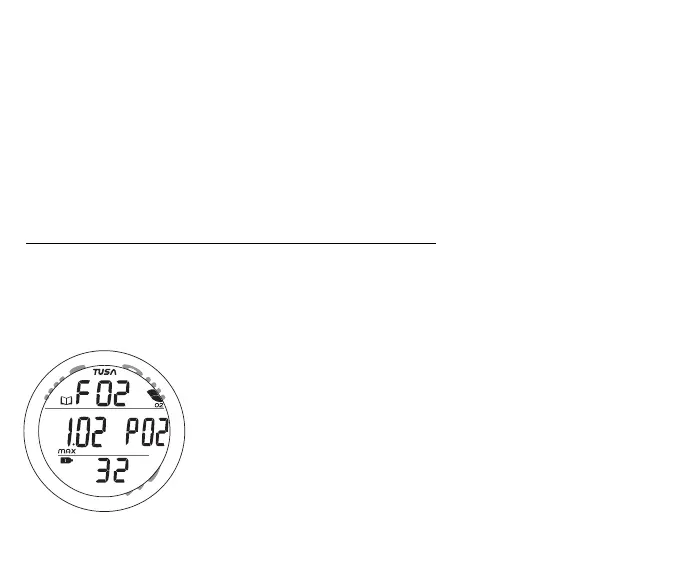

Fig. 58 - LOG DATA 2
